Vertical Multistage Pump

Flow: 6-600m3/h

Head: 20-270m

Power: 1.5-500kw

If you want to get more product information please contact us!

Send E-mail Get Price

Product Introduction
Applicatioms
Actual Pictures

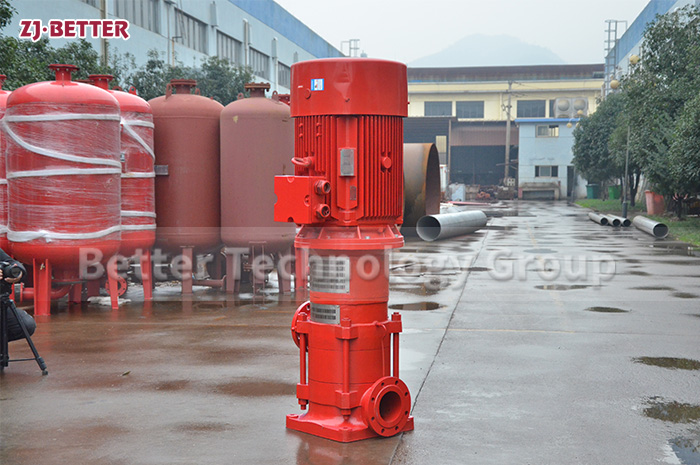

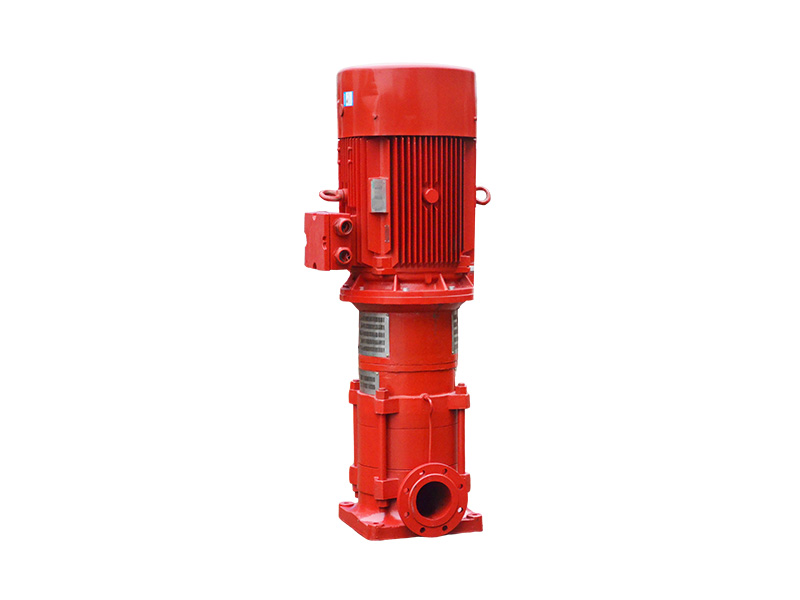

This red vertical multi-stage centrifugal pump features a highly efficient and energy-saving design. Precision-crafted from high-quality cast iron and stainless steel, it boasts a compact structure, smooth operation, low noise levels, and ease of maintenance. The pump body adopts a vertical configuration, minimizing its footprint and facilitating easy installation. Its multi-stage impeller design delivers high head and large flow rates, effectively meeting the stringent water pressure requirements of high-rise buildings, large-scale venues, and similar facilities. With a direct-drive connection between the motor and the pump body, it offers high efficiency and reliable performance, making it an ideal booster device for applications such as fire water supply systems, HVAC circulation, and water treatment.

Key Features:

Striking "Fire Red" finish, complying with visual identification standards for fire safety products

Vertical installation, saving space and suitable for compact equipment room layouts

Multi-stage impeller design, delivering high head and high efficiency

Smooth operation with minimal vibration and low noise levels

Reliable sealing, ensuring a long service life and convenient maintenance

1. Product Applications

This vertical multi-stage centrifugal pump is primarily utilized for pressure boosting and constant-pressure water supply. Its specific applications are as follows:

1. Fire Water Supply Systems: Serves as a pressure-stabilizing pump or main pump for fire hydrant systems and automatic sprinkler systems, providing the high-pressure water source required for firefighting operations.

2. High-Rise Domestic Water Supply: Provides secondary pressurized water supply for high-rise structures—such as residential buildings, office towers, and hotels—thereby resolving issues related to insufficient water pressure at upper levels.

3. Central Air Conditioning Circulation Systems: Functions as a circulation pump for chilled water and cooling water, ensuring the efficient operation of the air conditioning system.

4. Industrial and Municipal Water Supply: Used in scenarios such as boosting process water pressure in factories, landscape irrigation, and long-distance water transmission.

5. Water Treatment Engineering: Serves as a front-end booster pump for reverse osmosis systems and filtration systems.

Installation Method: Vertical installation; the unit is directly secured to a concrete foundation or steel frame. The inlet is typically located at the bottom, while the outlet is positioned on the side or at the top. When paired with pressure sensors and a control cabinet, the system can achieve fully automated operation.

2. Applicable Locations (Installation Sites)

High-rise residential buildings, apartments, and villa complexes

Commercial office buildings, hotels, shopping malls, hospitals, and schools

Large-scale venues, sports stadiums, airports, and railway stations

Industrial plants, warehouses, and data centers

Municipal water supply pumping stations and fire pump rooms

Underground parking garages and water treatment plants
