Flow-mixing Mobile Pump Truck

Flow:: 25-10000gpm

Head:: <25bar

Speed:: 1500-1800 rpm

Frequency:: 50hz or 60hz

If you want to get more product information please contact us!

  • Product Description

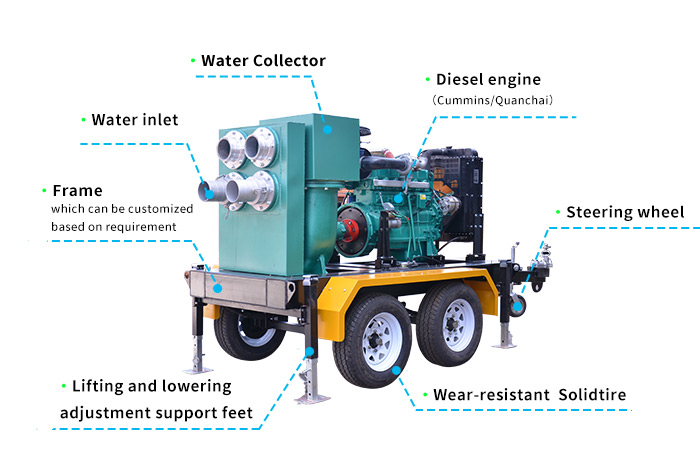

  • Structure
  • Productat Feures
  • Technical Data
A mobile pump truck, also known as a mobile pump unit or mobile pump system, is a specialized vehicle or equipment designed for the purpose of pumping and transporting various types of liquids or fluids. These vehicles are commonly used in a wide range of industries, including construction, agriculture, mining, oil and gas, and municipal services. They provide a convenient and flexible way to transfer liquids from one location to another.

 Key features and components of a mobile pump truck may include:
  1. Pumping Equipment: Mobile pump trucks are equipped with pumps that can handle a variety of liquids, such as water, chemicals, slurry, sewage, or concrete. The type of pump used depends on the specific application.

  2. Storage Tanks: Some mobile pump trucks have integrated storage tanks to hold the liquid they are pumping. This allows for the transportation of a larger quantity of fluid.

  3. Hose and Pipeline Systems: These vehicles are typically equipped with hoses, pipelines, and connectors to transfer the liquid from the source to the destination. The length and diameter of the hoses can vary based on the intended use.

  4. Power Source: Mobile pump trucks are powered by engines, which can be diesel, gasoline, or electric, depending on the application. The engine provides the necessary power to drive the pump and other hydraulic systems.

  5. Mobility: These vehicles are designed to be mobile and can be moved easily to different locations. They often have wheels or are mounted on a truck chassis for easy transportation.

  6. Control Systems: Mobile pump trucks are operated by skilled personnel who use control panels or remote systems to manage the flow and pressure of the pumped liquid.


Name Flow-mixing Mobile Pump Truck Brand BETTER
Type weather-proof and trailer type Model HW
Max Capacity can be customized Max Suction Head can be customized
Inlet/Outlet DN200 Move mode Two/Four-wheel
Driving speed According to the performance of the pump Engine Power 50-575KW
Engine Speed According to the performance of the pump Fuel Tank Capacity 120-1000L
Suction Pipe 6m Discarge Pipe 20m
Rainproof Enclosure 2mm Galvanized steel plate with polyester powder coated
