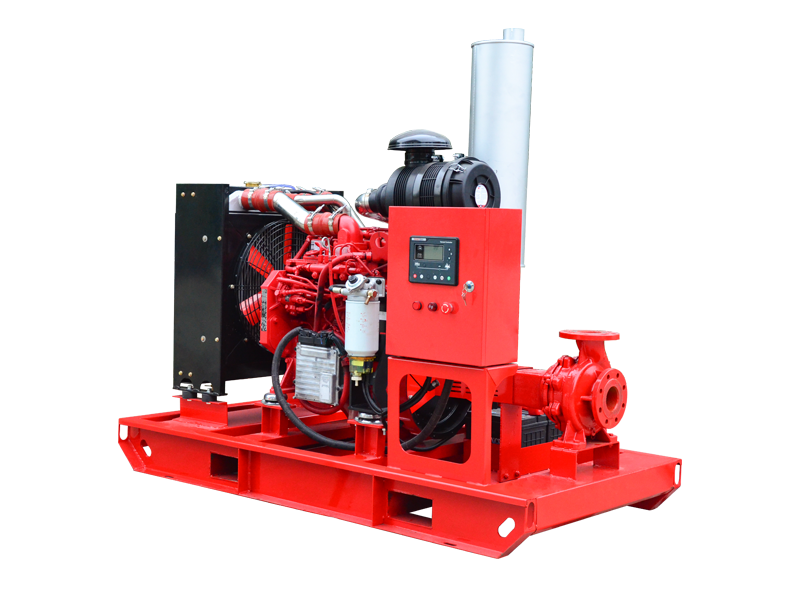

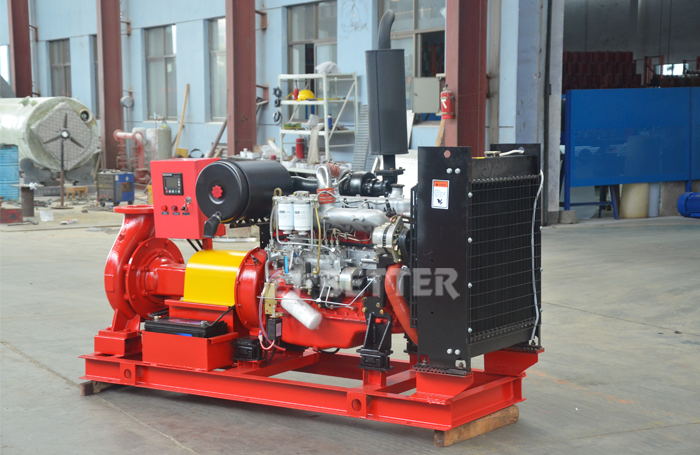

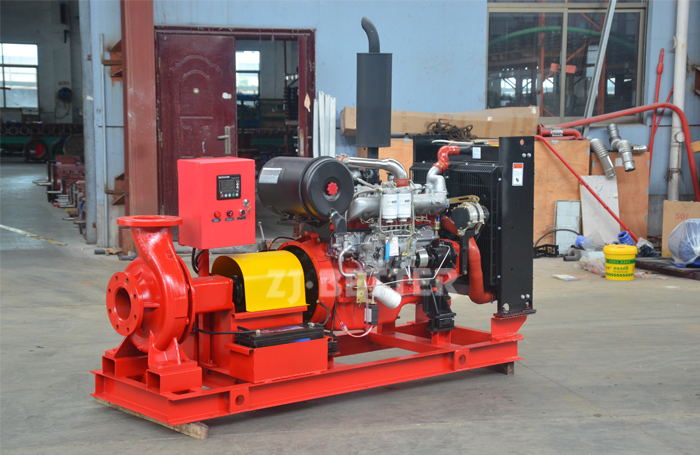

XBC-IS Diesel End Suction Fire Pumps
Flow: 80.0-2500 gpm / 5-158 l/s
Head: 2-16 bar / 29-232 psi
Caliber: 50-250mm
Power: 3-220kW
Speed: 1500-2600r/min
Working Pressure: 1.6-2.5 MPa
If you want to get more product information please contact us!
Product Introduction of XBC-IS series Diesel Fire Pump
XBC-IS Diesel End Suction Fire Pumps is a new generation of energy saving, environment friendly horizontal centrifugal pump researched and developed by our company, which absorbs advanced technology of similar products abroad and adopts domestic general performance parameters of centrifugal pumps.
In addition, according to different operation temperatures and mediums, we developed the hot-water pump(ISWR), corrosion-resistant chemical pump(ISWH) and oil pump (ISWB). This pump enjoys excellent performance, good reliability, long operation life, reasonable construction and nice appearance, which is outstanding in the industry.
Application Scope
1-- Applicable for the XBC series Diesel Fire Pump control made in this Co., and also for the diesel engine fire-fighting pump and diesel generator controls of users.
2-- It is applicable for water supply for fire service and emergency water supply.
3-- Suitable for the fire-fighting water supply and emergency water supply in storehouse, yard, airport, petroleum and chemical industry, power plant liquefied gas, textile, ship, and oil ship etc. occasions.
Using Instruction
1. The height of the machine room should be depended on the equipment’s height and the lifting apparatus, 3-5m ad the effective height in general.
2. To ensure a good ventilation inside of the machine room, the temperature there should not be over 40°C and enough venting temperature holes must be set.
3. When to mount both inlet and outlet pipes of the fire-fighting pump, do not let their weight loading on the pump so as to prevent it against damage and its performance of running from being affected.
4. It is not allowed to mount the control cabinet in the front of the diesel engine’s radiator, otherwise the electric components inside of the cabinet would be affected and not work normally.
Model | Flow(m3/h) | Head(mpa) | Power(kw) | Speed (rpm) | Caliber (mm) |
XBC2/5-IS | 2600 | 5 | 0.2 | 3 | 65/65 |
XBC8/5-IS | 2000 | 5 | 0.8 | 7.5 | 50/50 |
XBC6/10-IS | 2000 | 10 | 0.6 | 22 | 100/100 |
XBC3/15-IS | 2600 | 15 | 0.3 | 11 | 80/80 |
XBC10/15-TSWA | 1500 | 15 | 1 | 37 | 100/100 |
XBC5/20-IS | 2000 | 20 | 0.5 | 22 | 125/125 |
XBC8/20-DA | 1500 | 20 | 0.8 | 30 | 100/100 |
XBC2.0/25(30)-D | 1500 | 25/30 | 0.2 | 11 | 125/125 |
XBC9.0/25(30)-D | 1500 | 25/30 | 0.9 | 55 | 125/125 |
XBC14.0/25(30)-D | 1500 | 25/30 | 1.4 | 75 | 125/125 |
XBC8/35(40/45)-DA | 1500 | 35/40/45 | 0.8 | 75 | 150/150 |
XBC21.0/35(40/45)-DA | 1500 | 35/40/45 | 2.1 | 160 | 150/150 |
XBC2/50(55/60)-W | 1500 | 50/55/60 | 0.2 | 18.5 | 150/150 |
XBC15/50(55/60)-D | 1500 | 50/55/60 | 1.5 | 132 | 150/150 |
XBC5/80(85/90)-W | 1500 | 80/85/90 | 0.5 | 75 | 200/200 |
XBC8/80(85/90)-W | 1500 | 80/85/90 | 0.8 | 90 | 200/200 |
XBC1.6/80(85/90)-W | 1500 | 80/85/90 | 1.6 | 200 | 200/200 |
XBC2/100(110/120)-W | 1500 | 100/110/120 | 0.2 | 45 | 250/250 |
XBC6/100(110/120)-W | 1500 | 100/110/120 | 0.6 | 110 | 200/200 |
XBC13/100(110/120)-W | 1500 | 100/110/120 | 1.3 | 220 | 250/250 |
XBC5(6)/100(110/120)-S | 1500 | 100/110/120 | 0.5 | 132 | 250/150 |
XBC6(7/8)/180(190/200)-S | 1500 | 180/190/200 | 0.6 | 315 | 250/150 |
XBC5/250-S | 1500 | 250 | 0.5 | 220 | 250/200 |
XBC7/300-S | 1500 | 300 | 0.7 | 315 | 300/250 |
XBC10/300-S | 1500 | 300 | 1 | 630 | 350/250 |
XBC7/350-S | 1500 | 350 | 0.7 | 355 | 300/250 |
XBC12/350-S | 1500 | 350 | 1.2 | 710 | 350/250 |
MORE SPECIFICATIONS PLEASE CONTACT US. |
