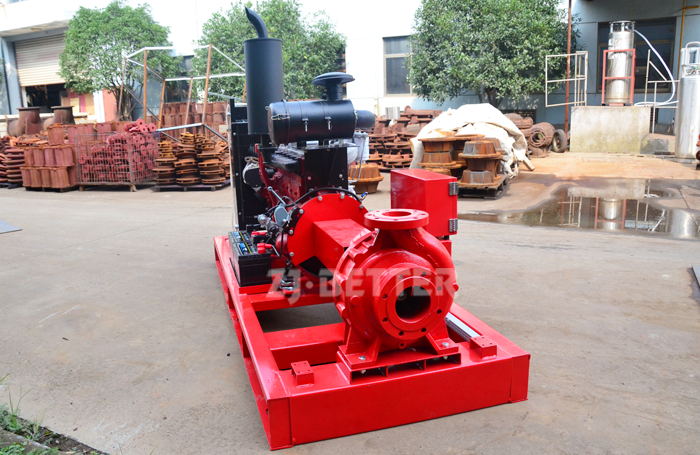

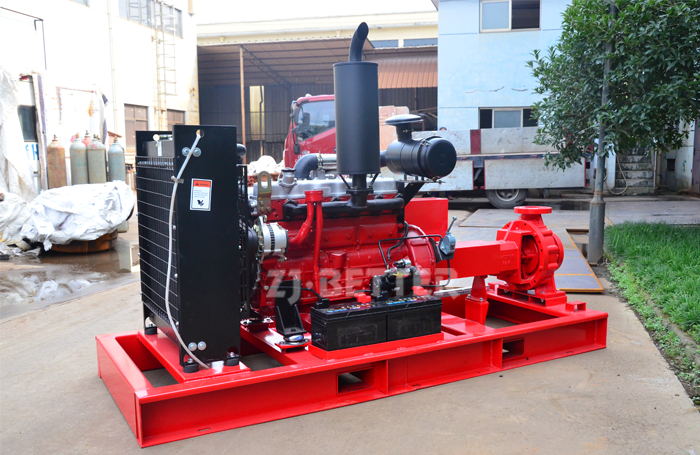

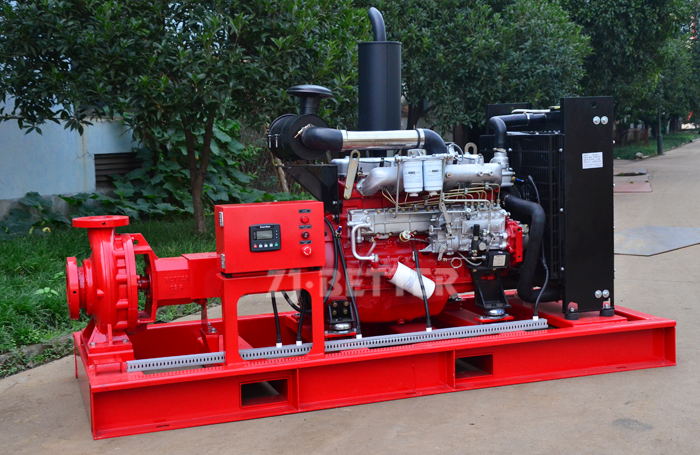

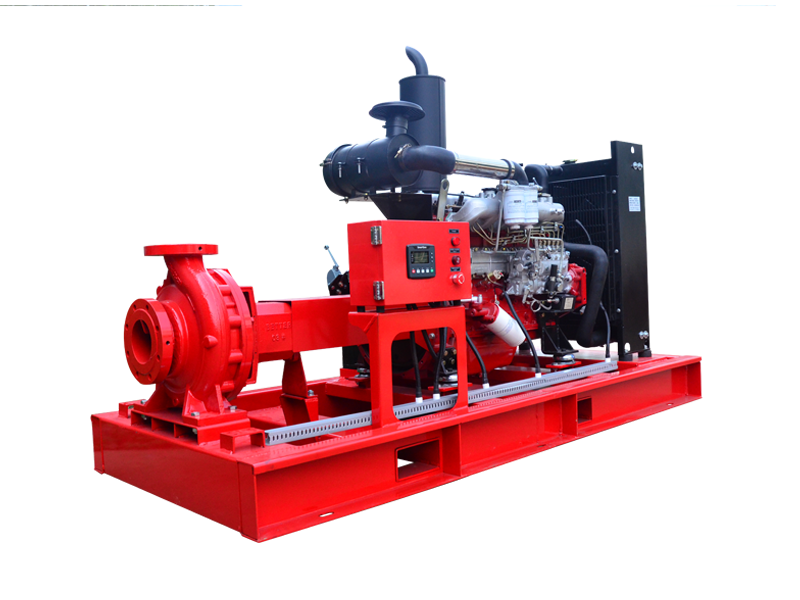

XBC-ISO Diesel Fire Fighting Pump
If you want to get more product information please contact us!
As a fire-fighting latest equipment, XBC diesel engine fire-fighting pump group series are developed successfully, strictly complying with national standard GB6245-2006, The Performance Requirement and Testing Method of Fire Fighting Pumps and with NFPA20, Installation of Centrifugal Fire-fighting Pumps.
Classified by coupled pump head types (single stage single suction type, single stage double suction type, multi-section multistage type), this equipment can fall into three sub-categories: XBC-IS, XBC-S and XBC-D. The equipment is widely used in many occasions.
This equipment can use high quality diesel engines from domestic market or foreign countries, so it is the fire protection equipment with advantages as follows, stable start, high capacity, compact structure, easy maintenance, high automation and advanced and dependable performance.
.jpg)
.jpg)
.jpg)
Product Features
> Automatic starting: diesel engine pump will start operating by internal automatic starter and running at capacity when it received/power/fire/pipe network pressure or other start signal.
> Auto-recharge for battery: Each diesel engine pump has a 12V / 24V battery. When the power is low, the auto charger will charge the battery by itself.
> Automatic alarm: when diesel engine low oil pressure, high temperature, fault, overspeed.... the automatic alarm will display and stop the diesel engine.
> Automatic preheating: make diesel engine be always ready, ensure emergency work.
> Direct coupled type: the diesel engine and pump use flexible coupling connection technology, directly reduce failure rate, and greatly reduces the starting time, increase the reliability of the unit and emergency performance.
> Wide application range: the diesel fire pump can be equip with electric fire pump or jockey fire pump directly. It needn't to re-design.
> Customizable controller: Users can also request other alarm output, remote sensing, remote communication, remote control functions, etc.
> Auto-recharge for battery: Each diesel engine pump has a 12V / 24V battery. When the power is low, the auto charger will charge the battery by itself.
> Automatic alarm: when diesel engine low oil pressure, high temperature, fault, overspeed.... the automatic alarm will display and stop the diesel engine.
> Automatic preheating: make diesel engine be always ready, ensure emergency work.
> Direct coupled type: the diesel engine and pump use flexible coupling connection technology, directly reduce failure rate, and greatly reduces the starting time, increase the reliability of the unit and emergency performance.
> Wide application range: the diesel fire pump can be equip with electric fire pump or jockey fire pump directly. It needn't to re-design.
> Customizable controller: Users can also request other alarm output, remote sensing, remote communication, remote control functions, etc.
Widely used for warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers and other occasions of a fire service.
.jpg)
| Model | Flow(m3/h) | Head(mpa) | Power(kw) | Speed (rpm) | Caliber (mm) |
| XBC2/5-IS | 2600 | 5 | 0.2 | 3 | 65/65 |
| XBC8/5-IS | 2000 | 5 | 0.8 | 7.5 | 50/50 |
| XBC6/10-IS | 2000 | 10 | 0.6 | 22 | 100/100 |
| XBC3/15-IS | 2600 | 15 | 0.3 | 11 | 80/80 |
| XBC10/15-TSWA | 1500 | 15 | 1 | 37 | 100/100 |
| XBC5/20-IS | 2000 | 20 | 0.5 | 22 | 125/125 |
| XBC8/20-DA | 1500 | 20 | 0.8 | 30 | 100/100 |
| XBC2.0/25(30)-D | 1500 | 25/30 | 0.2 | 11 | 125/125 |
| XBC9.0/25(30)-D | 1500 | 25/30 | 0.9 | 55 | 125/125 |
| XBC14.0/25(30)-D | 1500 | 25/30 | 1.4 | 75 | 125/125 |
| XBC8/35(40/45)-DA | 1500 | 35/40/45 | 0.8 | 75 | 150/150 |
| XBC21.0/35(40/45)-DA | 1500 | 35/40/45 | 2.1 | 160 | 150/150 |
| XBC2/50(55/60)-W | 1500 | 50/55/60 | 0.2 | 18.5 | 150/150 |
| XBC15/50(55/60)-D | 1500 | 50/55/60 | 1.5 | 132 | 150/150 |
| XBC5/80(85/90)-W | 1500 | 80/85/90 | 0.5 | 75 | 200/200 |
| XBC8/80(85/90)-W | 1500 | 80/85/90 | 0.8 | 90 | 200/200 |
| XBC1.6/80(85/90)-W | 1500 | 80/85/90 | 1.6 | 200 | 200/200 |
| XBC2/100(110/120)-W | 1500 | 100/110/120 | 0.2 | 45 | 250/250 |
| XBC6/100(110/120)-W | 1500 | 100/110/120 | 0.6 | 110 | 200/200 |
| XBC13/100(110/120)-W | 1500 | 100/110/120 | 1.3 | 220 | 250/250 |
| XBC5(6)/100(110/120)-S | 1500 | 100/110/120 | 0.5 | 132 | 250/150 |
| XBC6(7/8)/180(190/200)-S | 1500 | 180/190/200 | 0.6 | 315 | 250/150 |
| XBC5/250-S | 1500 | 250 | 0.5 | 220 | 250/200 |
| XBC7/300-S | 1500 | 300 | 0.7 | 315 | 300/250 |
| XBC10/300-S | 1500 | 300 | 1 | 630 | 350/250 |
| XBC7/350-S | 1500 | 350 | 0.7 | 355 | 300/250 |
| XBC12/350-S | 1500 | 350 | 1.2 | 710 | 350/250 |
| MORE SPECIFICATIONS PLEASE CONTACT US. | |||||
