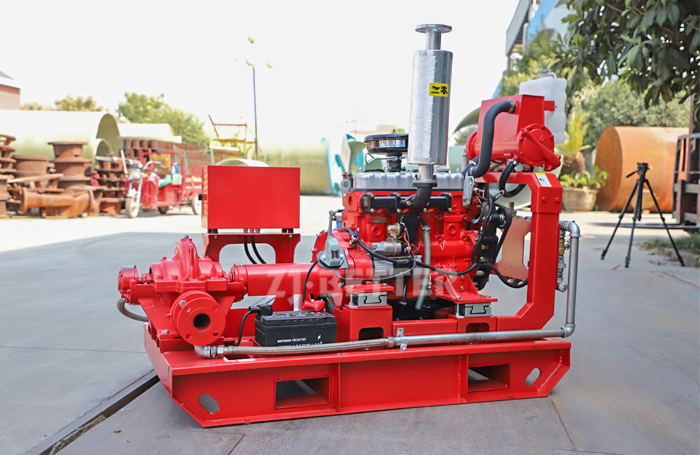

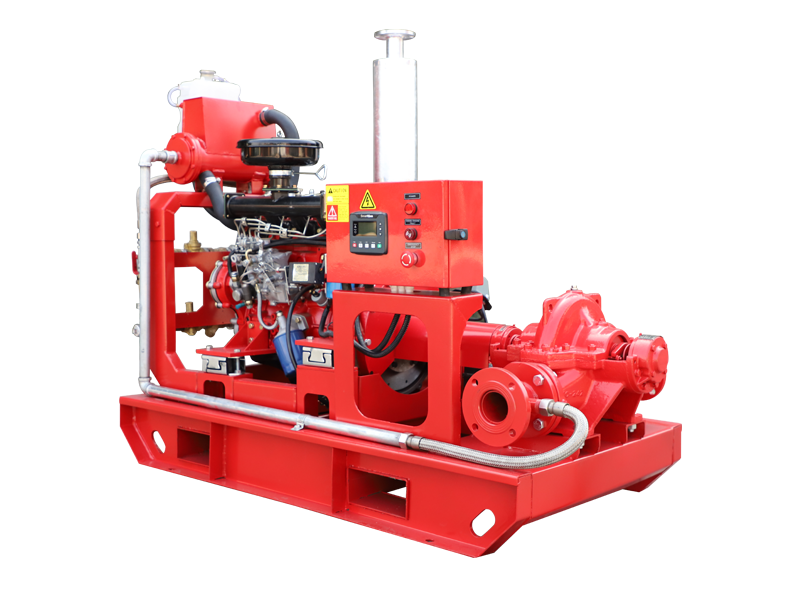

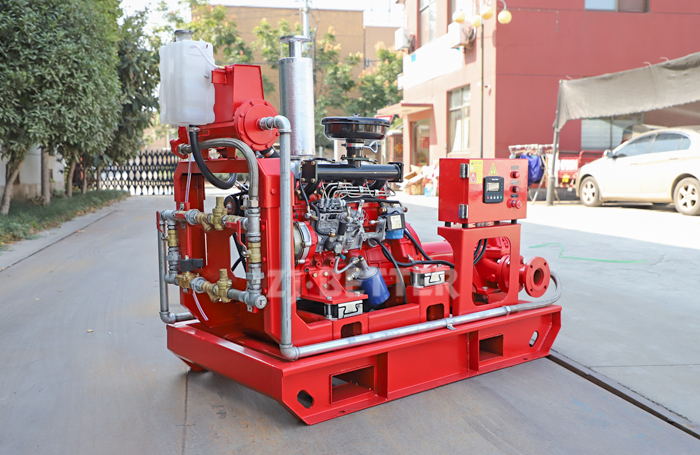

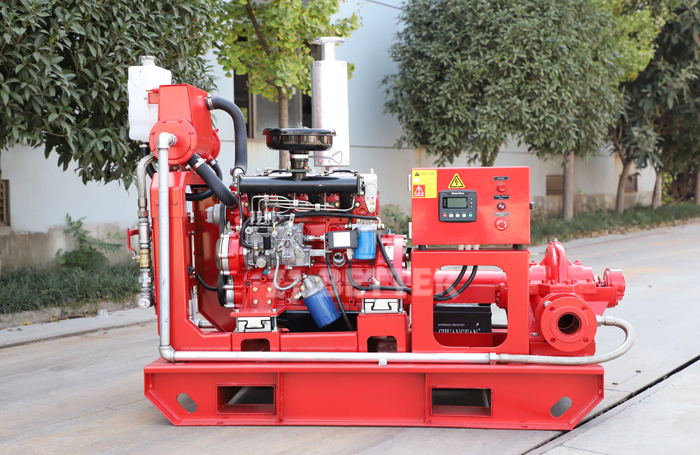

XBC-S Diesel Engine Split Case Fire Pump

Flow: 1500-6000 gpm / 63-380l/s

Head: 5-12 bar / 72.5-174 psi

Caliber: 150-350mm

Power: 220-710kW

Speed: 1500r/min

Working Pressure: 1.6MPa

If you want to get more product information please contact us!

  • Product Introduction
  • Structure
  • Applications
  • Technical Data

FEATURES

1. Split case design permits easy dis-assembly, that is, inspection is simplified, it is not necessary to disturb pump alignment and suction & discharge piping when parts replacement is necessary.
2. Double suction with advanced design of suction performance ensures high suction lift even with large capacity.
3. Pump operation with low noise and stability, in use ensure comfortable environment. Variable combination of materials permit wide application.
4. Drive shaft end of the pump optionally on the left or right. Shaft seal uncooled soft- packed stuffing box or uncooled single acting unbalanced mechanical seal, etc.







APPLICATION RANGE

Capacity: Approx 75- 22000 m3 /hr.
Total head: Approx 10-220 m.

Liquid: Fresh water/ Industries/River water/Sea water/Brine/Paper stock Hydro-carbon etc.

 1. Application Scope
1-- Applicable for the XBC series diesel engine fire-fighting pump control made in this Co., and also for the diesel engine fire-fighting pump and diesel generator controls of users.
2-- It is applicable for water supply for fire service and emergency water supply.
3-- Suitable for the fire-fighting water supply and emergency water supply in storehouse, yard, airport, petroleum and chemical industry, power plant liquefied gas, textile, ship, and oil ship etc. occasions.

2. Using Instruction
1. The height of the machine room should be depended on the equipment’s height and the lifting apparatus, 3-5m ad the effective height in general.
2. To ensure a good ventilation inside of the machine room, the temperature there should not be over 40°C and enough venting temperature holes must be set.
3. When to mount both inlet and outlet pipes of the fire-fighting pump, do not let their weight loading on the pump so as to prevent it against damage and its performance of running from being affected.
4. It is not allowed to mount the control cabinet in the front of the diesel engine’s radiator, otherwise the electric components inside of the cabinet would be affected and not work normally.

Model Flow(m3/h) Head(mpa) Power(kw) Speed (rpm) Caliber (mm)
XBC2/5-IS 2600 5 0.2 3 65/65
XBC8/5-IS 2000 5 0.8 7.5 50/50
XBC6/10-IS 2000 10 0.6 22 100/100
XBC3/15-IS 2600 15 0.3 11 80/80
XBC10/15-TSWA 1500 15 1 37 100/100
XBC5/20-IS 2000 20 0.5 22 125/125
XBC8/20-DA 1500 20 0.8 30 100/100
XBC2.0/25(30)-D 1500 25/30 0.2 11 125/125
XBC9.0/25(30)-D 1500 25/30 0.9 55 125/125
XBC14.0/25(30)-D 1500 25/30 1.4 75 125/125
XBC8/35(40/45)-DA 1500 35/40/45 0.8 75 150/150
XBC21.0/35(40/45)-DA 1500 35/40/45 2.1 160 150/150
XBC2/50(55/60)-W 1500 50/55/60 0.2 18.5 150/150
XBC15/50(55/60)-D 1500 50/55/60 1.5 132 150/150
XBC5/80(85/90)-W 1500 80/85/90 0.5 75 200/200
XBC8/80(85/90)-W 1500 80/85/90 0.8 90 200/200
XBC1.6/80(85/90)-W 1500 80/85/90 1.6 200 200/200
XBC2/100(110/120)-W 1500 100/110/120 0.2 45 250/250
XBC6/100(110/120)-W 1500 100/110/120 0.6 110 200/200
XBC13/100(110/120)-W 1500 100/110/120 1.3 220 250/250
XBC5(6)/100(110/120)-S 1500 100/110/120 0.5 132 250/150
XBC6(7/8)/180(190/200)-S 1500 180/190/200 0.6 315 250/150
XBC5/250-S 1500 250 0.5 220 250/200
XBC7/300-S 1500 300 0.7 315 300/250
XBC10/300-S 1500 300 1 630 350/250
XBC7/350-S 1500 350 0.7 355 300/250
XBC12/350-S 1500 350 1.2 710 350/250
MORE SPECIFICATIONS PLEASE CONTACT US.
