Electric Motor Fire Pump Set

Flow: 25-100gpm

Head: 3-25Bar

Power: 3-20KW

Frequency: 50 Hz or 60 Hz

If you want to get more product information please contact us!

  • Product Introduction
  • Technical Data
  • Applications
  • Actual Pictures

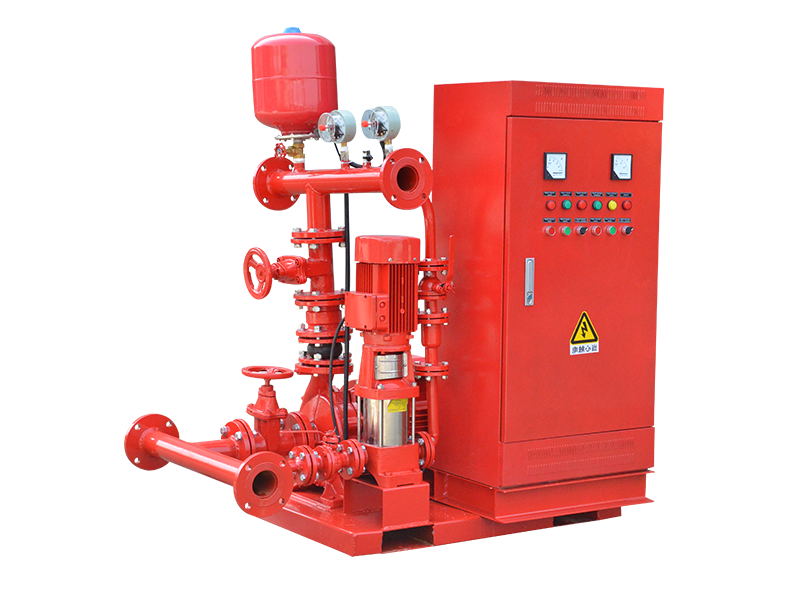

EJ fire pump set (Electric pump+Jockey pump)

EJ Fire pump system includes one electri pump with a jockey pump mounted on a skid.

Operation: 1 Duty (electric) + 1 Jockey

Capacity: 30, 50, 100, 150, 200, 300, 400, 500, 750, 1000...GPM with pressure 4, 5, 6, 8, 10... Bar.

Pressure vessel 25, 50, 75, 100...liters, pressure will be 0.6mpa, 1.0mpa, 1.6mpa, select according to pump head.

Types of pumps
 used for fire service include: end suction, horizontal split case, vertical split case, vertical inline and vertical turbines.

1. Electric motor driven pump, can use single stage pump, horizontal split case pump, end suction pump, multistage pump, material can be cast iron, stainless steel, and bronze impeller
2. Jockey pump, horizontal or vertical, capacity will be small, but head should be higher than electric and diesel engine pump
3. Control panel: Auto Control of electric pump, diesel engine pump and Jockey Pump with overload, over current protection.
4. Accessories: check valve, gate valve, pressure vessel, generally 0.6mpa, 1.0mpa, 1.6mpa, Pressure Gauge, Pressure Sensor, Common Pipe for Suction and Discharge, Flexible Joints and Flanges, Common Base plant.

electric fire pump structure
Model Fire Pump Jockey pump
Flow Head Pressure Model Head Power
M3/h GPM bar Pis bar kw
EJ25/3 5.6 25 3 44 CDL2-5 3.7 0.55
EJ25/4 5.6 25 4 58 CDL2-6 4.5 0.75
EJ25/5 5.6 25 5 73 CDL2-7 5.2 0.75
EJ25/6 5.6 25 6 87 CDL2-9 6.7 1.1
EJ25/7 5.6 25 7 102 CDL2-10 7.5 1.1
EJ25/8 5.6 25 8 116 CDL2-12 9 1.5
EJ25/9 5.6 25 9 131 CDL2-13 9.7 1.5
EJ25/10 5.6 25 10 145 CDL2-14 10.5 1.5
EJ25/11 5.6 25 11 160 CDL2-15 11.2 1.5
EJ25/12 5.6 25 12 174 CDL2-17 12.7 2.2
EJ30/3 6.9 30 3 44 CDL2-5 3.7 0.55
EJ30/4 6.9 30 4 58 CDL2-6 4.5 0.75
EJ30/5 6.9 30 5 73 CDL2-7 5.2 0.75
EJ30/6 6.9 30 6 87 CDL2-9 6.7 1.1
EJ30/7 6.9 30 7 102 CDL2-10 7.5 1.1
EJ30/8 6.9 30 8 116 CDL2-12 9 1.5
EJ30/9 6.9 30 9 131 CDL2-13 9.7 1.5
EJ30/10 6.9 30 10 145 CDL2-14 10.5 1.5
EJ30/11 6.9 30 11 160 CDL2-15 11.2 1.5
EJ30/12 6.9 30 12 174 CDL2-17 12.7 2.2
EJ100/10 22.7 100 10 145 CDL2-14 10.5 1.5
EJ100/11 22.7 100 11 160 CDL2-15 11.2 1.5
EJ100/12 22.7 100 12 174 CDL2-17 12.7 2.2




Model Fire Pump Jockey pump
Flow Head Pressure Model Head Power
M3/h GPM bar Pis bar kw
EJ25/3 5.6 25 3 44 CDL2-5 3.7 0.55
EJ25/4 5.6 25 4 58 CDL2-6 4.5 0.75
EJ25/5 5.6 25 5 73 CDL2-7 5.2 0.75
EJ25/6 5.6 25 6 87 CDL2-9 6.7 1.1
EJ25/7 5.6 25 7 102 CDL2-10 7.5 1.1
EJ25/8 5.6 25 8 116 CDL2-12 9 1.5
EJ25/9 5.6 25 9 131 CDL2-13 9.7 1.5
EJ25/10 5.6 25 10 145 CDL2-14 10.5 1.5
EJ25/11 5.6 25 11 160 CDL2-15 11.2 1.5
EJ25/12 5.6 25 12 174 CDL2-17 12.7 2.2
EJ30/3 6.9 30 3 44 CDL2-5 3.7 0.55
EJ30/4 6.9 30 4 58 CDL2-6 4.5 0.75
EJ30/5 6.9 30 5 73 CDL2-7 5.2 0.75
EJ30/6 6.9 30 6 87 CDL2-9 6.7 1.1
EJ30/7 6.9 30 7 102 CDL2-10 7.5 1.1
EJ30/8 6.9 30 8 116 CDL2-12 9 1.5
EJ30/9 6.9 30 9 131 CDL2-13 9.7 1.5
EJ30/10 6.9 30 10 145 CDL2-14 10.5 1.5
EJ30/11 6.9 30 11 160 CDL2-15 11.2 1.5
EJ30/12 6.9 30 12 174 CDL2-17 12.7 2.2
EJ100/10 22.7 100 10 145 CDL2-14 10.5 1.5
EJ100/11 22.7 100 11 160 CDL2-15 11.2 1.5
EJ100/12 22.7 100 12 174 CDL2-17 12.7 2.2

 This electric fire pump set mainly used for warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers and other occasions of a fire service.
diesel fire pump application

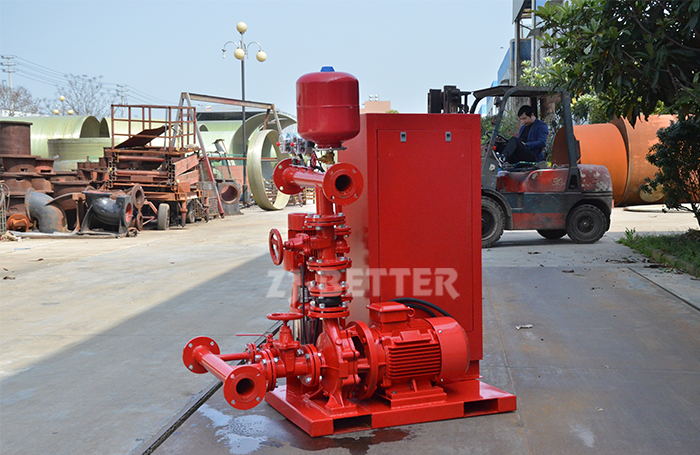

 electric fire pump set

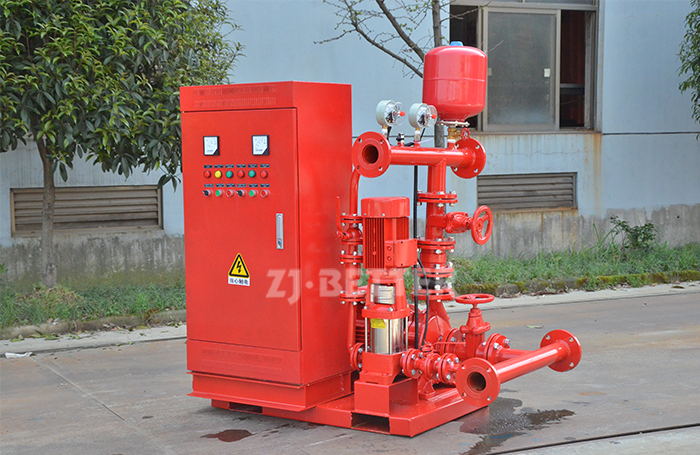

electric fire pump set

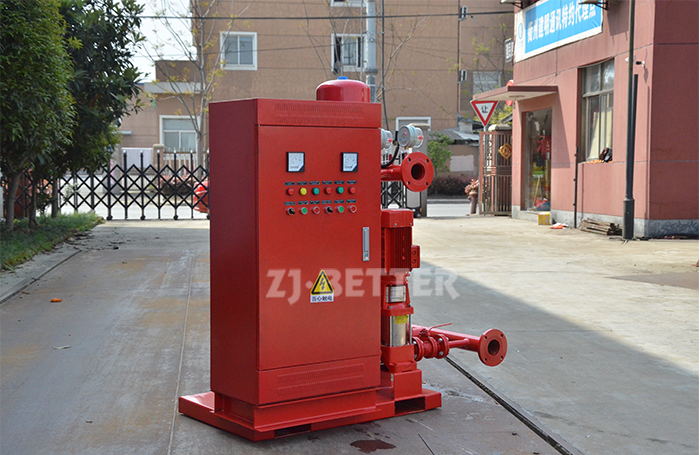

electric fire pump set
