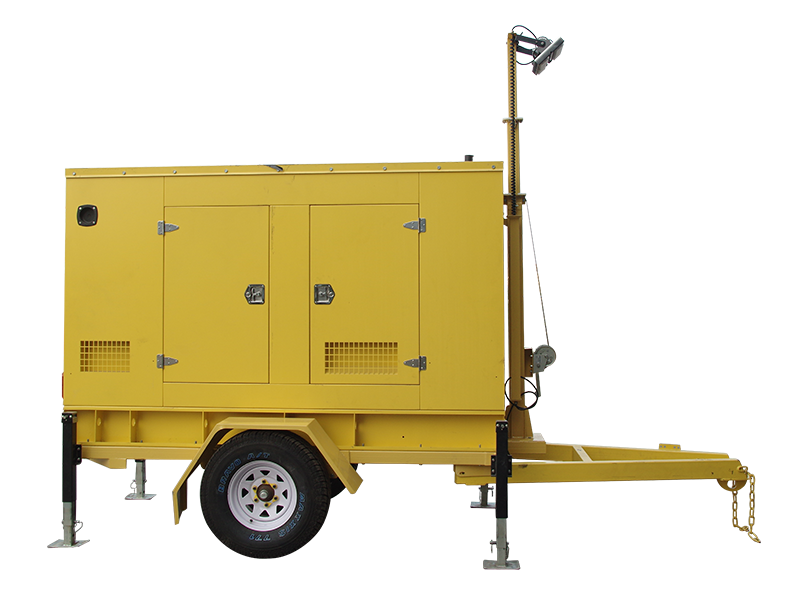

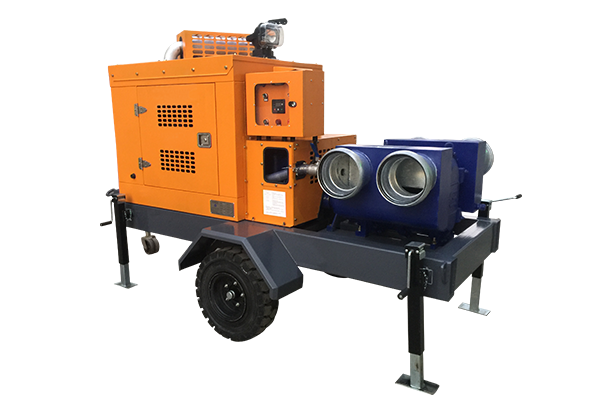

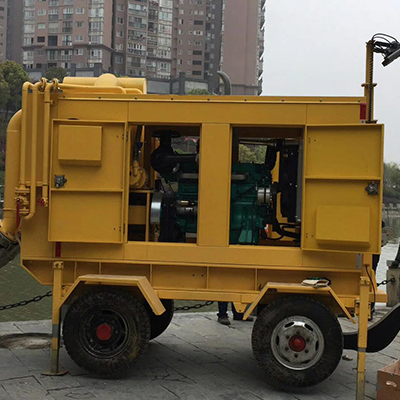

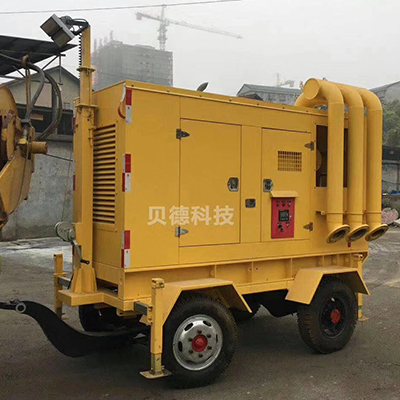

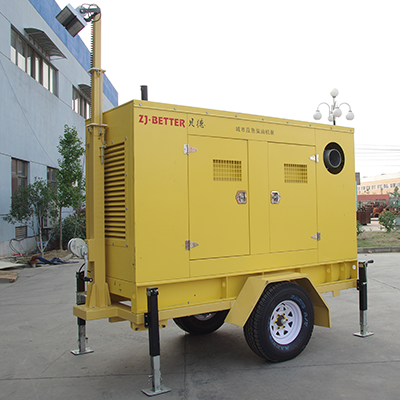

Diesel Engine Emergency Mobile Trailer Pump

Flow: 66~31718gpm / 4~2000 l/s

Head: 1-6.5 bar / 15-94 psi

Power: 4-450 kw

Speed: 1450-3000 r/min

If you want to get more product information please contact us!

  • Product Description
  • Product Features
  • Application
Product Conception
XBC diesel engine fire pump set is independently developed and produced by Better Technology Co., Ltd. XBC diesel engine fire pump set is a new type of fire-fighting equipment developed by the company in strict accordance with the national standard GB6245 "fire pump performance requirements and test methods", segmental multi-stage XBC-D diesel engine fire pump, equipment pressure, wide flow range, its application can almost meet the various occasions required for fire protection. And obtained the national fire protection product 3CF certification.

Product Categories

According to the moving form of the pump truck. Divided into trailer pump truck and self-propelled pump truck, each mobile pump truck has its own advantages and working conditions
The trailer-type mobile pump truck is towed and driven by other powers. The diesel engine drives various types of pumps, with two-wheel or four-wheeled trailer chassis (with brake system, front and rear telescopic hand support legs). This type of pump has the characteristics of small size, high reliability, strong maneuverability and low maintenance cost. This type of pump truck is mainly suitable for urban areas, tunnel rescue and various complicated working conditions. The effect of stability and shock absorption is also one of two major points, mainly used for flood control and drought relief, emergency drainage, etc.

The self-propelled mobile pump truck is a mobile pump truck in the ordinary sense. The pump truck modified on the vehicle chassis is equipped with a vehicle chassis. The cabinet is equipped with a tank body, and the tank body can be equipped with a drainage pump, a diesel engine. In order to realize the diversification of functions, the company designed it into a dual-use type vehicle. The container body can be hoisted at any time and the vehicle can be used for it. The most hardest people are rescue workers at the frontline, in order to allow rescuers to have a comfortable rest place, a rest room directly arranged on the mobile pump truck, so that the mobile pump truck is more humane. This type of pump truck has strong mobility, large flow, fast water supply and simple operation. It is mainly used in flood control and drought relief, emergency rescue, municipal drainage and other fields.



Product Structure

The complete set of XBC emergency mobile pump trucks includes: pumps, diesel engines, fuel tanks, water tanks, batteries, control cabinets, two-wheel support, trailers and brakes.

Product Features

1. The diesel engine equipped is made of domestic or imported high-quality products. It has the characteristics of good starting characteristics, strong overload capability, compact structure, convenient maintenance, simple use and high automation. It is an advanced and reliable fire-fighting equipment.
2. XBC-D Diesel engine fire pump is powered by X6135, 12V135, 4102, 4105, 6102 series diesel engines. The diesel engine (with clutch) is connected with fire pump through high-elastic coupling to form a fire pump set. The set also includes diesel tank, radiator tank, fan, control panel (for automatic unit) and other components.
3. When the set is automatically controlled, the automatic control cabinet (programmable) of the split diesel engine realizes the automatic start, input and automatic switching of the system (the electric pump unit is switched to the diesel pump unit or the diesel pump unit is switched to another unit), automatic protection (diesel overspeed, low oil pressure, high water temperature, three start failures, low oil level, low battery voltage, etc.), and can also interface with the user fire center or automatic fire alarm device, realize remote monitoring.
4. In order to ensure the normal operation of the unit under 5 °C environment, the unit can be equipped with AC220V cooling water preheating heating device.
5. XBC emergency mobile pump truck can be combined with electric pump group and jockey pump to form an automatic fire water supply system.
6. The water intake mode of XBC emergency mobile pump truck has two types: self-irrigation and suction. According to the requirements of fire protection regulations, it is generally self-irrigating water diversion. If the user needs to suck in the water inlet system, special instructions are required for the company to provide an automatic vacuum water guiding device, but the size of the pump unit has some changes.
7. The electric pump is the main fire pump, which can be automatically started according to the fire situation;
8. Equipped with jockey pump;
9. The diesel engine pump is a standby fire pump, and the fire is automatically started without power supply;
10. The diesel engine starts when the electric pump fails;
1. The diesel engine equipped is made of domestic or imported high-quality products. It has the characteristics of good starting characteristics, strong overload capability, compact structure, convenient maintenance, simple use and high automation. It is an advanced and reliable fire-fighting equipment.
2. XBC-D Diesel engine fire pump is powered by X6135, 12V135, 4102, 4105, 6102 series diesel engines. The diesel engine (with clutch) is connected with fire pump through high-elastic coupling to form a fire pump set. The set also includes diesel tank, radiator tank, fan, control panel (for automatic unit) and other components.
3. When the set is automatically controlled, the automatic control cabinet (programmable) of the split diesel engine realizes the automatic start, input and automatic switching of the system (the electric pump unit is switched to the diesel pump unit or the diesel pump unit is switched to another unit), automatic protection (diesel overspeed, low oil pressure, high water temperature, three start failures, low oil level, low battery voltage, etc.), and can also interface with the user fire center or automatic fire alarm device, realize remote monitoring.
4. In order to ensure the normal operation of the unit under 5 °C environment, the unit can be equipped with AC220V cooling water preheating heating device.
5. XBC emergency mobile pump truck can be combined with electric pump group and jockey pump to form an automatic fire water supply system.
6. The water intake mode of XBC emergency mobile pump truck has two types: self-irrigation and suction. According to the requirements of fire protection regulations, it is generally self-irrigating water diversion. If the user needs to suck in the water inlet system, special instructions are required for the company to provide an automatic vacuum water guiding device, but the size of the pump unit has some changes.
7. The electric pump is the main fire pump, which can be automatically started according to the fire situation;
8. Equipped with jockey pump;
9. The diesel engine pump is a standby fire pump, and the fire is automatically started without power supply;
10. The diesel engine starts when the electric pump fails;

Characteristics:
Emergency, efficient, flexible and reliable
Rescue with the fastest speed, the first time to lift the crisis
One choice, lifetime benefit

Working conditions:
The mobile diesel engine pump is flexible and maneuverable; the equipment is integrated with driving power and can be used for emergency rescue in no power areas. When the equipment is on the scene, use the control system installed to start the engine to drive the pump to pump the fluid, which is convenient and quick. Equipped with a lighting system to accommodate night work.

Equipment structure:
The complete set of XBC emergency mobile pump trucks includes: pumps, diesel engines, fuel tanks, water tanks, batteries, control cabinets, two-wheel support, trailers and brakes.

XBC emergency mobile pump truck is suitable for fire water supply and emergency water supply for warehouses, docks, airports, petroleum, chemical, power plants, liquefied petroleum gas, textiles, ships, oil tankers and other occasions.

The flexible maneuverability and high performance of the mobile pump truck developed by our company have been used in large quantities by the flood control and rescue units of more and more enterprises and institutions.
When the rescue mission arrives, a flexible and reliable mobile pump truck can achieve drainage and drainage within 15 seconds to one minute after arriving at the scene. Greatly improved the efficiency of emergency rescue. The so-called emergency rescue, the most important things is "urgent". Urgent is the urgent task of the rescue, you need to arrive at the scene in the first time; use the fastest speed to rescue the danger after arriving at the scene, the first time to lift the crisis.
