Diesel Engine Jockey Fire Pump

Flow: 25-100gpm

Head: 3-25Bar

Power: 3-20KW

Frequency:

If you want to get more product information please contact us!

  • Product Introduction
  • Technical Data
  • Applications
  • Actual Pictures

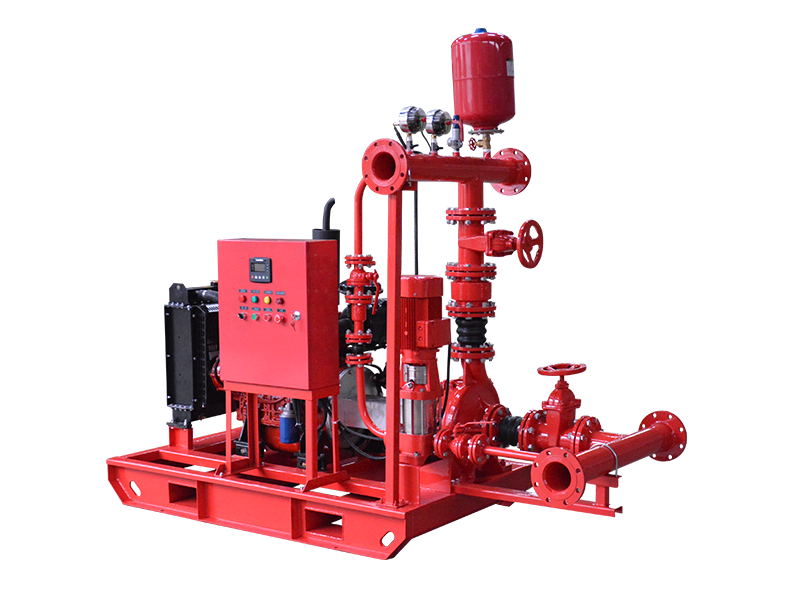

DJ fire pump set (Diesel pump+Jockey pump):

Operation: 1 Duty (diesel) + 1 Jockey

Capacity: 100, 150, 200, 300, 400, 500, 750, 1000...GPM with pressure 4, 5, 6, 8, 10... Bar.

Pressure vessel 25, 50, 75, 100...liters, pressure will be 0.6mpa, 1.0mpa, 1.6mpa, select according to pump head.

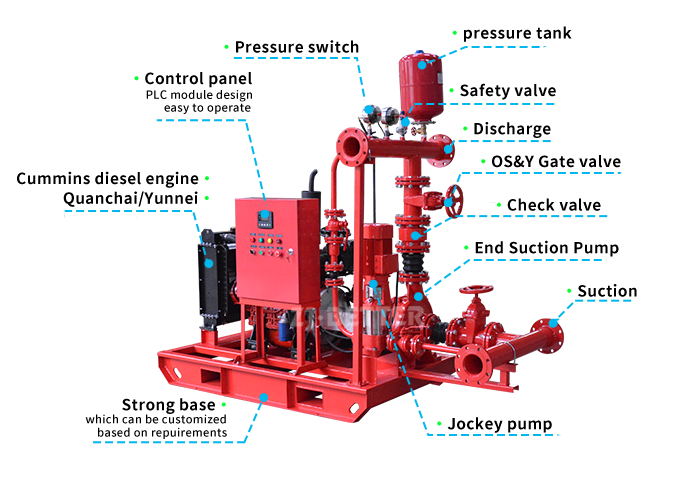

diesel fire pump structure

1. Diesel engine pump, can use single stage pump, horizontal split case pump, end suction pump, multistage pump, material can be cast iron, stainless steel, and bronze impeller , with fuel tank, water tank,fan, control box
2. Jockey pump, horizontal or vertical, capacity will be small, but head should be higher than electric and diesel engine pump
   Jockey material casing: cast iron, shaft and impeller: SS304
3. Control panel: Auto Control of diesel engine pump and Jockey Pump with overload, over current protection
4. Accessories: check valve, gate valve, pressure vessel, generally 0.6mpa, 1.0mpa, 1.6mpa, Pressure Gauge, Pressure Sensor, Common Pipe for Suction and Discharge, Flexible Joints and Flanges, Common Base plant






Model Pump Diesel Engine Jockey Pump
Flow Head Pressure Model Power Diesel Engine Model Head Power
M3/h GPM bar Pis kW bar kw
DJ25/3 5.6 25 3 44 BTI40/40-171 4 173F CDL2-5 3.7 0.55
DJ25/4 5.6 25 4 58 BTI40/40-171 4 173F CDL2-6 4.5 0.75
DJ25/5 5.6 25 5 73 BTI40/40-171 4 173F CDL2-7 5.2 0.75
DJ25/6 5.6 25 6 87 BTI40/40-171 4 173F CDL2-9 6.7 1.1
DJ25/7 5.6 25 7 102 BTI50/50-198 6.7 186FA CDL2-10 7.5 1.1
DJ25/8 5.6 25 8 116 BTI50/50-198 6.7 186FA CDL2-12 9 1.5
DJ25/9 5.6 25 9 131 1.5GCx3 8.6 192F CDL2-13 9.7 1.5
DJ25/10 5.6 25 10 145 1.5GCx4 9.2 195F CDL2-14 10.5 1.5
DJ25/11 5.6 25 11 160 1.5GCx4 9.2 195F CDL2-15 11.2 1.5
DJ25/12 5.6 25 12 174 1.5GCx5 10.2 1100F CDL2-17 12.7 2.2
DJ30/3 6.9 30 3 44 BTI40/40-171 4 173F CDL2-5 3.7 0.55
DJ30/4 6.9 30 4 58 BTI40/40-171 4 173F CDL2-6 4.5 0.75
DJ30/5 6.9 30 5 73 BTI40/40-171 4 173F CDL2-7 5.2 0.75
DJ30/6 6.9 30 6 87 BTI40/40-171 4 173F CDL2-9 6.7 1.1
DJ30/7 6.9 30 7 102 BTI50/50-198 6.7 186FA CDL2-10 7.5 1.1
DJ30/8 6.9 30 8 116 BTI50/50-198 6.7 186FA CDL2-12 9 1.5
DJ30/9 6.9 30 9 131 1.5GCx3 8.6 192F CDL2-13 9.7 1.5
DJ30/10 6.9 30 10 145 1.5GCx4 9.2 195F CDL2-14 10.5 1.5
DJ30/11 6.9 30 11 160 1.5GCx4 9.2 195F CDL2-15 11.2 1.5
DJ30/12 6.9 30 12 174 1.5GCx5 10.2 1100F CDL2-17 12.7 2.2
DJ100/10 22.7 100 10 145 D25-30x4 20 295F CDL2-14 10.5 1.5
DJ100/11 22.7 100 11 160 D25-30x4 20 295F CDL2-15 11.2 1.5
DJ100/12 22.7 100 12 174 D25-30x4 20 295F CDL2-17 12.7 2.2

 The above is part of technical parameters. More information pls contact us!

Widely used for warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers and other occasions of a fire service.
diesel fire pump application

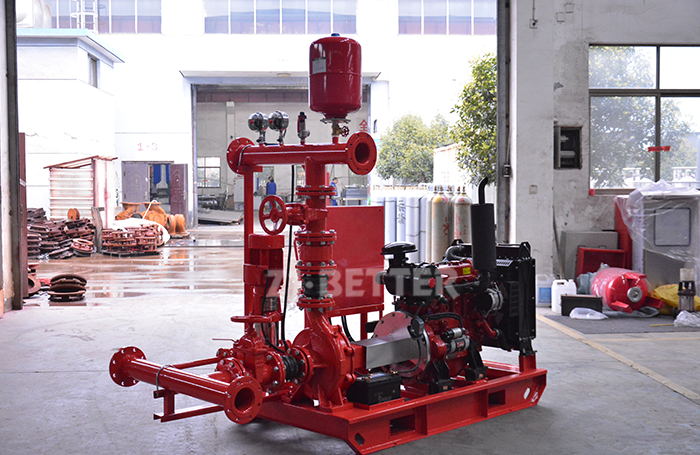

diesel engine fire pump

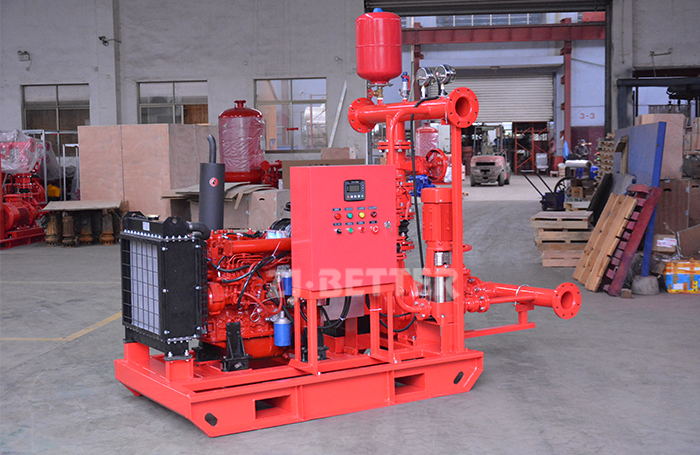

diesel fire pump

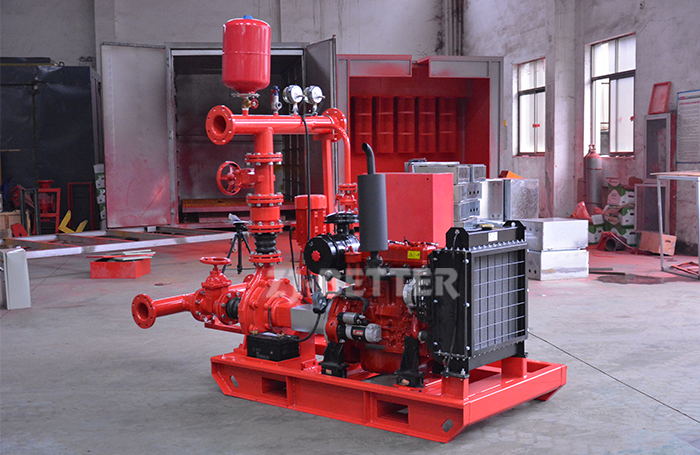

diesel fire pump
