Fire Fighting Pump System
Flow: 30-9000GPM
Head: 3-20Bar
Caliber: 25-800mm
Power: Diesel pump / Electric pump: 1.5-710 kw, Jockey pump: 0.55-160kw
Speed: 740-2900r/min
If you want to get more product information please contact us!

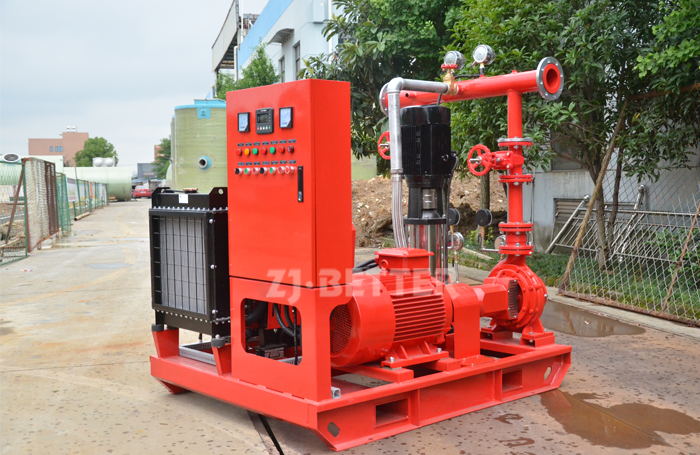

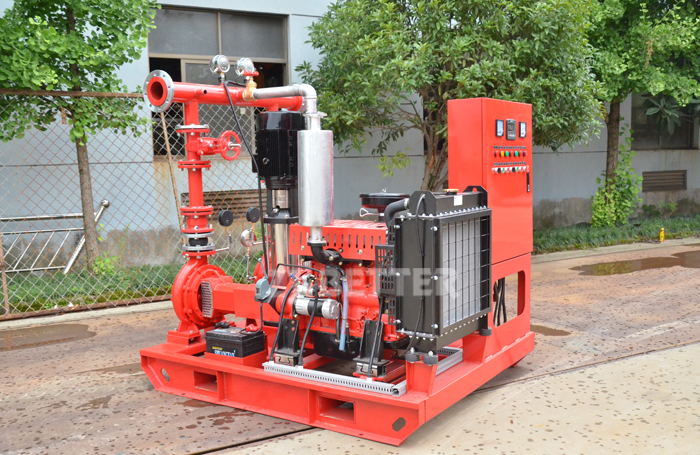

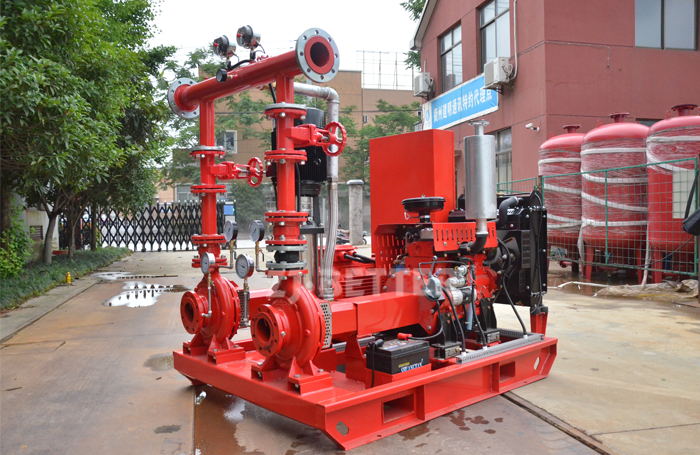

EDJ Fire Pump Set (Electric pump+Diesel pump+Jockey pump)
Fire pump set comprises a combination of electric motor driven pump, diesel engine driven and electric motor driven jockey pumps that supply for fire suppression systems.Fire pump package is required to comply with Local Civil Defense Authority regulations and International Codes of Practice e.g. National Fire Protection Association (NFPA).
.png)
Bare pump provided include: end suction, horizontal split case, vertical split case, vertical inline and vertical turbines.
1. Electric motor driven pump, can use single stage pump, horizontal split case pump, end suction pump, multistage pump, material can be cast iron, stainless steel, and bronze impeller
2. Diesel engine pump, with capacity and head equal to electric pump, with fuel tank, water tank，fan, control box
3. Jockey pump, horizontal or vertical, capacity will be small, but head should be higher than electric and diesel engine pump
4. Control panel: Auto Control of electric pump, diesel engine pump and Jockey Pump with overload, over current protection.
5. Accessories: check valve, gate valve, pressure vessel, generally 0.6mpa, 1.0mpa, 1.6mpa, Pressure Gauge, Pressure Sensor, Common Pipe for Suction and Discharge, Flexible Joints and Flanges, Common Base plant.
100GPM @4BAR
Pump
Model
Capacity(GPM)
Head(BAR)
Power(KW)
Material
Electric
XBD4/5-50L(50-200)
100
4
5.5
cast iron
Diesel engine
XBC4/5-IS
100
4
5.5
cast iron
Jockey
CDL2-70
10
5
0.75
SS304
100GPM @6BAR
Pump
Model
Capacity(GPM)
Head(BAR)
Power(KW)
Material
Electric
XBD6/5-65L(65-250B)
100
6
7.5
cast iron
Diesel engine
XBC6/5-IS
100
6
7.5
cast iron
Jockey
CDL2-100
10
7
1.1
SS304
200GPM @6BAR
Pump
Model
Capacity(GPM)
Head(BAR)
Power(KW)
Material
Electric
XBD6/10-65L(65-250)
200
6
15
cast iron
Diesel engine
XBC4/5-IS
200
6
22
cast iron
Jockey
CDL4-90
20
7
2.2
SS304
500GPM @5BAR
Pump
Model
Capacity(GPM)
Head(BAR)
Power(KW)
Material
Electric
XBD5/30-100L(100-200)
500
5
22
cast iron
Diesel engine
XBC5/30-IS
500
5
30
cast iron
Jockey
CDL12-60
50
6
4
SS304
500GPM @8BAR
Pump
Model
Capacity(GPM)
Head(BAR)
Power(KW)
Material
Electric
XBD8/30-100L(100-250)
500
8
37
cast iron
Diesel engine
XBC8/30-D
500
8
45
cast iron
Jockey
CDL12-90
50
9
5.5
SS304
500GPM @10BAR
Pump
Model
Capacity(GPM)
Head(BAR)
Power(KW)
Material
Electric
XBD10/30-100L(100-315A)
500
10
55
cast iron
Diesel engine
XBC10/30-D
500
10
55
cast iron
Jockey
CDL12-110
50
11
7.5
SS304
750GPM @9BAR
Pump
Model
Capacity(GPM)
Head(BAR)
Power(KW)
Material
Electric
XBD9/50-125L(125-250)
750
9
55
cast iron
Diesel engine
XBC9/50-D
750
9
90
cast iron
Jockey
CDL16-90
70
10
11
SS304
750GPM @10BAR
Pump
Model
Capacity(GPM)
Head(BAR)
Power(KW)
Material
Electric
XBD10/50-150L(150-315A)
750
10
90
cast iron
Diesel engine
XBC10/50-D
750
10
90
cast iron
Jockey
CDL16-100
70
11
11
SS304
more specification please contact us
100GPM @4BAR
Pump
Model
Capacity(GPM)
Head(BAR)
Power(KW)
Material
Electric
XBD4/5-50L(50-200)
100
4
5.5
cast iron
Diesel engine
XBC4/5-IS
100
4
5.5
cast iron
Jockey
CDL2-70
10
5
0.75
SS304
100GPM @6BAR
Pump
Model
Capacity(GPM)
Head(BAR)
Power(KW)
Material
Electric
XBD6/5-65L(65-250B)
100
6
7.5
cast iron
Diesel engine
XBC6/5-IS
100
6
7.5
cast iron
Jockey
CDL2-100
10
7
1.1
SS304
200GPM @6BAR
Pump
Model
Capacity(GPM)
Head(BAR)
Power(KW)
Material
Electric
XBD6/10-65L(65-250)
200
6
15
cast iron
Diesel engine
XBC4/5-IS
200
6
22
cast iron
Jockey
CDL4-90
20
7
2.2
SS304
500GPM @5BAR
Pump
Model
Capacity(GPM)
Head(BAR)
Power(KW)
Material
Electric
XBD5/30-100L(100-200)
500
5
22
cast iron
Diesel engine
XBC5/30-IS
500
5
30
cast iron
Jockey
CDL12-60
50
6
4
SS304
500GPM @8BAR
Pump
Model
Capacity(GPM)
Head(BAR)
Power(KW)
Material
Electric
XBD8/30-100L(100-250)
500
8
37
cast iron
Diesel engine
XBC8/30-D
500
8
45
cast iron
Jockey
CDL12-90
50
9
5.5
SS304
500GPM @10BAR
Pump
Model
Capacity(GPM)
Head(BAR)
Power(KW)
Material
Electric
XBD10/30-100L(100-315A)
500
10
55
cast iron
Diesel engine
XBC10/30-D
500
10
55
cast iron
Jockey
CDL12-110
50
11
7.5
SS304
750GPM @9BAR
Pump
Model
Capacity(GPM)
Head(BAR)
Power(KW)
Material
Electric
XBD9/50-125L(125-250)
750
9
55
cast iron
Diesel engine
XBC9/50-D
750
9
90
cast iron
Jockey
CDL16-90
70
10
11
SS304
750GPM @10BAR
Pump
Model
Capacity(GPM)
Head(BAR)
Power(KW)
Material
Electric
XBD10/50-150L(150-315A)
750
10
90
cast iron
Diesel engine
XBC10/50-D
750
10
90
cast iron
Jockey
CDL16-100
70
11
11
SS304
more specification please contact us
This fire pump set is mainly used for warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers and other occasions of a fire service.
.jpg)
.jpg)
.jpg)
.jpg)
