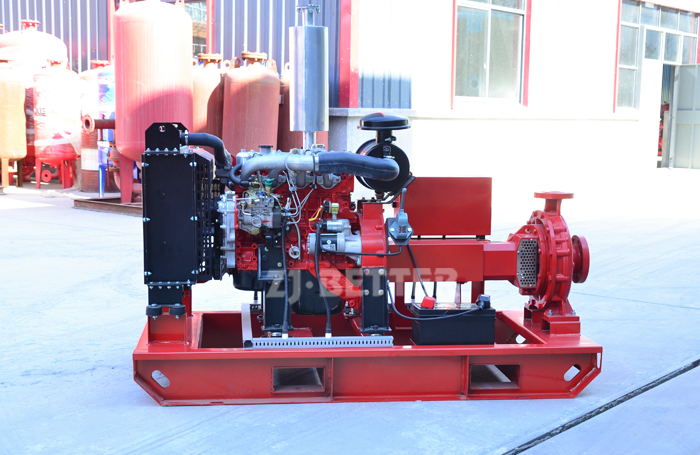

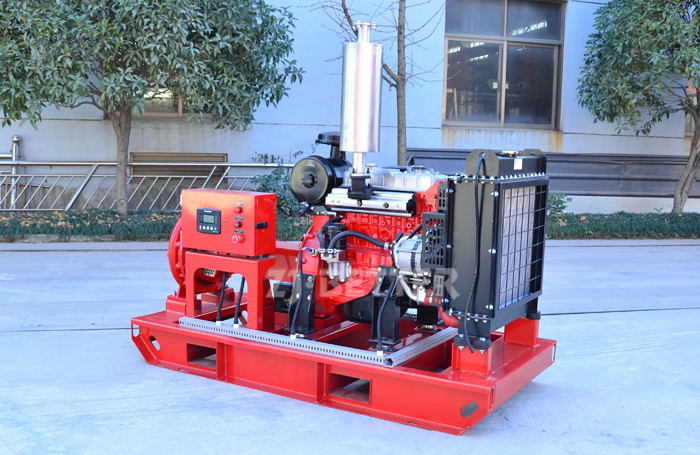

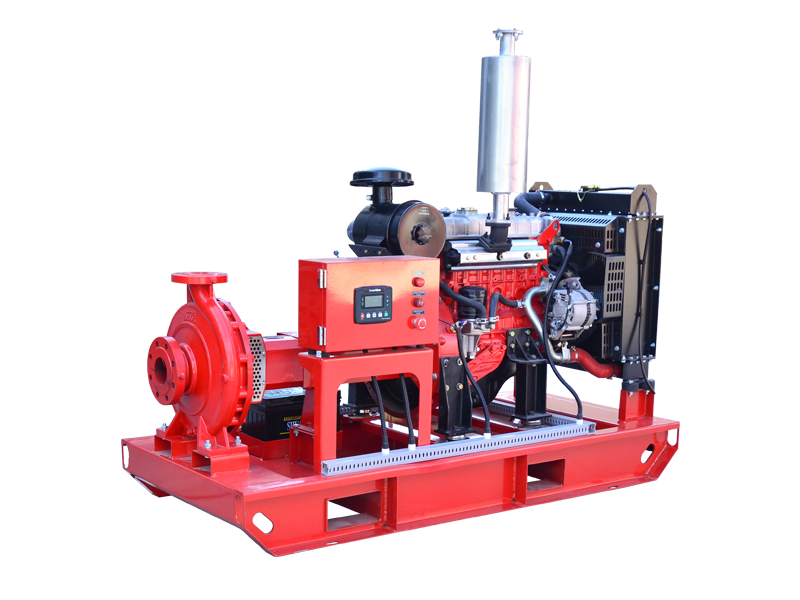

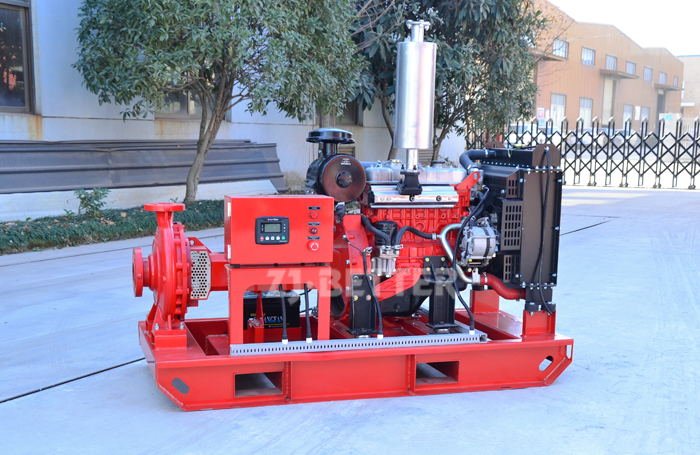

XBC-XA Diesel Engine End Suction Fire Pump

Flow: 80.0-2500 gpm

Head: 2-16 bar

Caliber: 50-250mm

Power: 3-220kW

Speed: 1500-2600r/min

Working Pressure: 1.6-2.5 MPa

If you want to get more product information please contact us!

  • Product Introduction
  • Structure
  • Applications
  • Technical Data

Diesel Fire Pump XA Series Single-Stage Centrifugal Pump

XA series single-stage centrifugal pump is the earliest single-stage single-suction centrifugal pump product launched by Better (China) Technology Group Co., Ltd.
This product combines the advantages of similar products in China and abroad, and is designed with excellent hydraulic model.
Therefore, its excellent hydraulic performance and structural characteristics ensure that users can effectively reduce the operation cost of pumps in various applications.




Main Features

Meet high standards

XA single-stage single-suction centrifugal pump conforms to international standards: ISO9908, Technical Specification for Centrifugal Pumps,
Class III (Technical Specification for Centrifugal Pumps, Class III), mainly based on German DIN standard
.


High-efficiency volute

The pump body is in the form of high-efficiency volute.
The flange connection size is in accordance with GB/T 17241.6-1998 (cast iron) and GB/T 9113.1-2000 (steel) PN1.6MPa,
and can be used with the following standard flanges. : BS 4504: 1989, ISO 7005.1: 1992, DIN 2533: 1976, ISO 7005.2: 1988.


Structural Design for Easy Installation
The rear open cover design can replace the rotor components without dismantling the pipeline.
Replaceable seal ring. The wear of the impeller ring can be achieved only by replacing the sealing ring,
so as to restore the
 best operating condition of the pump and achieve low-cost operation.

Ensure high reliability at high speed and heavy load operation
Cantilever ratio is small. The cantilever ratio of the rotor ranges from 0.66 to 1.1, with good rigidity and small deflection.
Its rigidity is much better than that of the same type of single-stage centrifugal pump (the cantilever ratio of IS pump is between 0.97 and 1.48).

Further Improve the Stability of Pump Operation
Hydraulic balance design and combination of impeller dynamic and static balance


 Part standardization, high degree of Generalization

The 48 models of the whole series only need 5 suspensions, 6 pump shafts and 4 bearings.
Shafts, bearings, bushes, seals and impeller fasteners of the same specification can be interchanged,
which effectively improves the interchangeability of parts and reduces the inventory of spare parts.

 Application scope

It is used to transport clean water and liquids with physical and chemical properties similar to water.
Water booster for waterworks or water supply company;
Circulation and cooling systems, boiler water supply and industrial water supply and drainage in industrial process systems.
Farmland irrigation and drainage, air conditioning systems, urban water supply and drainage, fire protection systems.

 1. Performance curve
