EDJ Fire Fighting Pump Set

Flow: 30-9000gpm

Head: 3-25Bar

Power: 3-355KW

Frequency: 50 Hz or 60 Hz

If you want to get more product information please contact us!

  • Product Introduction
  • Technical Data
  • Applications
  • Actual Pictures

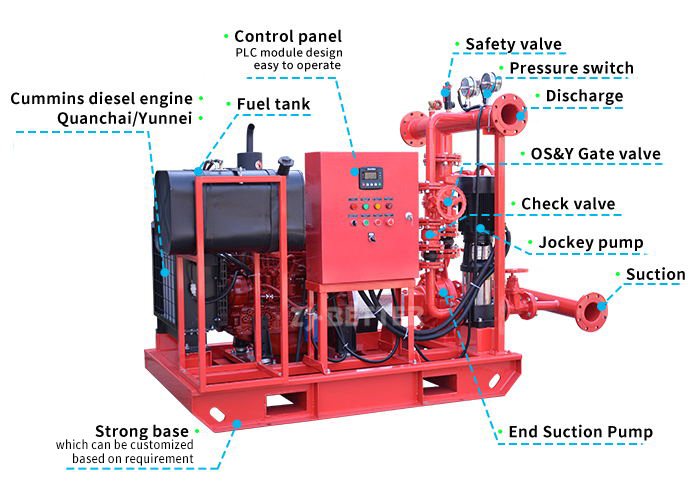

Fire pump system comprises a combination of electric motor driven fire pump+diesel engine driven fire pump+electric motor driven jockey pumps+ control panel and other accessory.
Fire pump package is required to comply with Local Civil Defense Authority regulations and International Codes of Practice e.g. National Fire Protection Association (NFPA).



Types of pumps used for fire service include: end suction, horizontal split case, vertical split case, vertical inline and vertical turbines.

1. Electric motor driven pump, can use single stage pump, horizontal split case pump, end suction pump, multistage pump, material can be cast iron, stainless steel, and bronze impeller
2. Diesel engine pump, with capacity and head equal to electric pump, with fuel tank, water tank,fan, control box
3. Jockey pump, horizontal or vertical, capacity will be small, but head should be higher than electric and diesel engine pump
4. Control panel: Auto Control of electric pump, diesel engine pump and Jockey Pump with overload, over current protection.
5. Accessories: check valve, gate valve, pressure vessel, generally 0.6mpa, 1.0mpa, 1.6mpa, Pressure Gauge, Pressure Sensor, Common Pipe for Suction and Discharge, Flexible Joints and Flanges, Common Base plant.


100GPM @4BAR
Pump Model Capacity(GPM) Head(BAR) Power(KW) Material
Electric XBD4/5-50L(50-200) 100 4 5.5 cast iron
Diesel engine XBC4/5-IS 100 4 5.5 cast iron
Jockey CDL2-70 10 5 0.75 SS304
100GPM @6BAR
Pump Model Capacity(GPM) Head(BAR) Power(KW) Material
Electric XBD6/5-65L(65-250B) 100 6 7.5 cast iron
Diesel engine XBC6/5-IS 100 6 7.5 cast iron
Jockey CDL2-100 10 7 1.1 SS304
200GPM @6BAR
Pump Model Capacity(GPM) Head(BAR) Power(KW) Material
Electric XBD6/10-65L(65-250) 200 6 15 cast iron
Diesel engine XBC4/5-IS 200 6 22 cast iron
Jockey CDL4-90 20 7 2.2 SS304
500GPM @5BAR
Pump Model Capacity(GPM) Head(BAR) Power(KW) Material
Electric XBD5/30-100L(100-200) 500 5 22 cast iron
Diesel engine XBC5/30-IS 500 5 30 cast iron
Jockey CDL12-60 50 6 4 SS304
500GPM @8BAR
Pump Model Capacity(GPM) Head(BAR) Power(KW) Material
Electric XBD8/30-100L(100-250) 500 8 37 cast iron
Diesel engine XBC8/30-D 500 8 45 cast iron
Jockey CDL12-90 50 9 5.5 SS304
500GPM @10BAR
Pump Model Capacity(GPM) Head(BAR) Power(KW) Material
Electric XBD10/30-100L(100-315A) 500 10 55 cast iron
Diesel engine XBC10/30-D 500 10 55 cast iron
Jockey CDL12-110 50 11 7.5 SS304
750GPM @9BAR
Pump Model Capacity(GPM) Head(BAR) Power(KW) Material
Electric XBD9/50-125L(125-250) 750 9 55 cast iron
Diesel engine XBC9/50-D 750 9 90 cast iron
Jockey CDL16-90 70 10 11 SS304
750GPM @10BAR
Pump Model Capacity(GPM) Head(BAR) Power(KW) Material
Electric XBD10/50-150L(150-315A) 750 10 90 cast iron
Diesel engine XBC10/50-D 750 10 90 cast iron
Jockey CDL16-100 70 11 11 SS304
more specification please contact us




100GPM @4BAR
Pump Model Capacity(GPM) Head(BAR) Power(KW) Material
Electric XBD4/5-50L(50-200) 100 4 5.5 cast iron
Diesel engine XBC4/5-IS 100 4 5.5 cast iron
Jockey CDL2-70 10 5 0.75 SS304
100GPM @6BAR
Pump Model Capacity(GPM) Head(BAR) Power(KW) Material
Electric XBD6/5-65L(65-250B) 100 6 7.5 cast iron
Diesel engine XBC6/5-IS 100 6 7.5 cast iron
Jockey CDL2-100 10 7 1.1 SS304
200GPM @6BAR
Pump Model Capacity(GPM) Head(BAR) Power(KW) Material
Electric XBD6/10-65L(65-250) 200 6 15 cast iron
Diesel engine XBC4/5-IS 200 6 22 cast iron
Jockey CDL4-90 20 7 2.2 SS304
500GPM @5BAR
Pump Model Capacity(GPM) Head(BAR) Power(KW) Material
Electric XBD5/30-100L(100-200) 500 5 22 cast iron
Diesel engine XBC5/30-IS 500 5 30 cast iron
Jockey CDL12-60 50 6 4 SS304
500GPM @8BAR
Pump Model Capacity(GPM) Head(BAR) Power(KW) Material
Electric XBD8/30-100L(100-250) 500 8 37 cast iron
Diesel engine XBC8/30-D 500 8 45 cast iron
Jockey CDL12-90 50 9 5.5 SS304
500GPM @10BAR
Pump Model Capacity(GPM) Head(BAR) Power(KW) Material
Electric XBD10/30-100L(100-315A) 500 10 55 cast iron
Diesel engine XBC10/30-D 500 10 55 cast iron
Jockey CDL12-110 50 11 7.5 SS304
750GPM @9BAR
Pump Model Capacity(GPM) Head(BAR) Power(KW) Material
Electric XBD9/50-125L(125-250) 750 9 55 cast iron
Diesel engine XBC9/50-D 750 9 90 cast iron
Jockey CDL16-90 70 10 11 SS304
750GPM @10BAR
Pump Model Capacity(GPM) Head(BAR) Power(KW) Material
Electric XBD10/50-150L(150-315A) 750 10 90 cast iron
Diesel engine XBC10/50-D 750 10 90 cast iron
Jockey CDL16-100 70 11 11 SS304
more specification please contact us



Widely used for warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers and other occasions of a fire service.

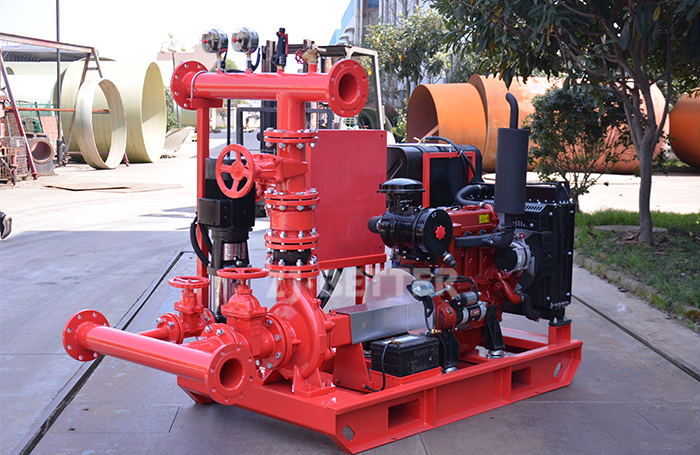

Complete fire pump set

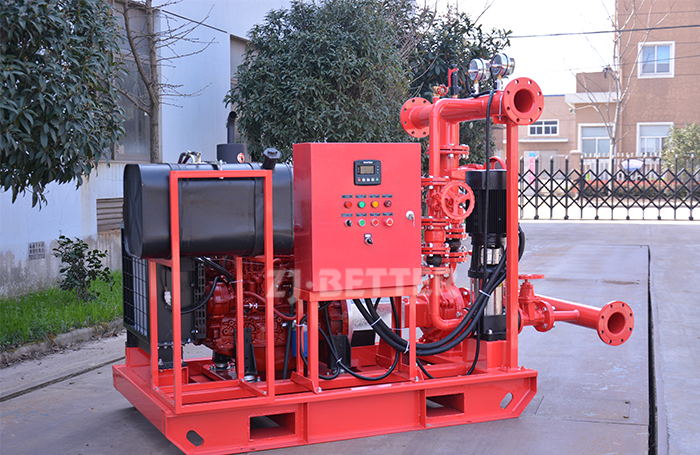

Complete fire pump set

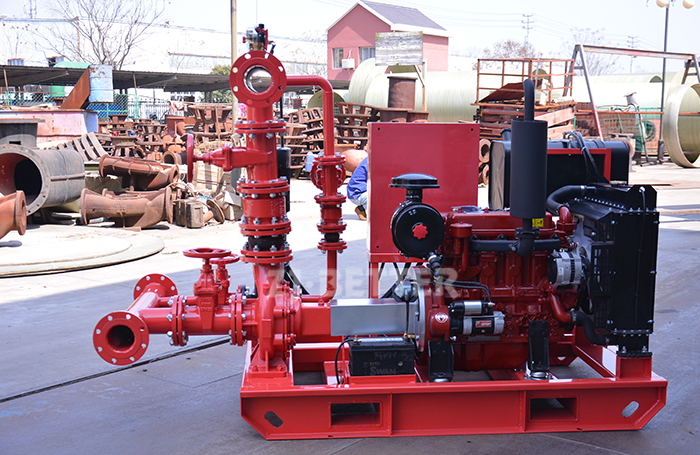

Complete fire pump set
