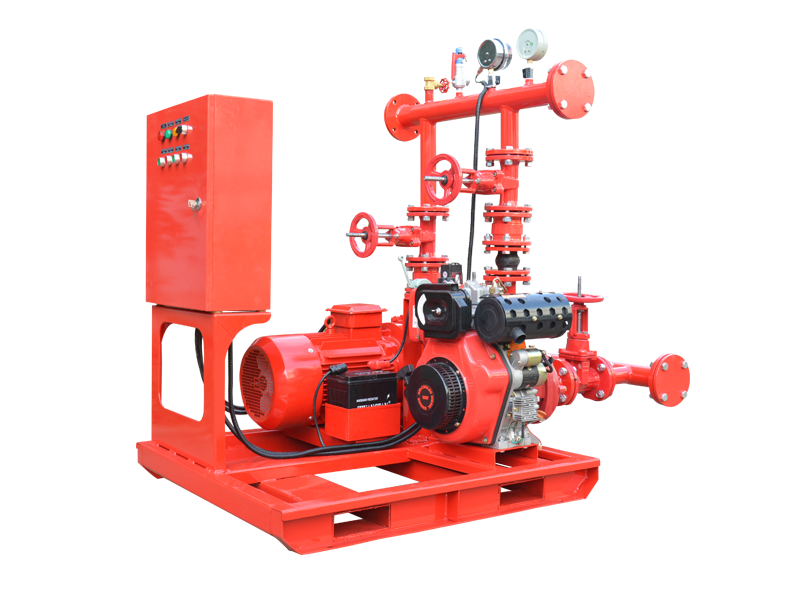

ED Small fire pump set

Flow: 30-500GPM

Head: 3-20Bar

Speed: 740-2900r/min

Frequency: 50 HZ or 60 HZ

If you want to get more product information please contact us!

  • Product Introduction
  • Technical Data
  • Applications
  • Actual Pictures
Specifications
ED Fire pump system is made of Electric pump +Diesel pump
Operation: 1 Duty (electric) + 1 standby (diesel engine)
Capacity: 25, 30, 50, 100, 150, 200, 300, 400, 500, 750, 1000...GPM with pressure 4, 5, 6, 8, 10... Bar.
Pressure vessel 25, 50, 75, 100...liters, pressure will be 0.6mpa, 1.0mpa, 1.6mpa, select according to pump head.

Bare pump provided
 include: end suction, horizontal split case, vertical split case, vertical inline and vertical turbines.

1. Electric motor driven pump, can use single stage pump, horizontal split case pump, end suction pump, multistage pump, material can be cast iron, stainless steel, and bronze impeller
2. Diesel engine pump, with capacity and head equal to electric pump, with fuel tank, water tank,fan, control box
3. Control panel: Auto Control of electric pump, diesel engine pump and Jockey Pump with overload, over current protection.
4. Accessories: check valve, gate valve, pressure vessel, generally 0.6mpa, 1.0mpa, 1.6mpa, Pressure Gauge, Pressure Sensor, Common Pipe for Suction and Discharge, Flexible Joints and Flanges, Common Base plant.
 ED Small fire pump set structure
ED Small fire pump set parameters

 Mainly used for warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers and other occasions of a fire service.
diesel fire pump application
 ED Small fire pump set
ED Small fire pump set
ED Small fire pump set
