Electric Vertical single-stage fire pump

Flow: 1~300L/s

Head: 0.15~1.6MPa

Caliber: 25~500mm

Power: 0.75~160/6P kW

Speed: 960~2900r/min

Working Pressure: 1.6MPa

If you want to get more product information please contact us!

  • Product Overview
  • Product Structure
  • Application
  • Technical Data

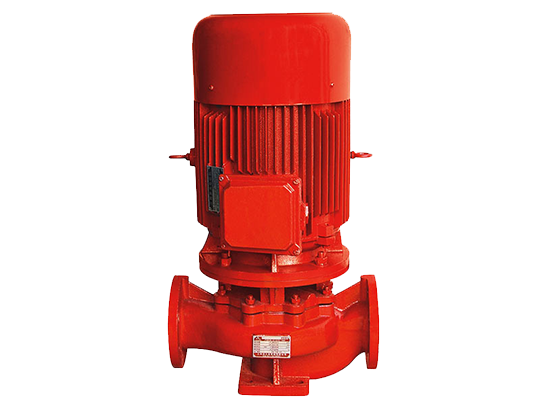

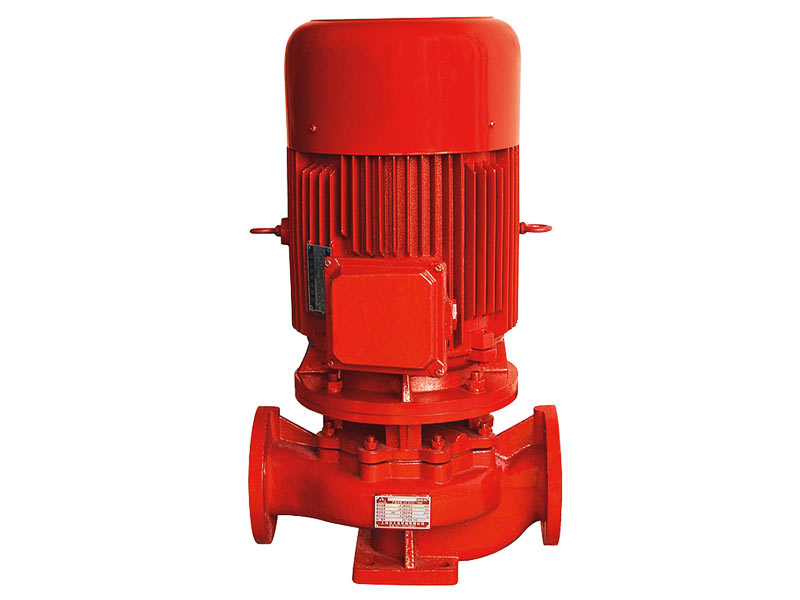

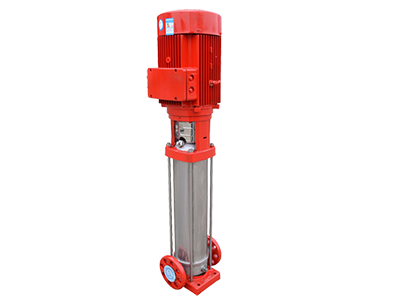

Electric Vertical single-stage fire pump


XBD electric fire pump is a kind of new type fire products researched and developed in full compliance with the state issued-newly standard of GB6245-2006 "Fire pump",
according to the end-user's practical needs and special using requirements. The inspection of the state fire equipment quality supervising center shows
its all kinds of performance indexes are up to or over the standard's requirements and it earned the certificate for fire state products.

Electric Split Case Fire Pump
1. Vertical

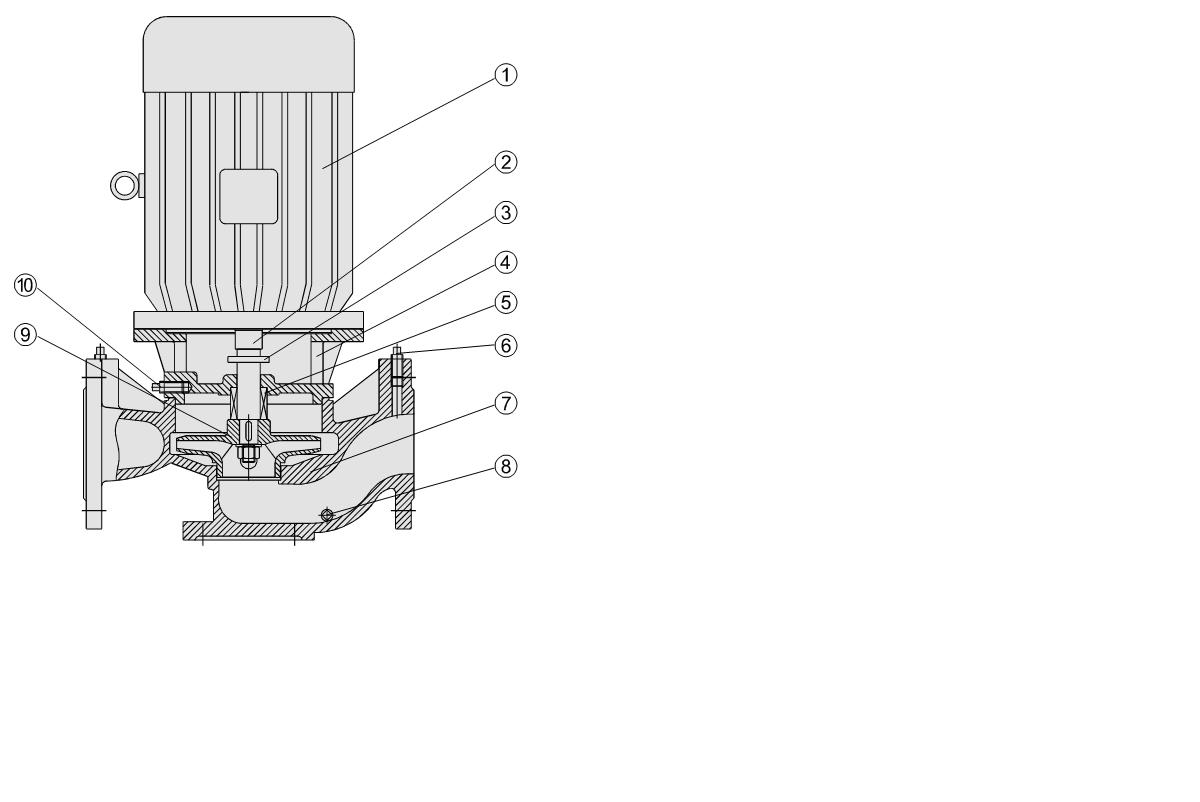

1. Y/Y2 Series Motor: the driving part of pump, with a close- coupled type.
2. Pump Shaft: coaxial with motor and high concentricity to enable pump operating without noise and vibration.
3. Water Deflector: to avoid water entering motor due to leakage at seal.
4. Pump Cover: elaborately designed of sharing the same end cover with motor, shortened axial dimensions and simple structure.
5. Mechanical Seal: made of stainless steel, tungsten carbide, fluorine rubber and etc, for outstanding sealing, durable service life and leak-tightness.
6. Pressure Plug: to mount pressure gauge to monitor the normal operation of pump.
7. Pump Body: to lower the velocity of flow, making velocity energy into pressure energy
8. Drain Plug: fully let out the liquid inside in case that pump needs servicing or will be left unused for a long time.
9. Air Release Valve: to release the air inside to ensure the normal start of pump.
10. Impeller: to play a leading role with its vane forcing liquid rotated and splashed around driven by centrifugal force.
1. Application
Electric Vertical single-stage fire pumpare mainly used for the fixed fire hydrant system; automatic spraying fire system used by all sorts of organs, projects, high-floor buildings etc. and can be transferred with the clear water without solid grain under 100 or its equivalence, also be used for public-used water providing system for fire, living, production, construction and municipality.

2. Using Instruction
Before start:
1. Turning the clutch by hand, there should be no jammed phenomenon at the turner position.
2. Opening the inlet valve and the vent valve, letting the water fill into the pump's chamber, then closing the vent valve.
3. Clicking the switch of motor, and confirming whether the turning is right or not.
Running:
1. Fully opening the inlet valves, and closing the valves of the outlet pipe.
2. Connecting the power, Opening the valves of the outlet pipe and adjusting the needed working point when the turning velocity is normal.
3. Watching whether there exist abnormities or not, if yes, should the pump be stopped and inspected before re-running.
Stop:
1. After turning off the outlet valves one by one, shutting off the power.
2. Shutting off the inlet valves.
3. If the ambient temperature is below 0, some warm keeping measures should be adopted.

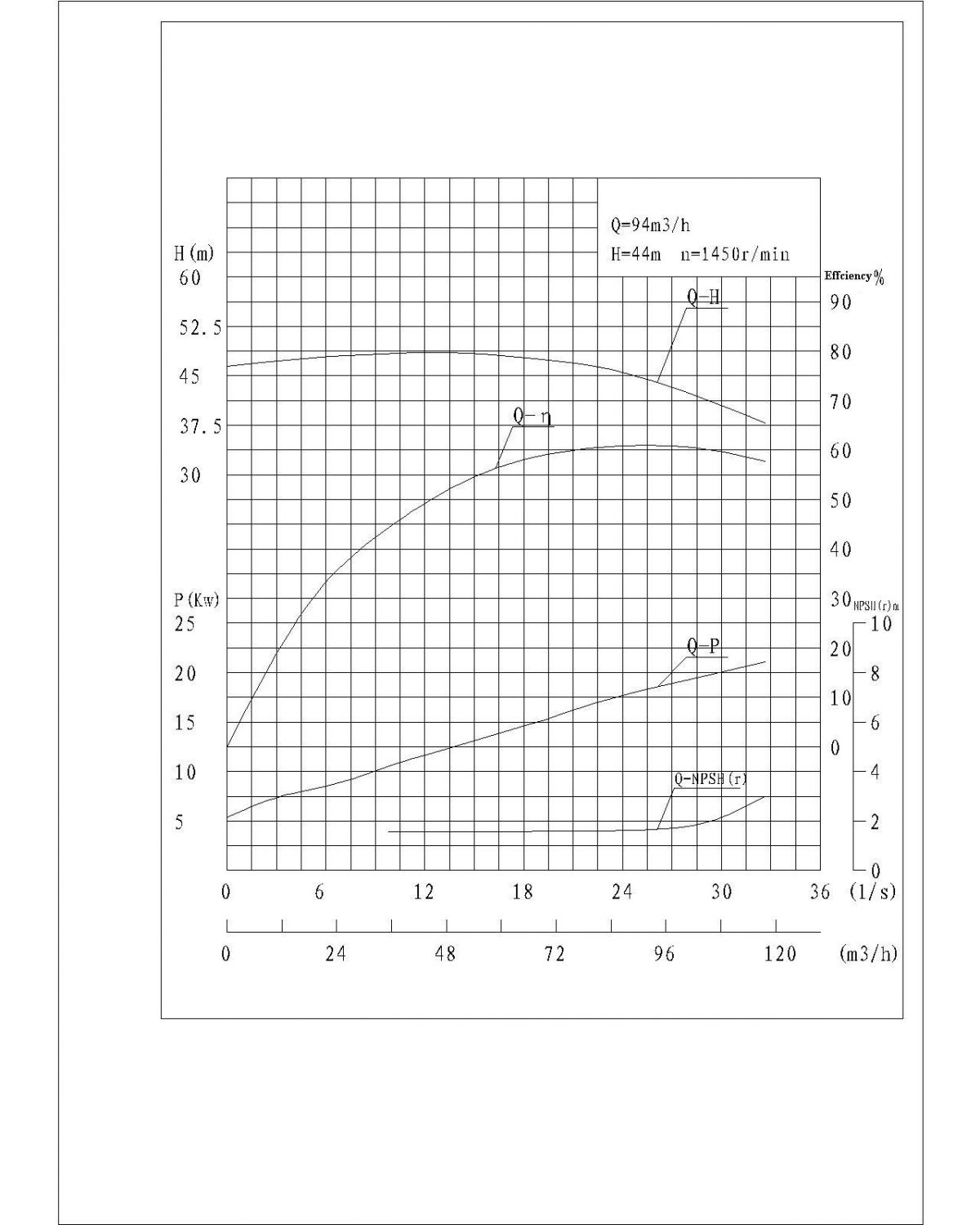

1. Performance curve


2. Specifications
Model Flow(m3/h) Head(mpa) Power(kw) Speed (rpm) Caliber (mm)
XBD2.0/1.1-25L 4 0.2 0.75 2900 25
XBD3.2/1.1-25L 4 0.3 1.5 2900 25
XBD4.0/1.1-32L 4 0.4 2.2 2900 32
XBD5.0/1.25-32L 4.5 0.5 3 2900 32
XBD3.0/1.5-40L 5.4 0.3 2.2 2900 40
XBD8.0/3-40L 10.8 0.8 11 2900 40
XBD3.0/5-50L 18 0.3 4 2900 50
XBD7.0/5-50L 18 0.7 11 2900 50
XBD10.0/5-50L 18 1.0 22 2900 50
XBD12.0/5-50L 18 1.2 30 2900 50
XBD7.0/10-65L 36 0.7 15 2900 65
XBD9.0/15-65L 54 0.9 30 2900 65
XBD10.0/20-80L 72 1.0 55 2900 80
XBD8.0/25-80L 108 0.8 37 2900 80
XBD3.0/25-100L 90 0.3 15 2900 100
XBD4.0/30-100L 108 0.4 18.5 2900 100
XBD5.0/40-100L 144 0.5 37 2900 100
XBD7.0/45-100L 162 0.7 55 2900 100
XBD6.0/45-125L 162 0.6 45 2900 125
XBD12.5/45-125L 194 1.3 90 2900 125
XBD6.0/50-150L 180 0.6 45 2900 150
XBD9.0/50-150L 180 0.9 75 2900 150
XBD4.0/55-150L 198 0.4 37 2900 150
XBD7.0/55-150L 198 0.7 55 2900 150
XBD4.8/55-200L 198 0.5 45 1450 200
XBD3.0/100-200L 360 0.3 55 1450 200
MORE SPECIFICATIONS PLEASE CONTACT US.
