Electric Jockey Fire Pump Set

Flow: 50-5000GPM

Head: 3-20Bar

Caliber: 25-800mm

Power: Electric pump: 1.5-710 kw, Jockey pump: 0.55-160kw

Speed: 740-2900r/min

Material: HT200, SS304, Bronze

If you want to get more product information please contact us!

  • Product Overview
  • Product Structure
  • Application
  • Technical Data

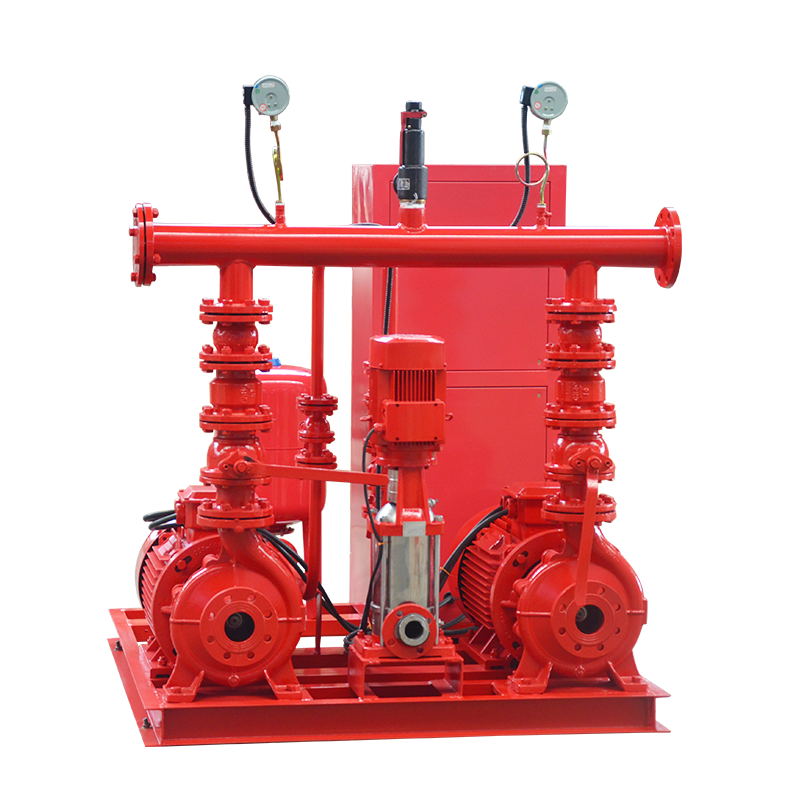

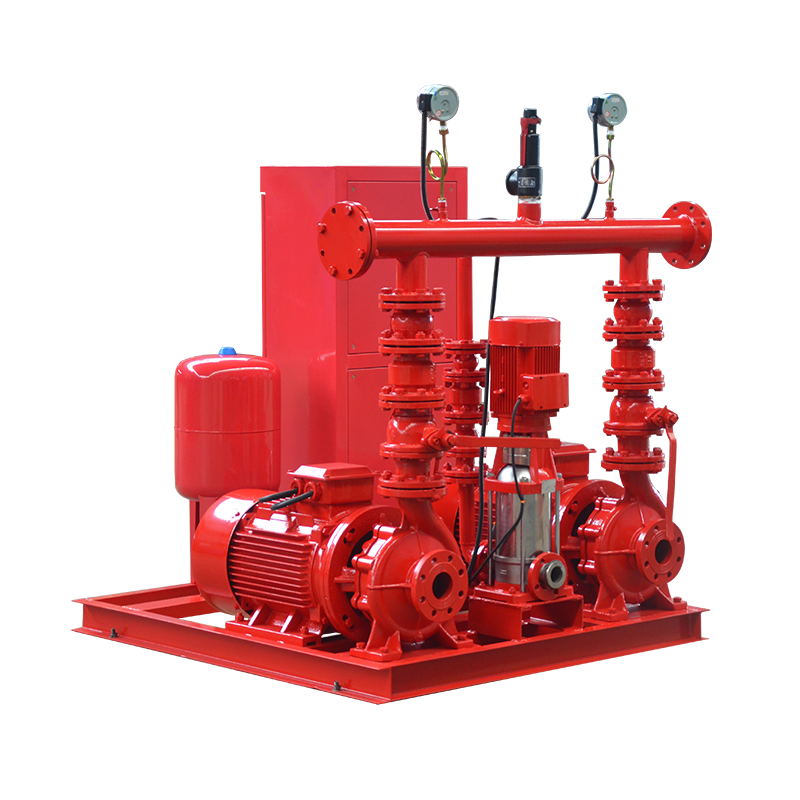

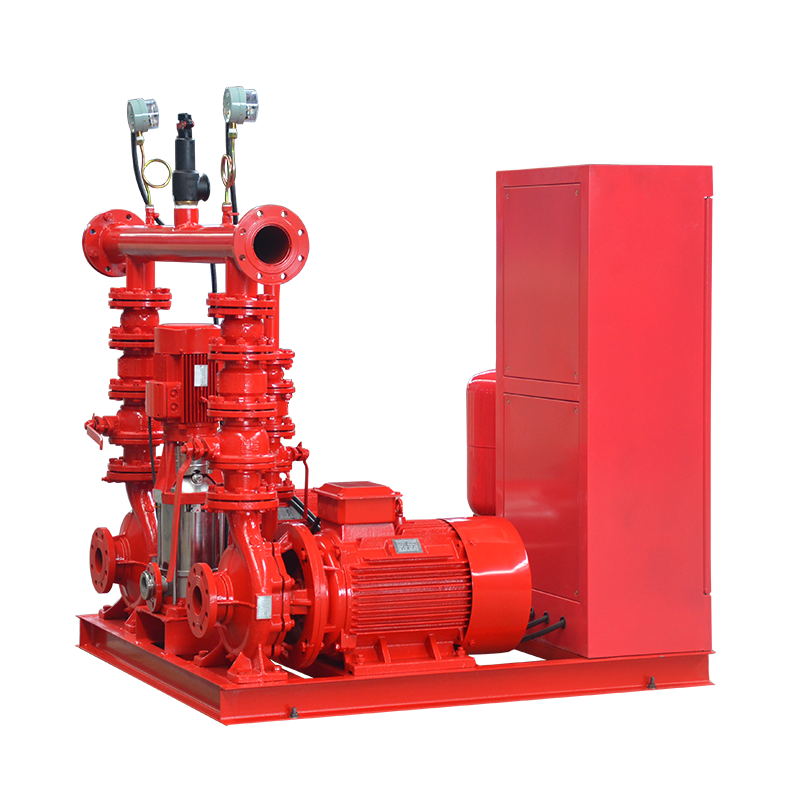

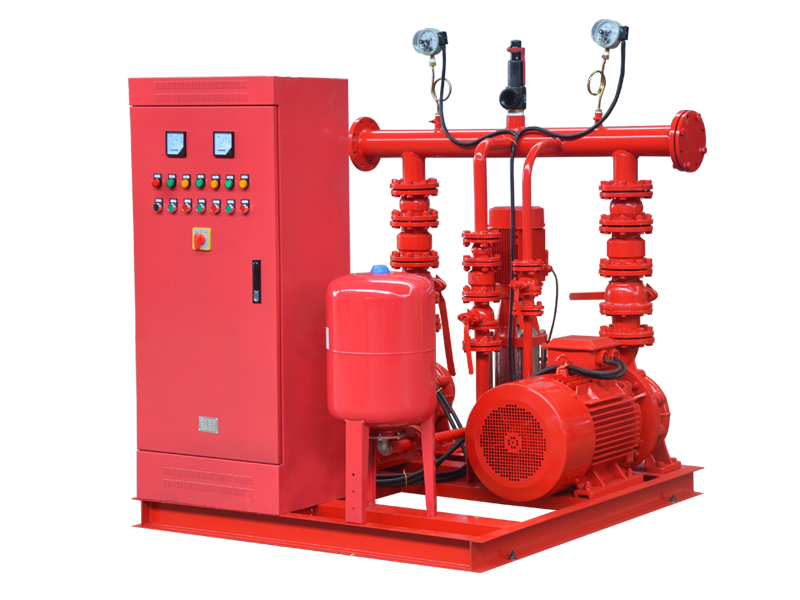

EEJ fire pump set (Two Electric pumps+Jockey pump)

1. Two Electric pumps, one duty one standby can use single stage pump, horizontal split case pump, end suction pump, multistage pump,
material can be cast iron, stainless steel, and bronze impeller

2. Jockey pump, horizontal or vertical, capacity will be small, but head should be higher than electric and diesel engine pump

3. Control panel: Auto Control of electric pump, one duty one standby and Jockey Pump with overload, over current protection

4. Accessories: check valve, gate valve, pressure vessel, generally 0.6mpa, 1.0mpa, 1.6mpa, Pressure Gauge, Pressure Sensor,
Common Pipe for Suction and Discharge, Flexible Joints and Flanges, Common Base plant

Product Structure

EEJ Fire pump system is made of 2electric pump+jockey pump

Operation: 1 Duty (electric) + 1 standby (electric) + 1 Jockey

Capacity: 100, 150, 200, 300, 400, 500, 750, 1000...GPM with pressure 4, 5, 6, 8, 10... Bar.

Pressure vessel 25, 50, 75, 100...liters, pressure will be 0.6mpa, 1.0mpa, 1.6mpa, select according to pump head.

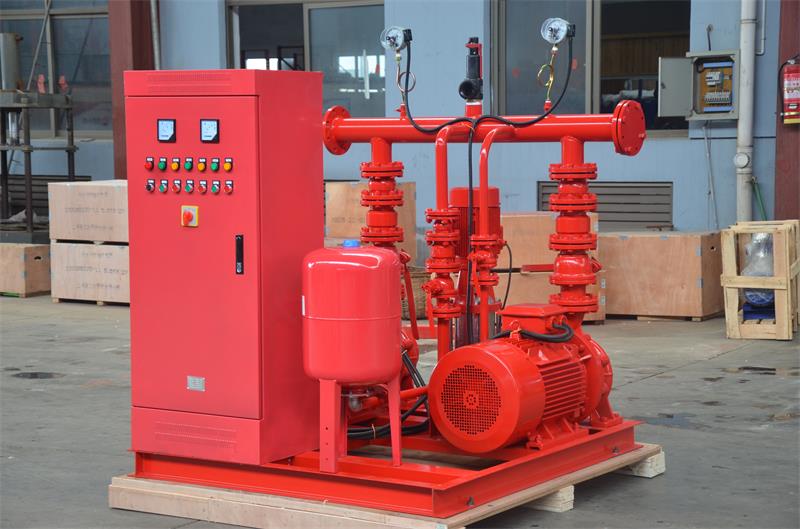

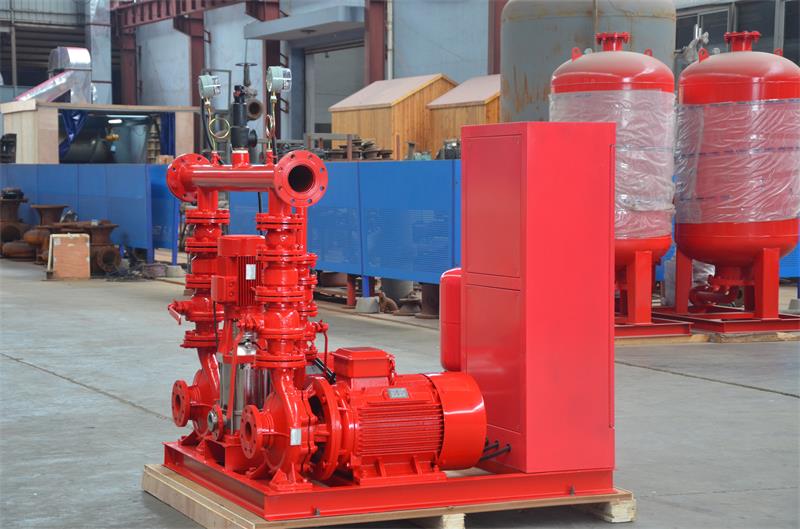

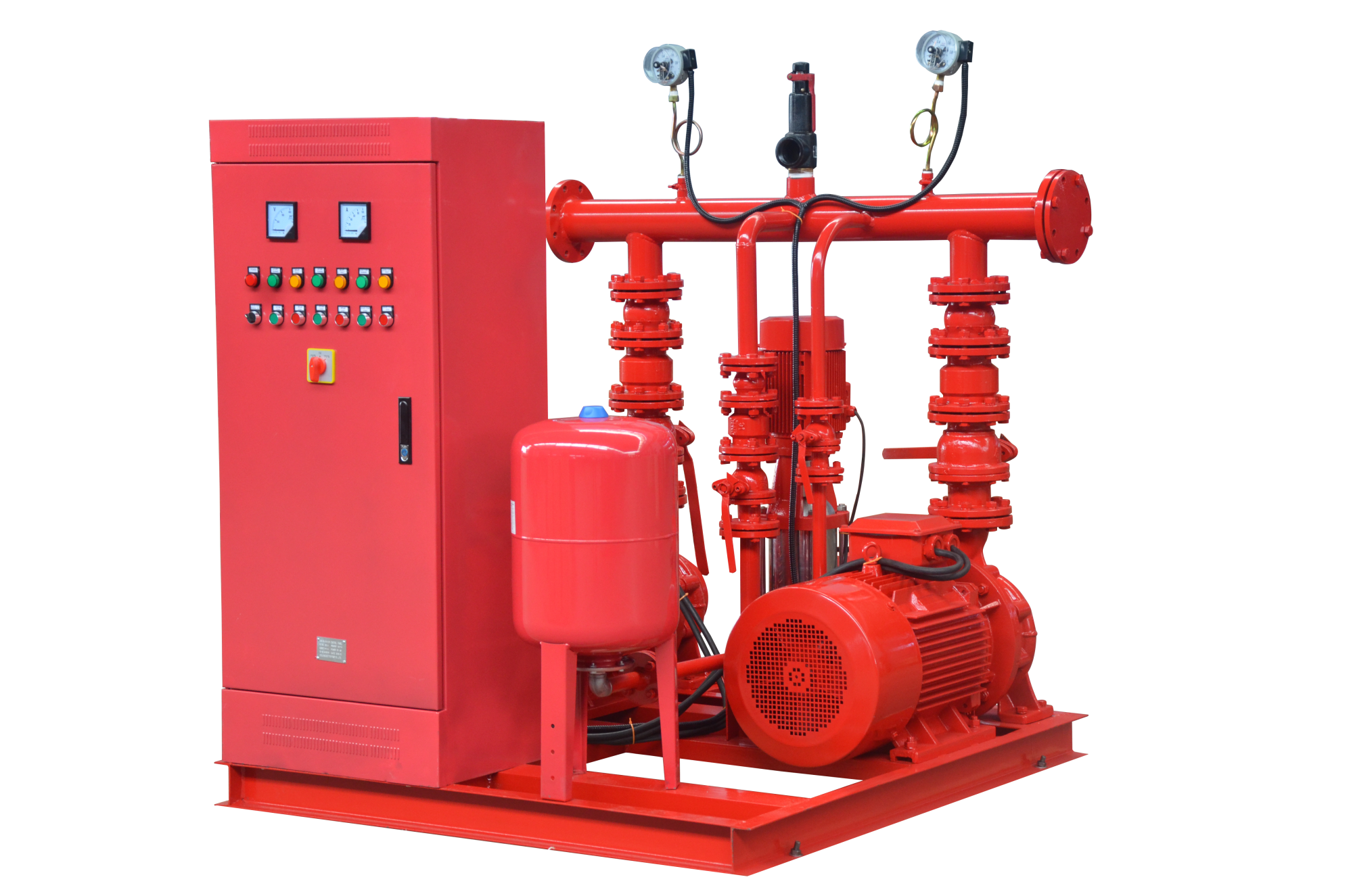

electric fire pump system

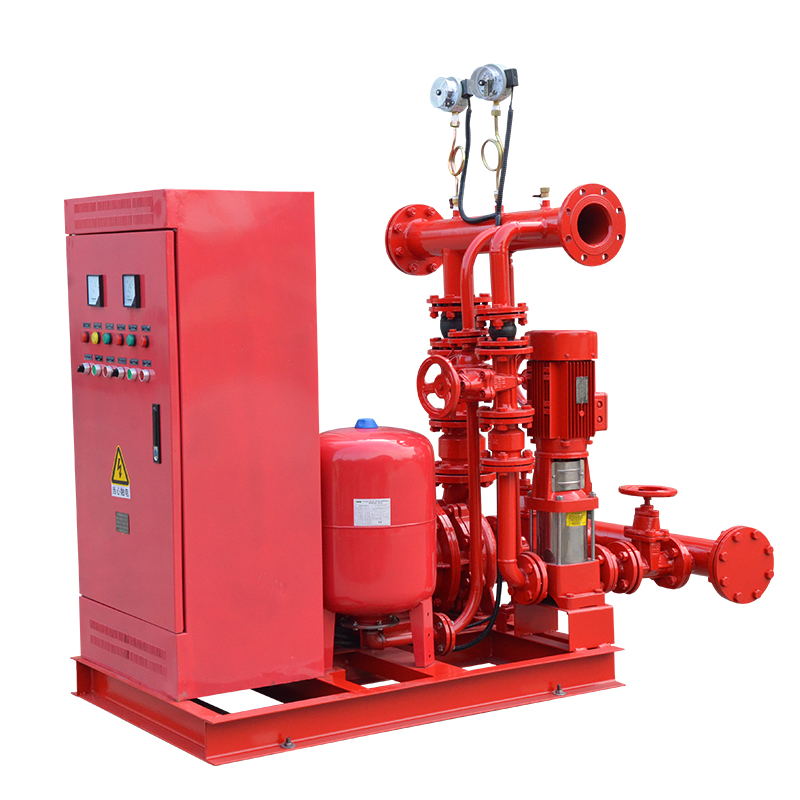

 electric fire pump set



Specifications

Fire pump system is made of E+E+J

Operation: 1 Duty (electric) + 1 standby (electric) + 1 Jockey

Capacity: 100, 150, 200, 300, 400, 500, 750, 1000...GPM with pressure 4, 5, 6, 8, 10... Bar.

Pressure vessel 25, 50, 75, 100...liters, pressure will be 0.6mpa, 1.0mpa, 1.6mpa, select according to pump head.





Application Scope

Equipment for warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers and other occasions of a fire service.


Using Instruction

Altitude ≤ 1000m;

Ambient temperature: +5 °C ~ +40 °C;

Relative humidity: <= 90%.

1. Performance curve

A. Electric Fire pump



B. Jockey Fire Pump
