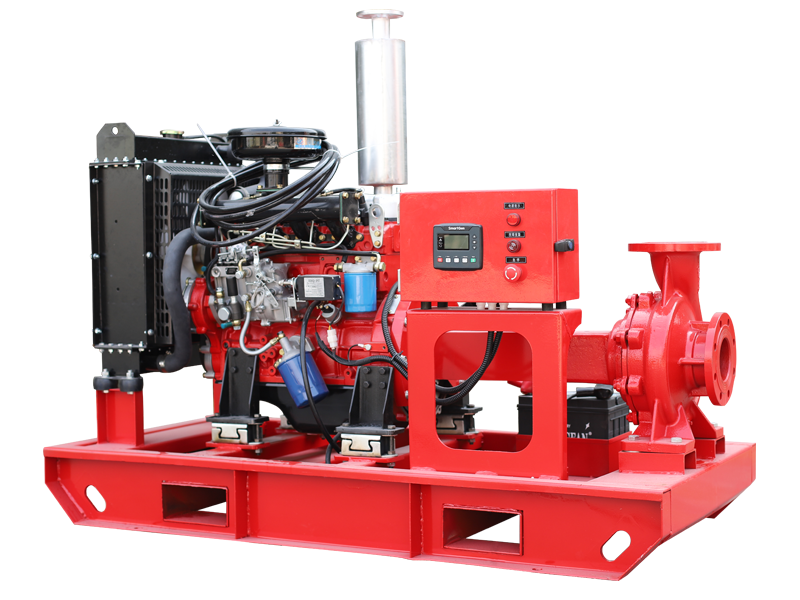

XBC-IS Diesel End Suction Fire Pump

Flow: 80.0-2500 gpm / 5-158 l/s

Head: 2-16 bar / 29-232 psi

Caliber: 50-250mm

Power: 3-220kW

Speed: 1500-2600r/min

Working Pressure: 1.6MPa

If you want to get more product information please contact us!

  • Introduction
  • Structure
  • Applicatioms
  • Technical Data

Product Introduction of XBC-IS series Diesel Fire Pump

ISW series horizontal single-stage single-suction centrifugal pump is a new generation of energy saving, environment friendly horizontal centrifugal pump researched and developed by our company, which absorbs advanced technology of similar products abroad and adopts domestic general performance parameters of centrifugal pumps.

In addition, according to different operation temperatures and mediums, we developed the hot-water pump(ISWR), corrosion-resistant chemical pump(ISWH) and oil pump (ISWB). This pump enjoys excellent performance, good reliability, long operation life, reasonable construction and nice appearance, which is outstanding in the industry.



Advantages

1. The impeller is installed on the major axis of the motor directly, the axial is short in size, the structure is compact, can calibrate

radial and axial load that produced by pump rounding effectively, thus guaranteed the pump operating steadily, vibration, and

low noise.

2. The axle seal adopts machinery seal or machinery seal sets, uses imported titanium alloy sealed ring, medium-sized high-

temperature resistance machinery seal and adopts the hard alloy material, wear-resisting seal, which can lengthen the life of

machinery seal effectively.

3. It is convenient to install and overhaul, no need to dismantle or move pipeline system; just lifting off pump conjunction flat nut

can take all rotor parts out.

4. Can choose series or parallel operation according to your requirements for flow and lift.

5. Can be installed horizontally according to the pipeline system requirements.



Main Features

The pump is the horizontal structure, the inlet and outlet are the same in diameter, and lying in the same center line, which can be

installed in the pipeline as valve, the floor space needed is small, if the protection cover is added, it can be put in the open air.

Application Scope

1-- Applicable for the XBC series Diesel Fire Pump control made in this Co., and also for the diesel engine fire-fighting pump and diesel generator controls of users.
2-- It is applicable for water supply for fire service and emergency water supply.
3-- Suitable for the fire-fighting water supply and emergency water supply in storehouse, yard, airport, petroleum and chemical industry, power plant liquefied gas, textile, ship, and oil ship etc. occasions.



Using Instruction

1. The height of the machine room should be depended on the equipment’s height and the lifting apparatus, 3-5m ad the effective height in general.
2. To ensure a good ventilation inside of the machine room, the temperature there should not be over 40°C and enough venting temperature holes must be set.
3. When to mount both inlet and outlet pipes of the fire-fighting pump, do not let their weight loading on the pump so as to prevent it against damage and its performance of running from being affected.
4. It is not allowed to mount the control cabinet in the front of the diesel engine’s radiator, otherwise the electric components inside of the cabinet would be affected and not work normally.







Performance curve

Parameters Specifications

Model Flow(m3/h) Head(mpa) Power(kw) Speed (rpm) Caliber (mm)
XBC2/5-IS 2600 5 0.2 3 65/65
XBC8/5-IS 2000 5 0.8 7.5 50/50
XBC6/10-IS 2000 10 0.6 22 100/100
XBC3/15-IS 2600 15 0.3 11 80/80
XBC10/15-TSWA 1500 15 1 37 100/100
XBC5/20-IS 2000 20 0.5 22 125/125
XBC8/20-DA 1500 20 0.8 30 100/100
XBC2.0/25(30)-D 1500 25/30 0.2 11 125/125
XBC9.0/25(30)-D 1500 25/30 0.9 55 125/125
XBC14.0/25(30)-D 1500 25/30 1.4 75 125/125
XBC8/35(40/45)-DA 1500 35/40/45 0.8 75 150/150
XBC21.0/35(40/45)-DA 1500 35/40/45 2.1 160 150/150
XBC2/50(55/60)-W 1500 50/55/60 0.2 18.5 150/150
XBC15/50(55/60)-D 1500 50/55/60 1.5 132 150/150
XBC5/80(85/90)-W 1500 80/85/90 0.5 75 200/200
XBC8/80(85/90)-W 1500 80/85/90 0.8 90 200/200
XBC1.6/80(85/90)-W 1500 80/85/90 1.6 200 200/200
XBC2/100(110/120)-W 1500 100/110/120 0.2 45 250/250
XBC6/100(110/120)-W 1500 100/110/120 0.6 110 200/200
XBC13/100(110/120)-W 1500 100/110/120 1.3 220 250/250
XBC5(6)/100(110/120)-S 1500 100/110/120 0.5 132 250/150
XBC6(7/8)/180(190/200)-S 1500 180/190/200 0.6 315 250/150
XBC5/250-S 1500 250 0.5 220 250/200
XBC7/300-S 1500 300 0.7 315 300/250
XBC10/300-S 1500 300 1 630 350/250
XBC7/350-S 1500 350 0.7 355 300/250
XBC12/350-S 1500 350 1.2 710 350/250
MORE SPECIFICATIONS PLEASE CONTACT US.
