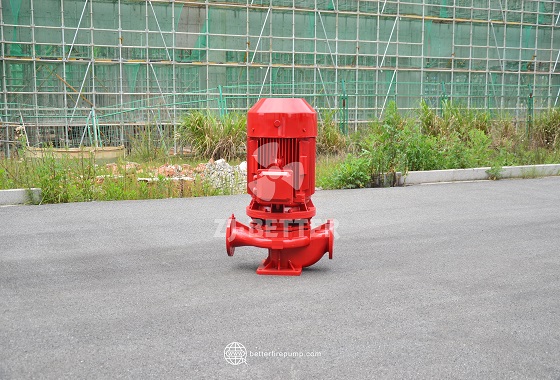

1. Vertical Structure Saves Installation Space
The vertical fire booster pump adopts a structure where the motor and pump body are arranged vertically, requiring less floor space compared to some traditional horizontal equipment. For building projects with limited fire pump room space, a reasonable layout can reduce the equipment installation area while facilitating connection to the fire pipeline network.
2. High-Efficiency Electric Drive
The product uses an electric motor as its power source. The motor and pump shaft are connected in a compact manner, allowing direct drive of the impeller. According to the official website, the power of related products ranges from 0.75 to 160 kW, and the appropriate power configuration can be selected according to different flow rate and head requirements.
3. Stable Pressure Boosting Capacity
The core function of the fire booster pump is to increase the pressure of fire-fighting water flow. Through the high-speed rotation of the centrifugal impeller, the mechanical energy input from the motor is converted into the kinetic and pressure energy of the water flow, enabling the equipment to provide stable pressure support for the fire-fighting pipe network.
4. Flexible Matching of Flow Rate and Head
Different fire-fighting projects have different requirements for water supply and pressure; therefore, the product offers a wide range of parameter selection. Related models cover flow rates from 1 to 300 L/s and heads from 0.15 to 1.6 MPa, facilitating selection based on building height, pipe network resistance, and terminal pressure.
5. High Coaxiality Design
The motor shaft and pump shaft are coaxial, improving the concentricity of the transmission system and reducing vibration and noise caused by shaft misalignment during operation. A well-designed shaft system contributes to improved equipment stability and provides a solid foundation for long-term use.
6. Optimized Impeller Hydraulic Performance
The impeller is the core component of the fire pump for pressurized delivery. Its blades drive the water flow at high speed, energizing the water and converting it into pressure within the pump body. A well-designed impeller structure helps maintain stable flow and pressure output.
7. Reliable Sealing Structure
The product is equipped with a mechanical seal, reducing the risk of media leakage from the pump shaft during operation. According to relevant data, the mechanical seal uses a combination of stainless steel, hard alloy, and media-resistant rubber, which helps improve sealing reliability and service life.
8. Convenient Operational Status Monitoring
The pump body is equipped with a pressure monitoring interface, allowing for observation of the equipment's operating pressure with a pressure gauge. An exhaust structure also helps remove air from inside the pump body. These structural designs facilitate easier monitoring of the equipment's operating status and routine inspections.
9. Applicable to Multiple Fire Protection Systems
Vertical fire booster pumps can be used in fixed fire hydrant systems, automatic sprinkler systems, and fire water supply projects for various types of buildings. They can also be used in public buildings, industrial facilities, and other locations requiring fire booster water supply.
10. Convenient Project Selection and Configuration
Products can be configured according to the flow rate, head, pipe diameter, power, and installation space of the fire protection project. Related product diameters range from 25 to 500 mm, and speeds range from approximately 960 to 2900 r/min, providing a wide selection range for fire protection pipe networks of different sizes.
Vertical fire booster pumps provide reliable pressure boosting capabilities for fire protection pipe networks through their compact vertical structure, high-efficiency electric drive, stable hydraulic performance, and flexible parameter configuration. Their small installation space requirements, high coaxiality transmission structure, reliable mechanical seal, and easy-to-monitor pump body design make the product better suited for building fire protection, industrial fire protection, automatic sprinkler, and fixed fire hydrant systems. By selecting the appropriate type based on the actual project's flow rate, head, pipe diameter, and installation conditions, the water supply performance of the vertical fire booster pump can be fully utilized, establishing a stable and efficient pressure guarantee for the fire protection system.
