1. Independent Diesel Power

The system utilizes a diesel engine as the primary power source for the main fire pump, driving it via a mechanical transmission. This configuration is ideal for projects that mandate a diesel-powered fire water supply. The diesel engine, fire pump, and auxiliary components are carefully matched and selected based on the required flow rate, head, and specific operating conditions.



2. Versatile Pump Options

Depending on the project’s flow rate, head, and installation constraints, the main pump can be configured as a single-stage pump, end-suction pump, horizontal split-case pump, or multi-stage pump. Each type offers distinct hydraulic performance characteristics and installation requirements, allowing for a configuration tailored to the specific design parameters of the fire protection system.



3. Coordinated Operation of Main and Pressure-Maintenance Pumps

The package features a combination of a main fire pump and a pressure-maintenance (jockey) pump. The main pump handles the primary fire-fighting water supply, while the pressure-maintenance pump—designed for a lower flow rate and higher head—compensates for pressure fluctuations in the piping network, ensuring the system remains at the required standby pressure.



4. Pressure Vessel for Pressure Storage

The system can be equipped with a pressure vessel to store pressure and regulate the fire-fighting piping network. Available pressure vessel capacities typically include 25, 50, 75, and 100 liters, with pressure ratings of 0.6 MPa, 1.0 MPa, or 1.6 MPa. The specific vessel must be selected to align with the pump’s head and the overall system design requirements.

5. Automatic Control and Operation Management

The control cabinet enables automatic operation of the diesel fire pump and the jockey (pressure-maintenance) pump, while incorporating protective features such as overload and overcurrent protection. Pressure sensors transmit pressure-change signals to the control system, allowing the equipment to operate according to pre-set parameters and minimizing the need for manual intervention.



6. Integrated Piping and Accessories

In addition to the power unit and pump assembly, the system can integrate components such as check valves, gate valves, pressure gauges, pressure sensors, common suction and discharge headers, flexible connectors, and flanges. Consolidating these key components simplifies on-site connections and reduces the complexity of coordinating interfaces between different pieces of equipment.



7. Centralized Installation on a Common Base

The diesel engine, fire pump, jockey pump, and control components are mounted on a common base, forming a cohesive, integrated unit. This unified layout facilitates transportation, positioning, and on-site installation, while also streamlining future inspection and maintenance of the power system, pump assembly, and control components.



8. Wide Range of Flow and Head Capacities

According to official product documentation, these diesel fire pump sets offer flow capacities ranging from 30 to 9,000 GPM and head pressures of approximately 3 to 20 bar. Specific performance depends on the selected pump model, diesel engine power, rotational speed, and system operating conditions. For actual projects, the appropriate model should be selected based on the required fire-protection design flow rate and pressure.



9. Versatility for Various Engineering Applications

These integrated diesel fire pump sets are suitable for fire-water supply in a wide range of environments, including warehouses, docks, airports, petrochemical plants, power stations, liquefied gas facilities, textile mills, ships, and oil tankers. The main pump, diesel engine, and pressure-maintenance system can be configured to suit specific project requirements, taking into account building scale, water source conditions, pipeline network pressure, and available installation space.



10. Simplified Engineering Selection and Maintenance

The integrated design consolidates the power unit, pumping components, pressure-maintenance system, controls, and piping accessories, allowing engineering personnel to select the complete system based on specific design parameters. During equipment operation and maintenance, inspections can be structured around the diesel engine, water pump, jockey pump (pressure-maintaining pump), control cabinet, and pressure components, which helps in establishing a clear and systematic maintenance workflow.

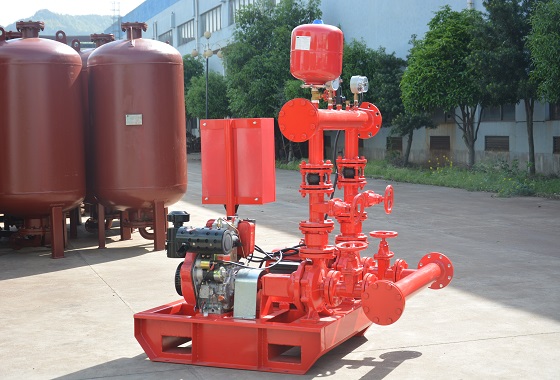

A complete diesel-powered fire pump system integrates a diesel engine, a main fire pump, a jockey pump, a pressure tank, an automatic control cabinet, and piping accessories into a cohesive fire-fighting water supply unit. Its core advantages include centralized configuration, an independent power source, and flexible pump selection; the system can be custom-designed to meet the specific flow rate, head, pressure, and installation requirements of individual projects. In practical application, the diesel engine, water pumps, and pressure components must be appropriately matched according to the design specifications of the fire-fighting system, ensuring that the entire assembly provides a stable and reliable water supply under the required operating conditions.
