1. Motor drive ensures stable power delivery
This product utilizes an electric motor as the primary drive unit. The motor rotates the pump shaft and impeller, converting mechanical energy into hydraulic pressure energy to ensure the continuous delivery of fire-fighting water. The electric drive configuration offers immediate response, making it well-suited for integration with building fire-fighting piping networks and fixed water supply systems.
2. Compact structure saves installation space

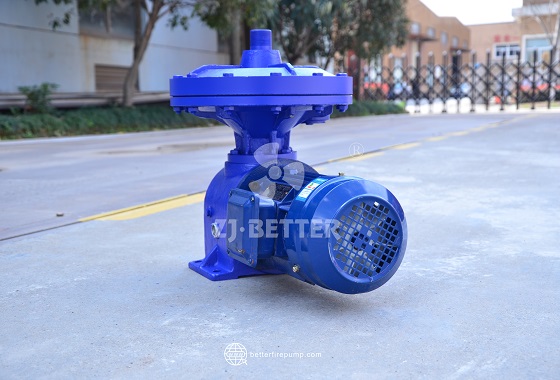

As shown in the image, the motor and pump body are arranged in a compact, integrated layout. With no complex external framework, the unit occupies minimal space. For building projects with limited pump room area, this design facilitates efficient equipment placement while leaving adequate room for piping and maintenance access.
3. Centrifugal pump design ideal for fire-fighting water supply
The electric fire pump generates centrifugal force through the high-speed rotation of the impeller, pressurizing the water entering the pump and delivering it to the fire-fighting piping network. The product range includes various configurations—such as vertical and horizontal single-stage or multi-stage centrifugal pumps—to meet the hydraulic requirements of diverse fire-fighting systems.
4. Customizable flow rate and head
Fire-fighting systems have varying requirements for water volume and pressure depending on building height, piping network layout, and the specific area being protected. The product series covers a wide range of flow rates and heads; for instance, certain models offer flow rates of 1–300 L/s and heads of 0.15–1.6 MPa, allowing for selection based on actual operating conditions.
5. Motor power matched to operating conditions
Motor power is directly linked to the operational performance of the fire pump. The electric fire pump series offers various power configurations—ranging from low-power units to high-capacity pumps—allowing for the selection of an optimal setup based on flow rate, head, rotational speed, and piping system resistance.
6. Synergistic Operation of Pump Body and Motor
Proper matching among the pump body, motor, shaft, and impeller is essential for stable power transmission and hydraulic output. The compact overall structure shown in the image facilitates an integrated power transmission unit, minimizing complex connection requirements between components.
7. Suitable for Fixed Fire Water Supply Systems
Designed primarily for fixed fire water supply applications, these electric pumps serve building fire protection systems, industrial fire facilities, and other scenarios requiring sustained water pressure. Depending on project scale, they can be integrated with jockey pumps, control systems, valves, and piping to form a complete fire pump assembly.
8. Diverse Configurations to Suit Various Installation Conditions
Fire protection projects vary in their spatial and hydraulic requirements; consequently, these electric fire pumps come in multiple configurations. The product range includes vertical/horizontal single-stage pumps, vertical turbine fire pumps, and multistage centrifugal pumps, allowing for optimal selection based on installation location, flow rate, head, and pipe diameter.
9. Facilitates Efficient Pump Room Layout
Compact electric fire pumps enable designers to plan pump room space more effectively. Installation layouts can integrate inlet/outlet piping, valves, control cabinets, and maintenance access, resulting in a clear, organized equipment configuration that also accommodates routine inspection and maintenance needs.
10. Providing Core Power for Fire Water Supply Systems
As a critical component of fire water supply systems, the electric fire pump is responsible for delivering water from the source to the piping network. By properly matching the pump type, motor power, flow rate, and head, the equipment can be tailored to the specific water supply requirements of a fire protection project, establishing a reliable hydraulic foundation.
Driven by an electric motor, these high-efficiency fire pumps utilize a compact pump-and-motor assembly to deliver water, offering excellent flexibility for equipment layout within the limited space of a pump room. Equipment selection can be tailored to specific project requirements by considering factors such as pump type, flow rate, head, motor power, pipe diameter, and installation method. For stationary fire water supply systems in buildings and industrial facilities, the proper configuration of electric fire pumps helps establish a fire water supply system that is well-aligned with the project's needs.
