1. Independent Diesel Power

The unit employs a diesel engine to drive the fire pump, eliminating total reliance on a fixed power grid. This independent power source allows the pump to operate during power instability or when emergency backup water supply is required, enhancing the system's adaptability to diverse operating conditions.



2. Optimized Power Matching

The diesel engine's power output is matched to the fire pump's flow rate, head, pressure, rotational speed, and actual operating conditions. Proper power configuration ensures the engine output aligns with the pump unit's operational requirements, providing the necessary power for stable performance.



3. Configurable Pump Types

Depending on specific project requirements, the unit can be equipped with various pump configurations—such as single-stage, end-suction, horizontal split-case (double-suction), and multi-stage pumps—to suit different flow rates, heads, and piping network conditions, thereby meeting diverse design specifications.



4. Stable Fire Water Supply

The fire pump converts the mechanical energy from the diesel engine into water pressure via impeller rotation, delivering the required water volume to fire hydrants, sprinkler systems, and fire piping networks. Careful selection of pump types and operating parameters helps maintain consistent flow and head output.



5. Centralized Control and Management

The unit features a control cabinet for centralized management of the diesel fire pump and related equipment. It supports automatic or manual operation and incorporates functions such as pressure monitoring, status display, and fault alarms, facilitating ease of operation and daily maintenance.



6. Pressure Monitoring

Depending on the system configuration, the unit can be equipped with monitoring components—such as pressure gauges and sensors—to track pressure levels in the fire piping network and the pump unit itself. Changes in system pressure generate signals that assist the control system in making operational decisions, allowing for real-time monitoring of the equipment's status.

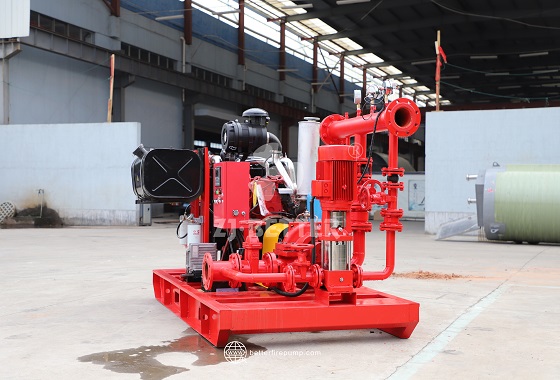

7. Integrated Skid-Mounted Structure

The diesel engine, fire pump, control cabinet, and associated piping components are mounted on a common base to form a complete skid-mounted unit. As the unit is fully assembled at the factory, on-site work is primarily limited to positioning the equipment and connecting interfaces such as inlet and outlet piping, thereby reducing the on-site installation workload.



8. Compact Layout Design

The power, pumping, and control systems feature a centralized layout that minimizes the space required for installation and facilitates transport, lifting, positioning, and maintenance. This compact structure offers excellent adaptability for equipment placement in fire protection projects where efficient use of pump room space is essential.



9. Flexible Selection of Flow Rate and Head

Fire protection projects vary in their requirements for flow rate and head; therefore, the unit must be selected based on specific design parameters. These diesel fire pump packages cover a wide range of flow rates and heads, with specific specifications determined by actual project requirements.



10. Suitable for Diverse Fire Protection Scenarios

Diesel fire pump units are suitable for facilities requiring high reliability in fire water supply—such as industrial plants, logistics warehouses, commercial buildings, docks, airports, power facilities, and petrochemical plants—and can be configured with appropriate power sources, pump types, and control systems based on project conditions.



By effectively integrating the diesel engine, fire pump, and control system, these units provide independent power, stable pumping, pressure monitoring, and centralized control, while the skid-mounted structure enhances ease of installation and maintenance. Professional selection—based on design flow rate, head, pressure, water source conditions, and the installation environment—ensures the unit's performance aligns with actual fire water supply needs, thereby providing reliable emergency water supply support for fire protection systems.
