ZJBetter UL listed fire pump set

2020-12-08

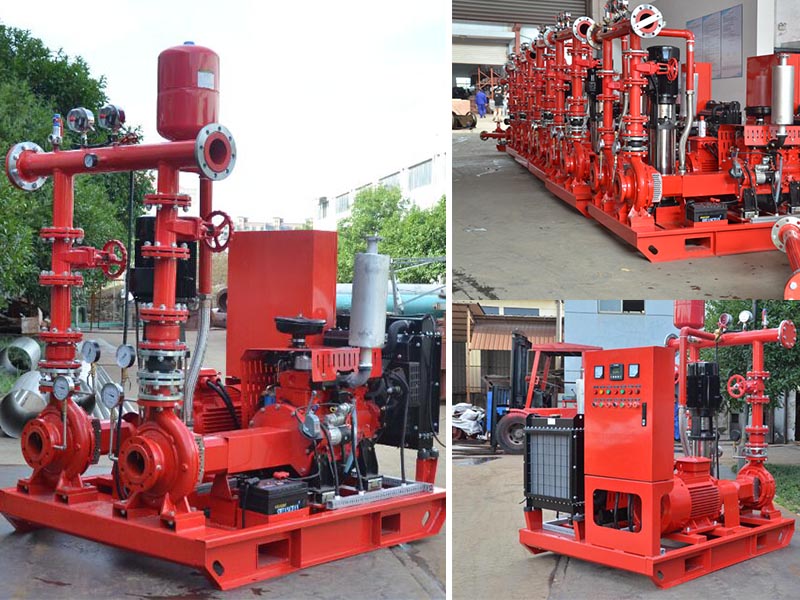

UL-EDJ fire pump set

Configuration : UL pump + UL motor +UL diesel engine + UL control panel +UL valve+ jockey pump other accessory
Flow 200-500 GPM
Rated pressure: 103-224 PSI
Speed: 2950-3550 RPM (50hz or 60hz)
Maximum working pressure: 280 PSI

EDJ Fire Pump System
1.Electric pump as main pump in EDJ fire pump set, can use end suction pump , horizontal split case pump, vertical turbine pump and so on
2. Diesel engine pump as standby pump in EDJ fire pump set, can use end suction pump , horizontal split case pump, vertical turbine pump and so on, the flow and head should keep same with electric pump. Otherwise, diesel engine assembly configuration must be meet NFPA20 standard, like enough space oil tank, engine cooling system and control system
3. Main pump and standby pump flow normal as 50、100、150、200、250、300、400、450、500、750、1000、1500、2000、2500 and 3000GPM
4. Jockey pump need meet NFPA 20 standard, but head should be 10-15 m higher than electric and diesel engine pump, normal flow as 25、50、100GPM
5. Control panel: Auto Control of electric pump, diesel engine pump and Jockey Pump, can separate cabinet also can together in one cabinet
6.Pressure level: Main-fold , pressure gauges, pressure sensor, valve, flexible joint and flange pressure normal as 6 bar(87psi)、10 bar(145psi)、16 bar(232psi)、25 bar(362psi)
7. Pipe valves and other accessories include: main-fold, pressure gauges, pressure sensors, valves, flexible joints and flanges, common base skid, fasteners, pipe seals, etc. Installation requirements must meet the requirements of NAPA20 standard

Application Scope:
Various fire hydrants, fire main pump spray pump;
• Suitable for a variety of fire booster and constant—pressure pump occasions;
• A variety of villas, residential and other fire-fighting system;
• Industrial and civil construction of fire water system.
• For a variety of depots, oil loading dock, logistics parks and other high fire demanding occasions.
