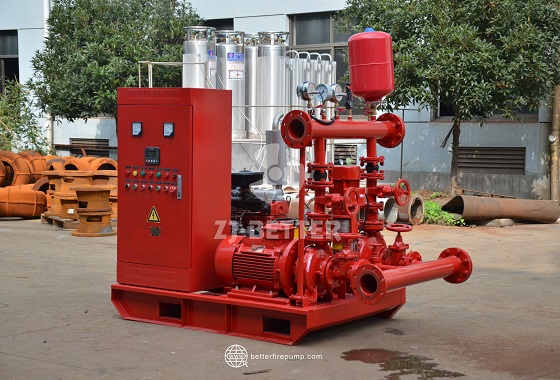

1. Modular Integrated Design for Rapid Deployment in Multiple Scenarios: The intelligent control diesel fire pump system adopts a modular design, integrating the main diesel pump, electrical control cabinet, piping system, base, fuel tank, water tank, and pressure stabilizing unit onto a single platform. This allows for overall transportation, rapid hoisting, and quick docking. Compared to traditional bulk installation methods, this equipment significantly reduces on-site piping installation and commissioning time, avoiding project delays caused by system incompatibility. The modular structure allows for flexible configuration adjustments based on project needs, such as adding pressure-stabilizing pumps, backup power generation modules, and remote communication interfaces to meet the site requirements of different environments, including chemical plants, outdoor fire pump rooms, deluge systems, and sprinkler systems.



2. High-performance diesel main pump ensures stable water supply during fires. The core advantage of diesel engine-driven fire pumps lies in their independence from external power sources. This equipment is equipped with a high-performance diesel power system, featuring rapid start-up, powerful output, and long-term continuous operation. Even in the event of a power outage or grid fluctuations at a fire scene, the diesel main pump can still guarantee a stable water supply, meeting the pressure requirements of fire codes for the most unfavorable points. The main pump can be selected as a multi-stage pump, end-suction pump, or horizontal centrifugal pump, providing various head and flow combinations according to building height and flow requirements. The engine is equipped with a large-capacity fuel tank, supporting several hours of continuous operation, ensuring that water supply is not interrupted due to insufficient fuel in critical moments.



3. Intelligent Control System for Fully Automated Start-up and Operation Management

The intelligent control system is the core of this complete set of equipment. Through modules such as a programmable logic controller (PLC), LCD display unit, pressure sensor, and flow monitor, it achieves fully automated logical management from start-up to shutdown. When the system pressure drops to the lower limit of the set range, the controller automatically determines the fire alarm requirement and sequentially starts the pressure stabilizing pump, main pump, or diesel engine to ensure immediate water supply response. Simultaneously, the system can monitor real-time status data such as speed, water pressure, oil temperature, and battery voltage during operation, promptly alarming or taking protective measures in case of abnormalities. For example, in high-temperature operation or abnormal pressure, the system will automatically adjust the operating mode or provide voice alarm reminders for inspection to ensure equipment stability and safety.



4. Real-time Monitoring and Remote Communication Functions for Improved Management Efficiency

To meet the needs of smart fire protection development, this equipment supports multiple remote monitoring protocols and can be connected to fire control centers, BMS, building automation systems, or dedicated cloud platforms to achieve remote status monitoring, historical data query, and alarm information push. Management personnel can monitor key parameters such as diesel engine speed, operating status, residual fuel, pressure data, and pump set running time in real time via computer, mobile phone, or large-screen system. When equipment malfunctions, such as low oil level, high water temperature, or abnormal battery voltage, the system can promptly alert maintenance personnel via SMS, network, or audible and visual alarms, reducing potential hazards. Remote monitoring eliminates the need for 24-hour on-site personnel, improving operational efficiency and reducing labor costs.



5. Precise pressure stabilization system ensures stable pressure at low flow rates.

In actual fire-fighting water supply systems, slight pressure fluctuations occur when depressurizing at low flow rates or when sprinkler heads are activated. This equipment is equipped with an independent pressure-stabilizing pump and pressure tank, using intelligent control algorithms to maintain stable pressure under minute changes. When the pressure drops slightly, the pressure-stabilizing pump automatically replenishes the pressure without activating the main diesel pump, avoiding wear and fuel waste caused by frequent diesel engine operation. The internal energy storage design of the pressure-stabilizing tank allows for rapid response to micro-flow demands, making it an indispensable auxiliary device for sprinkler systems in high-rise buildings, hotels, and warehouses. The presence of a pressure stabilizing system ensures that the main pump only starts in a true fire alarm situation, thereby improving the service life and reliability of the entire system.



6. Durable Structure and Industrial-Grade Materials for Harsh Working Environments

To cope with outdoor, corrosive, or high-humidity environments, this complete set of equipment uses a thick steel plate welded base, anti-corrosion spraying process, industrial-grade pipe fittings and valves. All key components have passed pressure testing and durability verification. The electrical components inside the control cabinet are selected from highly reliable industrial parts, possessing characteristics such as moisture resistance, shock resistance, and high-temperature resistance. The overall piping system has undergone multiple pressure tests to ensure good sealing performance during long-term high-pressure operation. Optional configurations include rainproof covers, soundproof boxes, and stainless steel piping, ensuring high stability in cold, humid, dusty, and corrosive environments, guaranteeing normal water supply in critical moments.



7. Multiple Protection and Alarm Mechanisms to Enhance Fire Safety Levels

The intelligent control diesel fire pump complete set of equipment incorporates multiple active protection functions, including low oil pressure protection, high water temperature protection, overspeed protection, battery low voltage alarm, and main pump interlock protection. When the system detects any potential fault, it automatically executes protective actions and issues an alarm signal. Furthermore, the system features manual/automatic mode switching and supports automatic periodic checks to ensure the equipment is always ready for immediate use. Through the intelligent alarm mechanism, managers can promptly detect and address equipment anomalies, effectively reducing the risk of the fire protection system failing during critical fire moments.



8. Flexible and Compatible Design, Connectable to Various Fire Protection Systems

This complete set of equipment is compatible with various fire protection piping networks, including sprinkler systems, fire hydrant systems, misting systems, and foam systems, suitable for different system needs in industrial, commercial, civil, and municipal applications. Its inlet and outlet flange dimensions, pressure ratings, and interface standards all comply with domestic and international fire protection codes, enabling rapid matching with design drawings or user site requirements. Whether for new projects or retrofitting existing systems, the equipment can be adapted to connect with existing control systems through piping and signal interfaces. This flexible and compatible design allows the equipment to be applied in more scenarios, improving the overall applicability of the fire protection system.



9. Energy-Saving and Consumption-Reducing Design, Lowering Long-Term Operating Costs

This equipment incorporates energy-saving concepts into its power system, pressure stabilization module, piping structure, and control program to reduce unnecessary energy consumption. For example, the pressure stabilizing pump uses a high-efficiency motor and optimized impeller structure to maintain low energy consumption in low-flow operating environments. The diesel engine fuel system achieves higher combustion efficiency through intelligent adjustment of fuel supply. The piping layout adopts a low-resistance design to reduce hydraulic losses, thereby reducing the load on the main pump. The fully automatic control system avoids frequent diesel engine starts, significantly reducing wear and fuel waste. Through multi-field energy-saving measures, users' operating costs can be effectively reduced.





10. Easy-Maintaining Design Reduces Downtime and Improves Equipment Availability

The equipment is designed with daily maintenance needs in mind. Key components such as filters, water pump seals, batteries, hoses, and sensors are all externally mounted or easily accessible for quick replacement or inspection. The control system provides fault code prompts to help maintenance personnel quickly locate problems. The diesel engine and water pump sections can be used for operational data acquisition and debugging through professional testing interfaces. The overall equipment structure is compact yet has ample maintenance space, reducing maintenance difficulty. With remote monitoring capabilities, the equipment can predict its status, schedule maintenance in advance, avoid unexpected downtime, and improve the overall reliability of the fire protection system.



The intelligent control diesel fire pump system integrates diesel power, a pressure stabilization system, intelligent control, remote monitoring, and multiple safety protections, comprehensively upgrading traditional fire water supply equipment into an automated, intelligent, and highly reliable advanced system. It can provide continuous, stable, and powerful fire water supply in critical moments, while maintaining the advantages of low maintenance, high compatibility, and easy management. It is widely applicable to various scenarios such as industrial, commercial, municipal, and large-scale complexes. For any organization looking to upgrade its fire protection system and enhance building safety, this equipment is undoubtedly an ideal upgrade choice.
