1. Motor drive ensures stable power

This fire pump utilizes an electric motor as its power source. The motor drives the pump shaft and impeller to rotate at high speeds, converting electrical energy into mechanical energy and boosting water pressure through centrifugal action. The motor and pump body are optimally matched to provide stable power output for the fire-fighting system.

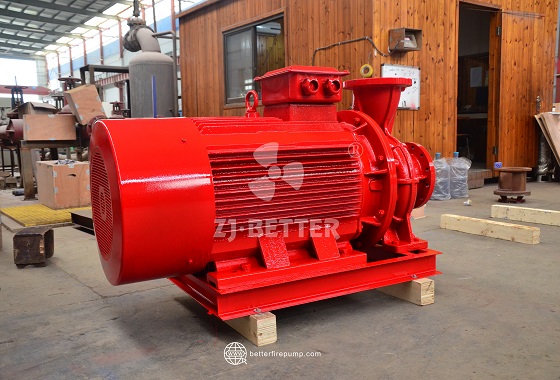

2. Horizontal structure facilitates installation

The product features a horizontal design, with the motor and pump body arranged horizontally on a stable base. The layout is intuitive, simplifying pump room planning and the connection of inlet and outlet piping. This horizontal configuration is highly adaptable for fire pump rooms with ample space.



3. Centrifugal impeller enables pressure boosting and water delivery

The impeller is a key component for hydraulic delivery. Driven by the motor, the impeller imparts energy to the water entering the pump body via centrifugal force. The pump's flow passages then convert kinetic energy (velocity) into pressure energy, generating the continuous pressure required for fire-fighting water supply.



4. Flexible matching of flow rate and head

Fire protection requirements for flow rate and head vary across different building and industrial projects; therefore, pumps must be selected according to specific design parameters. This series of horizontal electric fire pumps offers a wide range of specifications—with flow rates from 1 to 300 L/s and heads from 0.15 to 1.6 MPa—allowing for model selection based on project-specific calculations.



5. High concentricity between pump shaft and motor

Maintaining precise concentricity between the pump shaft and the motor minimizes mechanical vibration and energy loss caused by shaft misalignment during operation. An optimized shaft design improves operational performance, providing a solid mechanical foundation for long-term operation and routine maintenance.



6. Mechanical seal reduces leakage risk

The product employs a mechanical seal design to effectively seal the pump shaft area. Product specifications indicate that sealing components can be made from materials such as stainless steel, tungsten carbide, and media-resistant rubber; this helps minimize fluid leakage during operation while ensuring wear resistance and a long service life.



7. Structural features that facilitate operation

The pump casing is equipped with a pressure gauge port for monitoring operating pressure; an air release device helps evacuate air from the pump chamber, while a drainage structure allows for the easy removal of internal fluid during maintenance. These features simplify equipment startup, operational checks, and routine maintenance.



8. Stable pressure to meet fire protection network requirements

Fire pumps must deliver the specific pressure and flow rates dictated by the system's design parameters. By selecting the appropriate pump model, impeller, and motor power, the equipment can be matched to the fire protection network's specifications, providing the necessary hydraulic support for fixed systems such as fire hydrants and automatic sprinklers.



9. Suitable for various fire water supply scenarios

These horizontal electric fire pumps are suitable for fixed fire hydrant systems, automatic sprinkler systems, and fire water supply projects across commercial, industrial, and municipal sectors. Models can be selected based on specific requirements—such as fire water demand, network pressure, and installation conditions—to suit diverse environments like warehouses, factories, and public buildings.



10. Easy inspection and routine maintenance

The horizontal configuration provides a clear layout of key components—including the motor, pump casing, shaft, and seals—allowing professionals to conduct regular inspections based on operating conditions. Integrated features for pressure monitoring, air release, and drainage further streamline equipment maintenance and operational management.



Horizontal motor-driven fire pumps achieve stable fire water delivery through the coordinated operation of the motor, shaft, impeller, and casing. Their horizontal design facilitates installation, while features such as a high-concentricity shaft system, mechanical seals, and various auxiliary components ensure stable operation. With proper model selection based on project-specific flow, head, pipe diameter, and power requirements, these pumps can be effectively utilized in a wide range of fixed fire water supply systems.
