1. System Overview: Integrated Design of Core Fire Protection Equipment

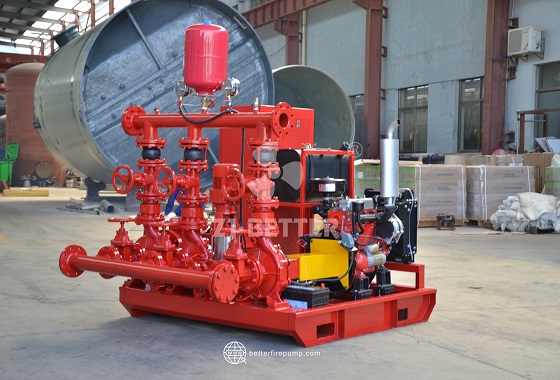

An integrated fire pump station is a complete set of equipment that integrates fire pumps, pressure-stabilizing pumps, piping systems, electrical control systems, and auxiliary equipment into a single base or enclosure. It adopts a modular structure, high integration, and small footprint, and can be customized according to different buildings and working conditions. Compared with traditional decentralized fire protection systems, this solution offers significant improvements in structural compactness, ease of maintenance, and system response speed. 1. **Unified Control and Centralized Deployment:** The entire system can quickly start and stop and automatically switch during a fire, ensuring a continuous and stable fire-fighting water supply.



2. **Powerful Performance:** High-efficiency fire pumps provide ample water pressure. The core fire pump unit is the "heart" of the entire system. The pump body is made of high-strength cast iron, and the impeller undergoes precise balancing to ensure high efficiency and low noise during operation. The coupling design between the motor and the pump body is optimized to minimize energy loss. Pump stations can be configured with single, dual, or multiple pumps in parallel to meet the water pressure requirements of different building heights or sprinkler systems. Whether in underground parking garages, large shopping malls, or high-rise buildings, the pump station can stably output high head and large flow rate, ensuring sufficient water pressure at every fire-fighting node.



3. **Intelligent Control System:** Automated management enhances emergency response speed. The control system adopts an intelligent architecture combining a PLC programmable logic controller and a touchscreen human-machine interface, featuring automatic start/stop, manual operation, remote monitoring, and fault alarm functions. The system monitors changes in pressure points in real time and automatically adjusts the pump unit's start/stop status to maintain constant pipeline pressure. In the event of a main pump failure, the standby pump will automatically switch operation, ensuring an uninterrupted fire water supply. The control panel features a simple and intuitive design, allowing users to remotely view data and manage maintenance via intelligent modules, significantly improving the reliability and ease of operation of the fire protection system.



4. Pressure Stabilizing Unit: Ensuring System Readiness at All Times

Under normal, non-fire conditions, the pressure stabilizing pump in the system maintains the basic pressure of the pipeline network, preventing energy waste and equipment wear caused by frequent start-stop of the main pump. The pressure stabilizing pump, combined with a pressure tank, automatically replenishes pressure through the principle of air-water balance, ensuring the pipeline is always in optimal working condition. When the pressure drops to the set value, the pressure stabilizing pump automatically starts and automatically stops when the pressure recovers. This pressure stabilizing device is not only energy-efficient but also extends the life of the main pump, providing a guarantee for the long-term stable operation of the system.



5. Modular Structure: Convenient Installation and Easy Maintenance

The pump station adopts an integrated skid-mounted structure. The system assembly and commissioning are completed before leaving the factory; on-site, only the inlet and outlet water pipes and power supply need to be connected for immediate use. This "install and use" design greatly shortens the construction cycle and reduces the risk of installation errors. All key components are rationally laid out, and the piping and wiring are neat, facilitating future maintenance and replacement. The modular advantages of this system are particularly prominent for projects requiring rapid deployment, such as industrial parks, temporary fire stations, or newly built commercial complexes.



6. Durable and Protective Design: Adaptable to Complex Environments

The entire system employs an anti-corrosion coating process, and external structural components possess excellent oxidation resistance, enabling stable operation in high humidity, high temperature, or dusty environments. The electrical control cabinet has a high protection level, offering excellent waterproof and dustproof performance, suitable for outdoor or semi-open-air installation. Furthermore, all electrical components are selected from high-quality industrial-grade products, ensuring high durability and a low failure rate. This robust and durable structural design allows the pump station to operate efficiently for extended periods even in harsh environments, meeting the needs of various industrial and municipal applications.



7. Energy Saving and High Efficiency: Optimized Operation Reduces Energy Costs

Through variable frequency control technology and intelligent start-stop algorithms, the pump station can automatically adjust the motor speed according to changes in system pressure, achieving on-demand water supply. This control method not only significantly reduces energy consumption but also reduces mechanical impact on equipment, extending the overall service life of the system. The pump unit efficiency can reach over 85%, with an overall energy efficiency improvement of approximately 20% compared to traditional systems. In long-term operation, this energy-saving characteristic saves users significant operating costs while meeting the requirements of green building and sustainable development.



8. Safety and Reliability: Multiple Protections Ensure Stable System Operation

The system possesses a comprehensive safety protection mechanism, including motor overload protection, phase sequence protection, pressure anomaly alarm, water level monitoring, and temperature monitoring. When any parameter exceeds the set range, the system will immediately alarm and take corresponding protective measures. Indicator lights and displays on the control panel provide real-time feedback on equipment status, allowing operators to promptly monitor operation. Multiple safety protection designs ensure the fire pump station maintains reliable operation in any emergency, providing a solid barrier for fire safety.



9. Wide Applicability: Meets the Firefighting Needs of Multiple Industries

The integrated fire pump station is suitable for various scenarios such as high-rise residential buildings, commercial complexes, hospitals, schools, airports, subway stations, industrial plants, and warehousing centers. It can be flexibly configured with flow rate, head, pump type, and control method according to project requirements, meeting different design specifications and application standards. Whether for sprinkler systems, fire hydrant systems, or foam extinguishing systems, this equipment serves as a core water supply unit, providing a stable and reliable water source.



10. Customized Engineering and Global Applications: Meeting International Standards The pump station design strictly adheres to international fire protection standards (such as NFPA, ISO, and EN standards) and can be customized to suit the voltage, frequency, and environmental conditions of different countries and regions. The factory provides complete factory inspection reports and performance test data, ensuring that each unit undergoes rigorous quality control before delivery. With its high performance and flexible configuration, this system has been widely used in overseas building projects and industrial facilities, becoming a trusted fire water supply solution for customers worldwide.



The integrated fire pump station, with its high integration, intelligent control, energy efficiency, and superior reliability, has become an important component of modern building fire protection systems. It not only meets the stringent requirements of high-rise buildings and industrial sites for continuous water supply and high pressure but also provides users with a highly safe, low-maintenance, systematic fire protection solution through advanced automation and modular design. Regardless of the application scenario, this equipment safeguards fire safety with superior performance, providing solid protection for life and property.
