1. Independent Diesel Power

The system utilizes a diesel engine to power the main fire pump, establishing an independent power configuration suitable for projects requiring backup power and emergency water supply capabilities. The diesel engine's power output is matched to parameters such as the fire pump's flow rate and head.



2. Main Fire Pump for Pressurized Supply

The main fire pump serves as the core hydraulic component of the system, responsible for transporting fire water and providing necessary pressure. Depending on project specifications, various pump types may be selected, such as end-suction pumps, horizontal split-case (double-suction) pumps, vertical multistage pumps, vertical in-line pumps, or vertical turbine pumps.



3. Real-Time Pressure Monitoring and Control Support

The system can be equipped with pressure gauges, pressure sensors, and other detection components to monitor pressure within the fire piping network. These components transmit signals to the control system, providing the operational data needed to start/stop the pumps and regulate pressure, thereby ensuring control aligns with actual system pressure requirements.



4. Automatic Control for Operational Management

The control cabinet centrally manages the diesel fire pump, pressure-stabilizing pump, and auxiliary equipment. Depending on the configuration, it supports automatic or manual operation, start-up control, status monitoring, and fault alarms, while also offering protective functions such as overcurrent and overload protection.



5. Pressure-Stabilizing Pump for Network Pressure Maintenance

The pressure-stabilizing pump typically has a lower capacity than the main fire pump but may be designed with a higher head to handle minor, routine pressure fluctuations in the fire piping network. When system pressure drops, the pump restores pressure, thereby preventing the main fire pump from starting frequently due to slight pressure variations.



6. Pressure Tank for Pressure Buffering

Depending on system design requirements, the unit can be equipped with a pressure tank to store pressurized fire water and buffer pressure fluctuations within the piping network. The tank's capacity and operating pressure are selected based on the fire pump's head and the system's pressure requirements.

7. Comprehensive Auxiliary Piping Components

The equipment can be configured with components such as check valves, gate valves, pressure gauges, pressure sensors, flanges, flexible joints, and shared inlet/outlet piping to establish a complete connection between the fire pumps, pressure maintenance system, and the on-site fire piping network.

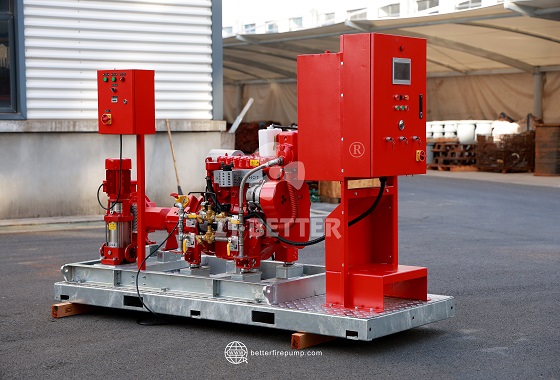

8. Skid-Mounted Structure Facilitates Installation

The diesel engine, fire pumps, pressure maintenance equipment, and associated piping components can be centrally mounted on a unified base, forming a complete skid-mounted unit. This layout simplifies transportation, positioning, on-site piping connections, and subsequent inspection and maintenance.



9. Flexible Parameter Configuration

Fire pump types, diesel engine power, pressure maintenance pumps, and pressure components can be matched according to the specific flow rate, head, pressure, pipe diameter, and installation conditions of the fire protection project. The product series covers a wide range of flow rates and heads, with specific parameters determined by the project design.



10. Suitable for Various Fire Water Supply Scenarios

This type of equipment is applicable to fire water supply projects for industrial plants, logistics warehouses, ports, airports, petrochemical facilities, and large-scale buildings. Specific configurations should be determined based on fire system design parameters, water supply requirements, and on-site installation conditions.



By integrating components such as an independent diesel power source, main fire pumps, pressure maintenance pumps, pressure monitoring and storage systems, and automatic controls, the diesel fire pump and pressure stabilization unit combines fire pumping and pressure management functions into a single system. Parameters and components can be selected to suit specific project conditions; the system meets fire water supply requirements while facilitating equipment management, installation, and maintenance, thereby providing a tailored, comprehensive water supply solution for industrial and other fire protection projects.
