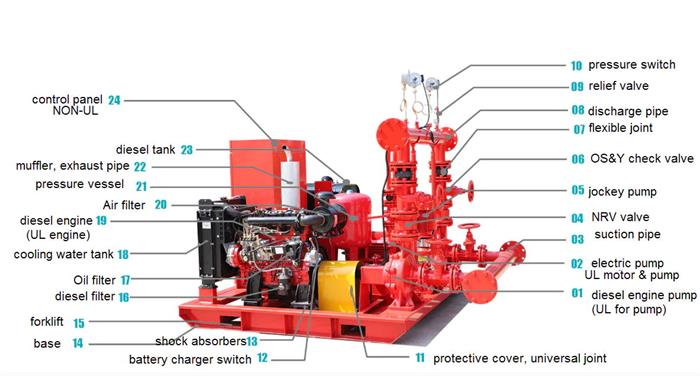

Fire pump is a critical component of a fire protection system that helps deliver water or other fire suppression agents at high pressure to extinguish fires effectively. The main parts of a fire pump can vary slightly depending on the specific design and manufacturer, but generally, the key components include:
Pump Casing: The outer shell of the pump that contains and protects the internal components. It's designed to handle high pressures and maintain the structural integrity of the pump.
Impeller: The impeller is a rotating component that consists of curved blades. As it rotates, it imparts energy to the water, increasing its pressure and velocity. Impellers come in various designs to optimize performance for different types of fire pumps.
Shaft: The shaft connects the impeller to the pump's motor or engine. It transfers the rotational energy from the motor/engine to the impeller, causing it to spin and pump water.
Seals and Bearings: Seals prevent water from leaking out of the pump and protect the internal components from contamination. Bearings support the shaft, allowing it to rotate smoothly.
Pump Driver: This can be an electric motor or an internal combustion engine (diesel or gasoline). The driver provides the power to turn the impeller and generate the necessary pressure to move water through the fire protection system.
Coupling: A device that connects the pump driver (motor or engine) to the pump shaft, enabling the transfer of power from the driver to the impeller.
Inlet and Outlet Ports: These are the connections through which water enters the pump (inlet) and exits the pump at high pressure (outlet). They are usually equipped with valves for controlling water flow and pressure.
Pressure Relief Valve: This safety device releases excess pressure from the pump and system to prevent damage. It ensures that the pressure remains within safe operating limits.
Control Panel: In modern fire pumps, a control panel provides various functionalities, including starting and stopping the pump, monitoring pressure and other vital parameters, and triggering alarms.
Primers: Some fire pumps require priming to remove air from the pump casing and the suction line, ensuring that water can be drawn effectively into the pump.
Suction Strainer: A mesh or perforated screen that prevents debris and larger particles from entering the pump, which could potentially damage the impeller or other components.
Baseplate and Mounting: The pump is typically mounted on a baseplate that helps secure it to the foundation and provides stability.
These components work together to create the necessary pressure and flow of water required for effective firefighting. It's important to note that fire pumps come in various sizes and configurations to suit different applications, from small residential systems to large industrial installations.
