1. System Overview and Working Principle The variable frequency constant pressure fire water supply system is an intelligent water supply device with an electric centrifugal pump as its core and variable frequency control technology. Its main principle is to precisely adjust the motor speed through a frequency converter, maintaining the pump outlet pressure within a set range. When the system pressure decreases, the controller automatically increases the motor speed to compensate for the pressure increase; when the pressure rises, the speed decreases to prevent overpressure, thus achieving constant pressure water supply. This automatic adjustment method avoids the frequent start-stop problems of traditional fixed-speed pumps, improving system lifespan and operational stability. Simultaneously, this system can be linked with the main fire pump, pressure-stabilizing pump, and control cabinet to form a complete automated fire water supply network.



2. Core Components and Structural Features

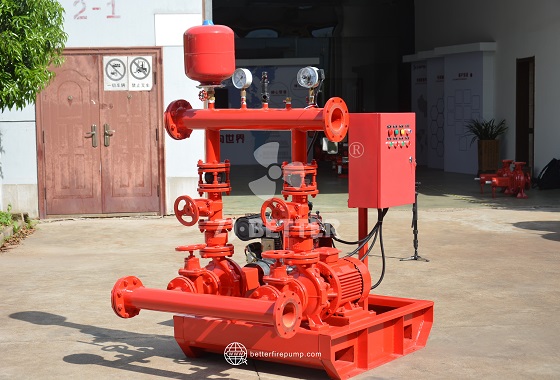

The system typically consists of a main pump, frequency converter, pressure sensor, electrical control cabinet, pressure stabilizing tank, and valve pipelines. The main pump provides the power for water supply, while the frequency converter is the "heart" of the system, controlling the motor speed to achieve constant pressure regulation. The electrical control cabinet integrates multiple protection and control functions, including overload protection, phase loss protection, and short circuit protection, ensuring safe equipment operation. The pressure sensor monitors the pipeline pressure in real time and feeds it back to the control system, achieving closed-loop control. The pressure stabilizing tank absorbs pressure fluctuations, ensuring stable water supply. This modular design not only facilitates installation and maintenance but also allows for customized configuration according to different project requirements.



3. Advantages of Variable Frequency Control Technology

Variable frequency technology is the core technology of this system. By adjusting the motor frequency, linear changes in pump speed are achieved, ensuring that the system output pressure always matches the pipeline demand. This precise control method effectively reduces energy consumption and saves operating costs. Compared to traditional fixed-speed water supply methods, variable frequency systems can maintain high efficiency under low load conditions, avoiding mechanical losses caused by frequent start-stop cycles. Furthermore, variable frequency control can be programmed with soft start and soft stop functions according to system requirements, reducing water hammer and extending the service life of pipe networks and equipment. This technology makes the system not only stable and reliable but also provides excellent energy savings.



4. The Importance of Constant Pressure Water Supply for Fire Safety

In fire protection systems, the stability of water supply pressure determines fire extinguishing efficiency and coverage. Excessive pressure fluctuations can lead to uneven sprinkler spraying or abnormal valve operation. Variable frequency constant pressure systems ensure constant pressure by adjusting pump speed in real time, thereby guaranteeing stable sprinkler output and uniform water flow, meeting the needs for rapid suppression in the early stages of a fire. Simultaneously, the system can automatically adjust output under different floor levels and pipe resistance conditions, making it particularly suitable for complex fire protection networks in high-rise buildings or large complexes. This constant pressure water supply capability effectively improves the response speed and reliability of the entire fire protection system.



5. Dual Advantages of Energy Saving and Environmental Protection

Traditional fire pump systems maintain full speed operation even under low demand, resulting in energy waste. The variable frequency constant pressure system can automatically adjust the pump speed according to actual pressure demand, significantly reducing energy consumption under low load. Statistics show that its energy saving rate can reach 30%-50%. Furthermore, the system operates with low noise and minimal equipment vibration, resulting in a smaller environmental impact. Soft-start technology reduces current surges, extending motor life and reducing instantaneous load impact on the power grid. These energy-saving characteristics make it an ideal fire-fighting water supply solution for green buildings and sustainable development projects.



6. Intelligent Control System and Automatic Protection Functions The system is equipped with advanced PLC or microcomputer control modules, featuring automatic operation, automatic alarm, and data monitoring functions. Operators can monitor and adjust parameters in real time via a touchscreen or remote monitoring interface. In case of abnormal conditions (such as water shortage, overload, or overheating), the system will immediately alarm and automatically shut down for protection. Some models also support remote control and cloud data management, enabling intelligent inspection and operation report generation. This intelligent control design not only improves operational convenience but also greatly enhances system safety and reliability.



7. Easy Installation and Maintenance

This system typically features an integrated base design, undergoing rigorous testing and debugging before leaving the factory. Users only need to connect pipes and power to put it into operation, significantly shortening the on-site construction cycle. The main components are rationally laid out, facilitating later maintenance and replacement. The system has self-diagnostic capabilities, enabling early detection of potential faults and reducing downtime. Maintenance personnel can perform scientific maintenance based on real-time data provided by the control interface, significantly reducing labor costs and maintenance frequency. This user-friendly structural design makes it an efficient choice for engineering installation and subsequent operation and maintenance.



8. Applicable Fields and Scenarios

Variable frequency constant pressure fire water supply systems are widely used in high-rise buildings, underground parking garages, airports, hospitals, factories, warehousing centers, and large commercial complexes. Its excellent pressure control performance can meet the fire protection needs of different scenarios. For example, in areas with extremely high requirements for power and stability, such as hospitals or data centers, this system can ensure uninterrupted fire water supply through dual power switching and emergency operation modes. In industrial parks or warehousing areas, its high efficiency and energy-saving characteristics help users reduce long-term operating costs, balancing safety and economic benefits.



9. Compliance with International Standards and Testing Requirements

The system's design and manufacturing strictly adhere to national and international fire protection standards, such as GB6245, NFPA20, and ISO9001. All key components undergo performance testing and pressure testing to ensure the product meets stringent quality requirements. The electrical system has passed high-standard safety certification, possessing an IP54 or higher protection rating, effectively preventing dust and moisture intrusion. The piping system employs anti-corrosion coating treatment, extending equipment lifespan. Through these standardized designs and testing, the system can be widely applied globally, meeting the regulatory requirements of projects worldwide.



10. Future Development Trends and Technological Upgrade Directions

With the popularization of IoT and AI technologies, variable frequency constant pressure fire water supply systems are developing towards greater intelligence. Future systems will integrate more sensors and remote monitoring modules, enabling cloud-based analysis of operational data and intelligent predictive maintenance. AI algorithms can automatically optimize pump speed curves based on building usage frequency and environmental changes, further improving energy efficiency and response speed. Simultaneously, the system's modular and standardized design will make it easier to integrate with other fire protection subsystems (such as sprinklers, alarms, and monitoring) to form a truly intelligent integrated fire protection platform.



Variable frequency constant pressure fire-fighting water supply systems, with their precise pressure control, superior energy-saving performance, and comprehensive intelligent management functions, are gradually replacing traditional water supply methods and becoming the mainstream choice for modern building fire protection systems. They not only improve the stability and reliability of fire-fighting water supply but also provide strong support for energy conservation, emission reduction, and the development of intelligent buildings. With continuous technological advancements, this system will play an even more important role in future fire protection projects, becoming a solid barrier to protect life and property.
