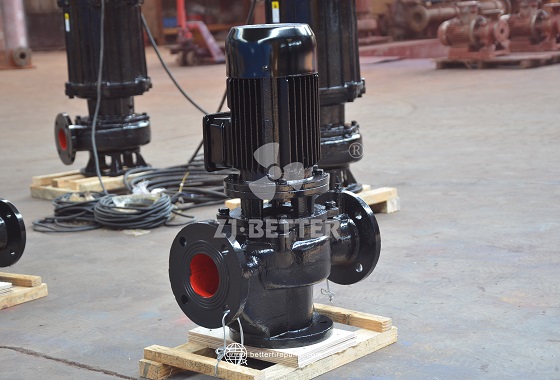

1. Structural Design Advantages of Vertical Single-Stage Fire Pumps Vertical single-stage fire pumps adopt a vertical layout structure, allowing the motor and pump body to be vertically connected via the same axis. This not only effectively shortens the pump body length and reduces ground space occupation but also improves transmission stability. In scenarios with limited space in the fire pump room, this structure maximizes the use of vertical space and improves the overall layout flexibility. Furthermore, the vertical structure reduces the risk of misalignment in the coupling, resulting in less vibration and lower noise during pump operation. Its single-stage impeller design reduces internal fluid resistance and makes the internal flow channels of the pump body smoother, improving overall efficiency. For fire protection systems, this design enables faster and more stable output of fire-fighting water, providing reliable hydraulic support in critical moments.



2. Hydraulic Optimization and Efficiency Improvement of Single-Stage Impeller

In terms of hydraulic performance, the vertical single-stage fire pump adopts an optimized single-stage centrifugal impeller design. CFD fluid simulation technology is used to optimize details such as blade shape, flow channel angle, and impeller inlet orientation, significantly reducing turbulent losses within the pump. Its advantages are not only reflected in improved rated flow and head performance, but also in a significant increase in energy efficiency ratio. The single-stage impeller structure reduces energy loss points common in multi-stage pumps, resulting in a smoother efficiency curve, suitable for continuous and stable water supply scenarios. In fire emergency situations, the pump set needs to start quickly and reach rated operating conditions. The single-stage impeller has the advantages of fast response speed and stable flow output, helping to establish sufficient pressure for the fire protection system in the first instance.



3. High-Reliability Matching Design of Motor and Pump Bearings

The vertical single-stage fire pump employs high-precision machining and reinforced support structures in the matching design of the motor and pump body bearings, ensuring accurate concentricity of the pump shaft and improving operational stability. The pump shaft is made of materials with higher strength and better corrosion resistance, capable of withstanding long-term high-load operation. Fire pumps mostly use high-temperature resistant, high-efficiency motors, whose insulation class, temperature rise standard, and protection class all meet the high-intensity operation requirements of fire protection systems. The stable connection between the motor end cover and the pump body base ensures that the pump unit maintains a low-vibration state even during high-speed operation, extending bearing life. This matching design of motor and pump bearings is particularly crucial for fire protection systems that require long-term standby and sudden high-load startup.



4. Footprint Advantages and Installation Flexibility of Vertical Design

One of the most significant advantages of vertical single-stage fire pumps is the saving of equipment floor space. Compared to horizontal fire pumps, their vertical structure allows the pump unit to be installed in narrow fire machine rooms, basements, equipment shafts, and other environments, significantly reducing building space costs. Furthermore, because its suction and discharge ports are designed on the same horizontal line, the piping layout is simpler, reducing installation difficulty and head loss. For renovation projects, upgrades to old machine rooms, or new projects with limited space, vertical single-stage fire pumps can easily meet stringent layout requirements, exhibiting strong deployment adaptability.



5. Material Selection and Enhanced Corrosion Resistance

In complex operating conditions, fire pumps often face environments with high humidity, large temperature differences, and even some corrosive substances, making material selection particularly important. Vertical single-stage fire pumps typically use cast iron, stainless steel, or other high-strength, corrosion-resistant materials for the pump body, impeller, and shaft, ensuring stable performance even under long-term immersion and humid conditions. Some models are also equipped with wear-resistant mechanical seals, effectively reducing seal wear and improving the long-term sealing performance of the pump body. In addition, surface spraying with an anti-corrosion coating can further extend the pump body's lifespan, preventing problems such as rough flow channels and reduced efficiency due to corrosion, providing a longer operational guarantee for the fire protection system.



6. Wide Applicability to Diverse Working Conditions

Vertical single-stage fire pumps exhibit excellent adaptability to various working conditions, operating stably in high-rise buildings, commercial complexes, industrial plants, municipal fire water tanks, and underground fire pump rooms. Their high flow rate and medium-to-high head performance meet the pressure requirements of main fire pump systems, while their stable starting performance makes them suitable for combined operation with pressure-stabilizing pumps, sprinkler systems, and fire hydrant systems. Even in complex environments such as high temperature, high humidity, and high dust levels, the pump units maintain high reliability, making them widely used in various engineering projects. For fire protection systems requiring long-term standby and sudden rapid start-up, vertical single-stage fire pumps can remain readily available without frequent maintenance.



7. Application and Linkage Capabilities of Automated Control Systems

Modern fire protection systems increasingly emphasize automation and linkage response capabilities. Vertical single-stage fire pumps are typically equipped with intelligent control cabinets, enabling functions such as automatic inspection, automatic start/stop, fault alarms, and remote monitoring. In the event of a fire, the fire pump can be activated in conjunction with the fire alarm system, sprinkler system, and fire hydrant system to ensure the water supply system quickly enters a working state. Through pressure sensors, flow switches, and other equipment, the system can monitor water pressure changes in real time and automatically adjust or replenish pressure, improving the overall intelligence level of the fire protection system. Automated control not only improves fire response efficiency but also reduces manual maintenance costs.



8. Optimized Sealing Structure and Leakage Control Technology

To address the challenges of seal wear caused by long-term operation and frequent start-stop cycles, the vertical single-stage fire pump adopts a high-performance mechanical seal structure, featuring wear resistance, high temperature resistance, and corrosion resistance. The excellent performance of the mechanical seal not only ensures the pump body remains sealed but also effectively prevents leakage under high negative or high pressure conditions. Simultaneously, the pump body sealing cavity employs an optimized heat dissipation design, ensuring the sealing surface remains stable even under high-temperature conditions. For fire pumps, good sealing capability translates to higher reliability and lower maintenance costs.



9. Easy-to-Maintain Pump Body Structure Design

The vertical single-stage fire pump also has significant advantages in terms of maintainability. The impeller, seals, and other components inside the pump body adopt a modular design, facilitating quick disassembly and replacement. Because the motor and pump body are vertically directly connected, maintenance personnel can perform repairs without complex alignment operations, greatly lowering the maintenance threshold. In dusty and humid environments, the pump body surface structure is easy to clean, helping to extend equipment life. Fire protection systems typically require year-round standby status, necessitating pump sets with low failure rates and easy maintenance; the vertical single-stage structure perfectly meets these engineering requirements.



10. High Reliability in Sudden Fire Scenarios

The ultimate value of fire protection equipment lies in its ability to function effectively in critical moments. The vertical single-stage fire pump, relying on its high-efficiency impeller, stable motor, reliable seals, and intelligent control system, can respond quickly in the event of a fire. The pump set is typically designed to operate under short-term overload conditions, maintaining a stable water supply even under instantaneous pressure fluctuations or high flow demands. Its excellent vibration-resistant structure and temperature resistance ensure that the pump set will not jam or experience sudden performance degradation even under extreme conditions. Its continuous and stable output capability provides solid hydraulic support for firefighting operations, making it a reliable and vital piece of equipment in fire protection systems.



Vertical single-stage fire pumps, with their high hydraulic performance, reliable structural design, excellent material selection, and outstanding adaptability to various operating conditions, have become key equipment in modern building and industrial fire protection systems. Their compact layout, flexible installation, and convenient maintenance enable long-term stable operation in a variety of complex application scenarios. As fire protection systems continue to advance towards intelligence and automation, vertical single-stage fire pumps will continue to play an irreplaceable role in the future, providing safer, more efficient, and more reliable fire water supply for engineering projects.
