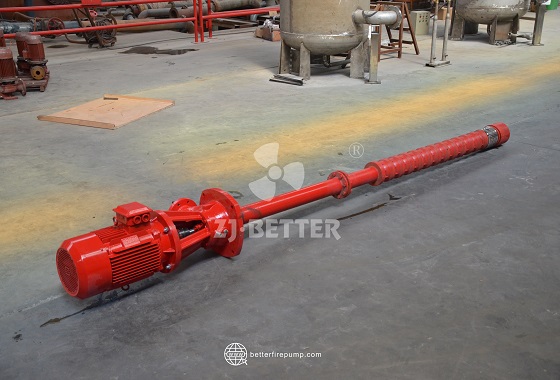

1. Professional Optimization of Overall Structural Design Vertical tunnel fire pumps adopt a multi-stage vertical structure, consisting of a motor, drive shaft, guide bearings, pump shaft, impeller, and delivery pipe. Its most significant feature is that the motor is located on the ground, while the pump body extends underground or into a well, effectively utilizing deep water sources. This design not only ensures sufficient pump suction height but also reduces the risk of cavitation. The vertical structure facilitates installation and maintenance, making it particularly suitable for fire-fighting locations with deep water levels or complex terrain. The guide section is made of wear-resistant alloy or stainless steel, ensuring excellent stability even under long-term high-pressure environments. The overall design incorporates optimized fluid dynamics, reducing water flow resistance and improving head and efficiency.



2. Perfect Combination of High Head and Large Flow Rate Performance Vertical long-shaft fire pumps are renowned for their high head and large flow rate. Their multi-stage impeller tandem design achieves a significant head increase, making them suitable for high-rise buildings and long-distance water supply systems. Simultaneously, the pump body's high-efficiency flow channel structure ensures smooth water output and reduces energy loss. Pump efficiency typically reaches over 80%, exhibiting extremely high response speed and stable output capability in emergency fire water supply. Whether for municipal fire main water supply systems or industrial plant fire extinguishing systems, this pump provides strong and stable water pressure support.



3. Structural Advantages of Cavitation Resistance and Wear Resistance Cavitation is a key issue affecting pump service life. Vertical long-shaft fire pumps effectively prevent cavitation by employing a reasonable suction port design and cavitation-resistant impeller structure. Lubricating water is injected between the pump shaft and the guide bearing to form a protective film, reducing friction and wear. Major wear parts such as the impeller and guide casing are made of stainless steel or bronze, ensuring reliable operation even under high-intensity operation and in water sources containing impurities. This design significantly extends the pump's service life and reduces subsequent maintenance and replacement costs.



4. Flexible Installation, Adaptable to Various Working Conditions: Vertical long-shaft fire pumps can be installed at different depths and lengths according to project requirements. The pump shaft can be segmented, reaching lengths of tens of meters, adapting to various deep wells, underground pools, or water tower environments. This structure is particularly suitable for scenarios with limited surface water resources requiring deep water intake, such as power plant cooling water systems, port fire protection systems, and emergency water supply in chemical plants. No additional suction device is needed during installation, effectively reducing pipeline complexity and saving construction costs and time.



5. Stable Operation, Excellent Vibration and Noise Control: Vertical long-shaft fire pumps employ a high-precision bearing system and balancing device to ensure stability during long-term operation. The multi-point support structure of the guide bearing reduces shaft sway and improves mechanical rigidity. With minimal vibration and excellent noise control during operation, it is particularly suitable for buildings requiring high levels of quiet operation. Through dynamic balancing testing and precise manufacturing processes, the entire unit operates smoothly, extending its mechanical lifespan and reducing maintenance frequency.



6. Intelligent and Safety-Oriented Electrical Control System The modern vertical long-shaft fire pump is equipped with an intelligent electrical control system, enabling automatic start/stop, remote monitoring, and fault alarm functions. The control cabinet includes overload protection, phase loss protection, temperature monitoring, and pressure feedback modules, ensuring safe and reliable operation under any conditions. When the system pressure drops to the set value, the pump automatically starts to replenish pressure; it automatically stops when the pressure reaches the upper limit, forming an intelligent cycle control. This type of automated control significantly improves the response efficiency of the fire protection system and reduces human error.



7. Energy-Saving Design and High-Efficiency Drive System In terms of energy consumption control, the vertical long-shaft fire pump achieves energy-saving operation through optimized hydraulic models and improved motor efficiency. Utilizing a high-efficiency motor drive, combined with a reasonable impeller specific speed design, the pump maintains its optimal energy efficiency ratio under rated operating conditions. Simultaneously, the impeller and pump body clearance is precisely controlled to reduce energy loss. For water supply systems requiring long-term operation, this energy-saving feature not only significantly reduces operating costs but also aligns with modern green fire protection concepts.



8. Convenient Maintenance, Reduced Life Cycle Costs

Because the motor and transmission components are located on the ground, maintenance is extremely convenient. Routine inspections can be performed directly without entering the well or disassembling large components. Lubrication systems, bearings, and seals can be quickly replaced or inspected, minimizing downtime. The pump body is made of a highly corrosion-resistant alloy, effectively extending its service life. The modular design eliminates the need for complete disassembly during later maintenance, reducing labor costs and maintenance difficulty, and ensuring long-term stable system operation.



9. Compliance with International Standards and Engineering Specifications

Vertical long-shaft fire pumps are designed and manufactured in strict accordance with international standards such as NFPA 20 (US fire pump installation standard) and ISO 9906 (pump performance testing standard). Their performance undergoes professional testing to ensure that flow rate, head, pressure, and durability meet international fire protection requirements. Standardized manufacturing processes not only improve product consistency but also enable their widespread application in fire protection projects in various countries worldwide.



10. Typical Application Scenarios and System Integration Value Vertical long-shaft fire pumps are widely used in high-rise buildings, airports, ports, power plants, oil and gas storage tank areas, chemical industrial parks, and municipal water supply systems. Especially in fire protection systems requiring deep well water intake or high-lift water supply, this pump possesses irreplaceable advantages. It can be integrated with electrical control systems, pressure-stabilizing pumps, pipelines, and valves to form an integrated fire water supply solution, creating a complete fire power system and providing a continuous and reliable water source guarantee for fire safety.



With its high lift, high efficiency, and low maintenance characteristics, the vertical long-shaft fire pump has become a core piece of equipment in deep well water intake and large-scale fire protection systems. Whether in industrial plants, energy bases, or urban infrastructure, this equipment provides a solid guarantee for fire safety with reliable water supply performance and long-term operational stability. With the continuous advancement of intelligent and energy-saving technologies, the design concept of vertical long-shaft fire pumps is continuously developing towards greater efficiency, safety, and intelligence, helping global fire protection system construction reach new heights.
