1. The Importance and Core Objectives of Pressure Management in Electric Fire Pump Systems Pressure management in electric fire pump systems is not only related to fire extinguishing efficiency but also to the safety of the piping system. In actual fire operation, excessively low pressure will prevent the water supply to sprinklers, fire hydrants, and other terminal equipment from being met; excessively high pressure may cause pipe network congestion, leading to serious risks such as leaks and ruptures. Therefore, the primary objective in designing and configuring electric fire pump systems is to achieve stable pressure output. From pump body structure optimization and matching pressure stabilizing devices to intelligent pressure monitoring and linkage control strategies, every step is designed to maintain the system's safe pressure range. Simultaneously, through reasonable pressure management, frequent pump start-ups and shutdowns can be effectively reduced, extending equipment lifespan, lowering energy consumption, and providing a more economical, safe, and sustainable operating foundation for fire protection systems.



2. Contribution of Vertical Inline Pump Structure to Pressure Stability This product adopts a compact vertical inline pump structure, making water flow more stable within the pump body and effectively reducing pressure pulsations. The coaxial inlet and outlet design reduces fluid deflection and impact, improving the continuity of hydraulic performance, which is crucial for maintaining the long-term stable operation of the fire protection system. Furthermore, the vertical structure allows for a more even distribution of gravity and operational inertia, resulting in less operational vibration and further reducing pressure fluctuations. Compared to traditional horizontal pumps, the vertical structure also has the advantage of a smaller footprint, making it particularly advantageous in space-constrained environments such as urban complexes, underground pump rooms, and narrow machine rooms. It not only simplifies layout but also reduces pressure loss caused by complex piping. Overall, this structural design significantly improves the controllability and stability of pressure management.



3. Integrated Pressure Stabilizing Tank Configuration Enables Dynamic Pressure Stability Control

To ensure the fire protection system remains within an "immediately startable" pressure range at all times, this equipment is equipped with a pressure stabilizing tank of appropriate capacity. The internal air-water separation structure of the pressure stabilizing tank absorbs instantaneous impact pressure within the system, preventing damage from pump startup or water hammer in the pipeline network. Simultaneously, it provides compensating pressure when there is slight pressure leakage in the system, reducing the frequency of fire pump startup in non-emergency situations, minimizing wear, and extending overall lifespan. In the event of a fire, the pressure stabilizing tank provides initial pressure support before pump startup, ensuring that sprinkler and fire hydrant facilities obtain the necessary water pressure within seconds. The pressure stabilizing tank is linked with the system pressure switch and control cabinet to achieve automatic management of pressure stabilization, alarm, and startup, making it a key component of pressure stability.



4. Intelligent Pressure Monitoring System Ensures Real-Time Data and Rapid Response

Real-time data monitoring is essential for the pressure management of fire pump systems. This product is equipped with multiple pressure gauges and pressure switches, and can be expanded with electronic pressure sensors for more accurate monitoring. The control system continuously monitors pressure changes and automatically executes actions such as pump start-up, pump shutdown, and alarm activation based on set values, ensuring that all aspects of the system remain within safe limits. Compared to traditional methods relying on manual inspections, the intelligent monitoring system can respond to pressure changes at millisecond speeds, significantly shortening system response time and improving firefighting efficiency in emergency situations. Furthermore, intelligent monitoring records pressure operating curves, providing a data foundation for later maintenance, fault diagnosis, and performance optimization. Its high sensitivity and high reliability make the entire system operation safer and more controllable.



5. Automatic Start-Stop Strategy Optimizes System Pressure Balance

In fire protection systems, the pump start-stop strategy directly affects pressure stability and equipment lifespan. This product uses a precise pressure setting range. When the system pressure drops to the start threshold, the fire pump automatically starts to replenish pressure; when the pressure reaches the set upper limit, the pump automatically stops. Through reasonable differential pressure settings, the number of pump start-stop cycles is kept within a reasonable range, avoiding mechanical wear caused by frequent operations. Simultaneously, this start-stop strategy can be combined with the buffering capacity of the pressure stabilizing tank, resulting in a smoother overall system pressure curve. Furthermore, in the event of a sudden surge in water demand, the system can quickly assess and pre-start to ensure that pressure does not drop dangerously. The optimized start-stop strategy effectively improves system durability and response speed.



6. Impact of Valve Components and Piping Layout on Pressure Stability Efficient pressure management relies on a scientifically configured piping and valve system. This product uses compact, high-flow, high-pressure-resistant fire-fighting valves, including gate valves, check valves, and safety valves, to ensure correct water flow direction and stable pressure. Check valves effectively prevent backflow and avoid impact on the pump; safety valves automatically release pressure under abnormally high conditions to prevent system damage. In addition, the piping layout of the entire unit has been optimized through fluid dynamics, reducing unnecessary bends and abrupt changes in pipe diameter, lowering friction losses, and fundamentally improving pressure stability. A reasonable piping design not only improves water supply efficiency but also extends the overall lifespan of the system.



7. Electrical Control Cabinet Integrated Logic Enables Automated Pressure Control As the brain of the fire pump unit, the electrical control cabinet automates pressure management through internal logic programs, including pressure monitoring, start-stop control, fault alarms, and data acquisition. The electrical control cabinet can precisely control the pump's operating status based on signals from pressure sensors or pressure switches, enabling the entire system to operate unattended. In case of fire, the control cabinet can automatically start the fire pump via an emergency signal and provide real-time pressure and operating data, ensuring stable operation of the fire extinguishing equipment under high pressure. Furthermore, the control system features manual and automatic switching modes, further enhancing reliability. Its highly integrated design simplifies wiring and installation, making the entire system more suitable for rapid project deployment.



8. Compact Skid-Mounted Structure Enhances System Stability and Construction Efficiency

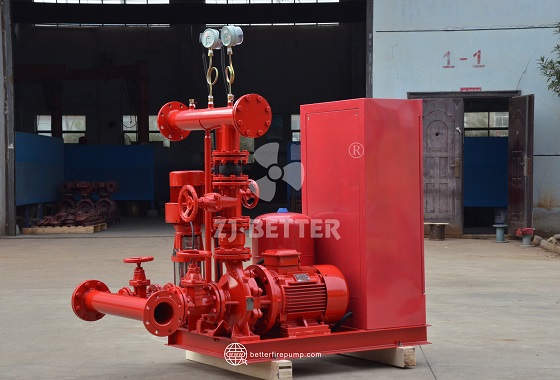

This electric fire pump system adopts a skid-mounted integrated structure, mounting all key components such as the pump, valves, pressure tank, and electrical control cabinet on the same base. Compared to distributed installation methods, the skid-mounted structure results in shorter pipelines, more robust connections, and less vibration, thereby significantly improving the stability of pressure management. Moreover, the factory-prefabricated design reduces on-site construction work, minimizes human error during installation, and improves the overall consistency of system operation. This prefabricated structure offers significant advantages for projects with tight construction schedules, limited pump room space, or engineering renovation projects.



9. The Role of Pressure Management in Ensuring System Stability During Emergency Situations

The core task of a fire protection system is to provide a stable, high-pressure water source in emergencies. A sound pressure management strategy ensures that the system quickly reaches the required pressure within the first second after a fire alarm, preventing firefighting failure due to insufficient pressure. This product achieves full-process management from pressure reduction to pump startup, and from pressure supply to continuous stable output through multiple linkage mechanisms. Even when the number of fire protection terminal devices activated surges, the system maintains stable pressure without significant fluctuations. Furthermore, the initial pressure compensation capability of the pressure stabilizing tank and the rapid response of the intelligent control system ensure that the system can cope with sudden large flow demands, truly achieving stable water supply in critical moments.



10. Long-Term Operation and Maintenance Advantages of System Stability

Good pressure management not only affects firefighting effectiveness but also the long-term operating costs of the equipment. Stable pressure output avoids frequent pump start-ups and shutdowns, reducing mechanical wear; optimized piping and valve design extends the overall system lifespan; intelligent monitoring reduces manual inspection costs and improves work efficiency. In the long run, improved stability means fewer failures, less downtime, and lower maintenance costs. For scenarios with long operating cycles and high maintenance requirements, such as properties, industrial parks, and commercial buildings, this product provides a more economical and durable fire protection solution, improving the overall reliability of the fire protection system.



Pressure management of the electric fire pump system is crucial for ensuring the stability and safety of fire water supply. This product achieves highly integrated, rapid-response, and pressure-stable fire water supply capabilities through multiple technologies, including a vertical pump structure, integrated pressure stabilizing tank, intelligent control logic, optimized piping design, and skid-mounted structure. It is suitable not only for harsh emergency conditions but also for long-term stable pressure control needs, providing reliable and efficient fire protection for modern buildings and industrial facilities. With its higher stability, more intelligent pressure management, and more convenient maintenance, this system represents an important future development direction for fire water supply equipment.
