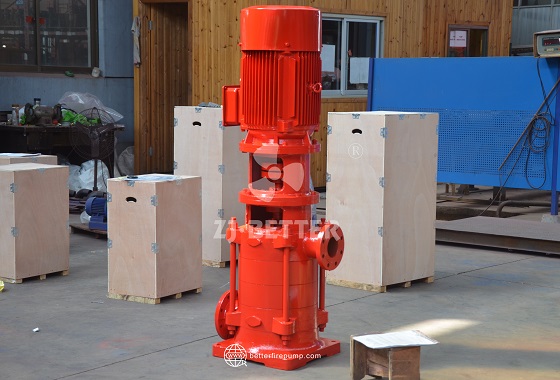

1. The Inherent Advantage of Vertical Structure in Improving Pressure Stability Vertical fire pumps employ a coaxial design between the motor and pump, allowing power to be directly transmitted to the impeller, effectively reducing transmission losses and minimizing vibration problems caused by eccentric layouts. The pump body features a straight flow channel structure, with the medium flowing from bottom to top. This short fluid travel and low resistance ensure a stable and continuous flow of water into the system network. When the fire pump starts, the short pump shaft length and low inertia allow the equipment to quickly establish rated pressure, significantly reducing initial pressure fluctuations. In traditional horizontal pump systems, the complex pump structure and long turning path often lead to brief pressure fluctuations; vertical pumps, however, can stabilize the system pressure in a much shorter time. The coaxial structure also concentrates the pump's center of gravity, resulting in higher mechanical stability during operation. Even under high-lift conditions, it maintains a low vibration level, ensuring that the output pressure remains within the standard range and effectively improving the reliability of the fire protection system.



2. High-efficiency impeller hydraulic design enhances flow output capacity. Vertical fire pumps typically employ single-stage or multi-stage closed impellers. Optimized hydraulic models enable smoother energy conversion within the impeller. Blade curvature, channel width, and outlet angle are all analyzed using computational fluid dynamics, minimizing hydraulic losses while maintaining high efficiency. In most applications, this type of pump exhibits a smooth flow curve, maintaining stable flow output across a wide range of operating conditions. The impeller is typically made of high-strength, corrosion-resistant metal, and precision machining ensures a high level of dynamic balance, preventing eccentricity during operation and reducing frictional losses. Stable flow is a prerequisite for the normal operation of fire sprinkler and fire hydrant systems, and the efficient impeller structure of vertical pumps ensures reliable flow output even at rated points, off-rated points, and under varying operating conditions, providing a solid hydraulic guarantee for the overall fire extinguishing efficiency of the system.



3. Vertical Flow Channel Design Reduces System Resistance Losses The excellent pressure stability of vertical fire pumps is inseparable from their vertical flow channel structure. The medium enters from the bottom of the pump body with almost no detours, flowing in a straight line into the impeller area and then smoothly to the outlet flange. Compared to the traditional volute flow channel design, the straight-through structure effectively reduces the fluid turbulence area, lowers the probability of eddy current generation, and reduces hydraulic energy loss, thus resulting in more stable output pressure. For fire protection pipe networks in large buildings, the resistance along the water flow is significant. If the internal resistance of the pump body is too high, it will exacerbate system pressure fluctuations. Vertical pumps, with their straight flow channels, low noise, and minimal vibration, can maintain a stable water supply pressure for extended periods. During peak water usage or fire water supply switching phases, the low-resistance design of the pump body ensures that pressure does not drop significantly, maintaining a continuous and stable fire-fighting water source for the entire system.



4. Coaxial Direct-Connection Design Improves Mechanical Energy Conversion Efficiency Vertical fire pumps adopt an integrated motor-pump structure, directly connecting the power output shaft to the pump shaft, eliminating the need for couplings or belt drives common in traditional pumps. The shorter and more direct the power transmission link, the less mechanical loss, thus improving the overall energy efficiency of the pump. The direct connection not only improves efficiency but also reduces heat generation caused by energy loss, allowing the equipment to maintain a stable temperature rise level during long-term operation. Furthermore, this structure is less prone to mechanical failures such as transmission loosening or misalignment during operation, ensuring consistent output performance over extended periods. When a fire protection system requires rapid response, a direct-drive design ensures the pump quickly reaches its rated speed, completing system pressurization. This is crucial for improving the initial pressure build-up speed and overall pressure stability.



5. Head and Flow Matching Design Ensures Stable System Operation. Vertical fire pumps are designed with head and flow matching tailored to the specific needs of different buildings and fire protection systems. Precise performance curve analysis ensures the pump operates within its high-efficiency zone, avoiding insufficient pressure or excessive energy consumption caused by inefficient operation. When the pump operates at its high-efficiency point for an extended period, not only is flow stability better, but output pressure is also more stable. Furthermore, a well-matched design avoids problems such as excessive head causing network congestion or insufficient head leading to substandard terminal pressure. In a fire protection system, a stable operating point is critical for ensuring the atomization effect of the sprinkler system and the range of fire hydrant nozzles. Vertical pumps, after undergoing condition matching, have more stable operating curves, virtually unaffected by external factors such as voltage fluctuations and network pressure changes, thus achieving continuous and reliable fire water supply.



6. High-Strength Pump Body Materials Contribute to Stable Operation and Long Service Life Vertical fire pumps are typically manufactured using high-strength cast iron, corrosion-resistant alloy steel, and stainless steel to ensure stable operation under high pressure, high flow rate, and long-term full-load conditions. The internal surfaces of the pump body undergo precision machining and anti-corrosion treatment, effectively reducing friction loss and preventing rust from affecting the fluid path. In fire water supply systems, the stability of the pump body material directly affects whether the pressure can be output stably and without attenuation over a long period. Wear, corrosion, and spalling inside the pump body will lead to pressure fluctuations and even performance degradation. High-strength materials not only improve the structural stability of the pump body but also ensure that the pump body maintains reliable mechanical strength when facing high-lift requirements such as high-rise building fire fighting and industrial fire fighting, enabling the fire protection system to obtain a stable water source in emergencies.



7. Intelligent Control System Enables Precise Pressure Regulation Modern vertical fire pumps can be equipped with intelligent control cabinets to achieve functions such as automatic start/stop, pressure monitoring, flow management, and motor protection. Through real-time monitoring of system pressure changes by pressure sensors, the control system can automatically adjust the pump's start/stop logic to ensure that the pipeline pressure remains within a stable range. Especially when integrated with sprinkler or fire hydrant systems, intelligent control achieves millisecond-level response speeds, effectively reducing the impact of pressure fluctuations. The control system can also automatically shut down or issue an alarm when the pump malfunctions, reducing pressure instability caused by mechanical failures. Furthermore, some control systems feature multi-pump switching capabilities, automatically switching to a standby pump when a single pump cannot meet pressure demands, ensuring a continuous and stable water supply. With the support of intelligent technology, the stability of vertical fire pumps is further enhanced.



8. Professional Sealing System Ensures Long-Term Leak-Free Operation

One of the key advantages of vertical fire pumps is their highly reliable mechanical seal structure. Using wear-resistant silicon carbide, hard alloy, and other sealing materials, the pump shaft maintains a good seal even under high-speed rotation, preventing leakage. Leakage in the pump not only reduces water output but also leads to pressure drops and even pressure fluctuations. The advanced sealing structure can handle various operating conditions, including frequent start-stop cycles, high-temperature environments, and water sources containing trace particles, ensuring the pump always maintains stable and efficient operation. In addition, the compact structure of vertical pumps reduces shaft misalignment, helping to extend seal life. Long-term leak-free operation means the pump can continuously output stable pressure and flow, thus maintaining the overall stability of the fire protection system.



9. Enhanced Overall Pressure Stability Through Collaborative Operation with the Fire Protection System: Vertical fire pumps typically work in conjunction with pressure-stabilizing pumps, sprinkler pumps, and fire hydrant pumps. A well-designed system ensures stable pressure in fire water supply at different stages. For example, under normal low-flow conditions, a small-flow pressure-stabilizing pump maintains pressure; when a fire requires high-flow water supply, the vertical fire pump automatically switches to main pump operation. Its rapid start-up and stable output characteristics prevent drastic fluctuations in pipeline pressure. Simultaneously, the system often includes bypass valves, check valves, and pressure-reducing valves. The vertical pump, under collaborative conditions, maintains pressure within a safe range, reducing impact on the pipeline network and creating a reliable continuous water supply mode.



10. Simplified Maintenance Enhances Long-Term Pressure Reliability: Vertical fire pumps have a simple structure, are easy to install, occupy a small area, and require minimal maintenance space. Because the motor and pump body are coaxially connected, maintenance does not require disassembling complex transmission mechanisms, significantly improving maintenance efficiency. After long-term operation, regular inspections of the bearings, seals, impeller, and internal pump body ensure the equipment maintains its high-efficiency output performance. Good maintenance not only reduces the failure rate but also ensures that pressure output does not fluctuate due to wear, loose parts, or other factors. This sustainable, stable, and easy-to-maintain characteristic makes vertical fire pumps widely used in various fire protection projects.



Vertical fire pumps, with their efficient hydraulic structure, coaxial direct-drive design, vertical flow channel layout, intelligent control system, and excellent material strength, provide stable and reliable flow and pressure support for fire protection systems. They are suitable not only for high-rise buildings, industrial facilities, and commercial complexes but also for rapidly establishing and maintaining sufficient water pressure in emergency fires. With their outstanding stability, safety, and long-term reliability, vertical fire pumps have become an indispensable core piece of equipment in modern fire protection engineering, playing a crucial role in protecting life and property.
