1. System Overview: Integrated Structure Provides Efficient Water Supply

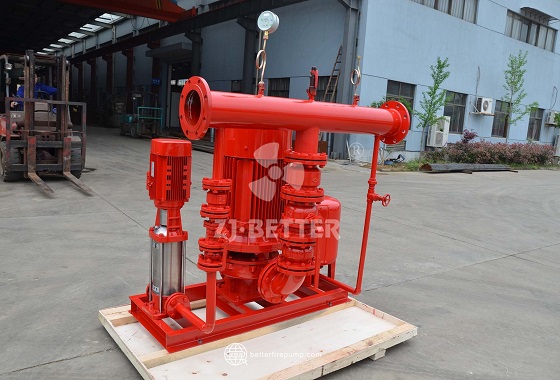

The integrated high-pressure fire pump system utilizes a modular design, integrating the main pump, pressure-stabilizing pump, control cabinet, valve assembly, and pressure tank into a single unit. This design greatly simplifies installation, enabling rapid deployment without complex on-site assembly. The internal high-pressure pump features an optimized flow path structure and a high-strength impeller design, capable of maintaining stable flow output even under high-lift conditions. The system's compact footprint allows for easy installation in underground machine rooms or integration into building pump rooms, ensuring maximum water supply performance within limited space.
2. High-Pressure Performance: Meeting the Fire Protection Requirements of Super-High-Rise Buildings
For buildings over 100 meters tall, water supply head and pressure are critical indicators of fire protection system safety. This system is designed specifically for high-pressure conditions, with a maximum operating pressure exceeding 2.5 MPa, providing continuous and stable pressure support for high-rise sprinkler and fire hydrant systems. The pump body is constructed of high-pressure-resistant alloy materials and features a reinforced sealing structure, ensuring consistent sealing and stability during long-term operation. Furthermore, automatic pressure compensation and a multi-stage pressurization design ensure uniform water pressure distribution throughout the entire pipeline network, effectively preventing issues such as excessive pressure in lower floors or insufficient water supply in higher floors.
3. Intelligent Control: Fully Automatic Operation and Remote Monitoring
The system is equipped with an advanced PLC automatic control system that monitors pipeline pressure, flow, motor status, and temperature in real time. When the system detects a pressure drop, it automatically activates the main pump or pressure-stabilizing pump to replenish water and restore the set pressure. If an abnormality occurs, such as motor overload or temperature abnormality, the system immediately issues an alarm and automatically switches to the backup pump to ensure uninterrupted water supply. The system also features a communication port for connection to the building's fire monitoring center, enabling remote data transmission and control, allowing maintenance personnel to monitor equipment status in real time via a computer or mobile device.
4. Energy-Saving Design: Intelligent Speed Control Reduces Operating Costs
Traditional fire pump systems often waste energy due to frequent starts and stops. The integrated high-pressure fire pump system uses variable frequency control technology to deliver water on demand. The system automatically adjusts pump speed based on real-time pipe network pressure fluctuations, maintaining the pressure-stabilizing pump during low demand periods and automatically activating the main pump at full speed during high demand periods, effectively reducing energy consumption. Furthermore, the motor features a highly efficient and energy-saving design with high transmission efficiency and low noise levels, reducing operating costs and extending equipment life. This intelligent speed control ensures that the system maintains fire safety while also achieving economic benefits.
5. Safety Protection: Multiple protections ensure stable system operation.
The integrated high-pressure fire pump system features comprehensive safety mechanisms, including motor overload protection, undervoltage protection, leakage detection, water source loss alarm, and temperature over-limit alarm. If a system operation anomaly occurs, the controller immediately issues an alarm and automatically initiates appropriate protective measures, such as shutdown, switchover, or standby pump takeover, preventing equipment damage and system failure. All key components have undergone rigorous pressure and temperature resistance testing to ensure reliable operation even in extreme environments, truly achieving the operational goals of "safety, stability, and longevity."
6. Structural Design: Compact, Attractive, and Easy to Install
Unlike traditional split-unit pump room layouts, this system's design prioritizes space utilization and optimized structure. The pump, piping, and control cabinet are pre-assembled and commissioned at the factory. Simply connecting the water inlet and outlet pipes and power supply is sufficient for immediate operation, significantly shortening the installation cycle. The entire system is coated with an anti-corrosion coating, making it suitable for environments with high humidity and dust, extending its service life. In addition, the system base utilizes a high-strength, shock-absorbing structure, effectively reducing vibration and noise during pump operation and providing a quieter operating environment in the building's machine room.
7. Materials and Craftsmanship: Corrosion-Resistant, Wear-Resistant, and Longer Life
The high-pressure fire pump system utilizes high-strength cast iron or stainless steel for its main components. The impeller and shaft seal utilize corrosion-resistant alloys to address the complexities of firefighting water, which may contain impurities or chemical components. Imported mechanical seals are used for seals, offering high-temperature and wear resistance, reducing the risk of leakage. Precision machining and dynamic balancing ensure that the pump maintains low vibration and noise even at high speeds. The surface coating utilizes epoxy anti-corrosion paint, further enhancing rust and moisture resistance, ensuring long-term, stable operation in harsh environments.
8. Maintenance and Management: Modular Design for Easy Maintenance
The system's structural layout takes into account ease of maintenance and upkeep. Key components such as the impeller, motor, and control module are removable, facilitating rapid on-site inspection and replacement. The system features automatic detection and fault self-diagnosis, recording real-time operation logs during operation to help maintenance personnel quickly identify problems. Regular maintenance requires only checking the seals and lubrication system to ensure long-term, efficient operation of the equipment. This modular design not only reduces maintenance costs but also improves overall equipment availability.
9. Application Scope: Adaptable to Various Firefighting Scenarios
The integrated high-pressure fire pump system is suitable for a variety of firefighting scenarios, including high-rise buildings, subway tunnels, underground parking lots, large shopping malls, and petrochemical plants. Its high-pressure output and continuous water supply capabilities enable it to meet diverse requirements for sprinkler systems, fire hydrant systems, and foam fire extinguishing systems. For industrial or residential buildings requiring a stable, high-pressure water supply, this system effectively addresses the challenges of long water supply distances and high pressure drop, providing a solid guarantee for fire safety.
10. System Advantages: An Efficient, Intelligent, and Reliable Comprehensive Solution
Overall, the integrated high-pressure fire pump system offers significant advantages in terms of structure, performance, control, safety, and maintenance. It not only ensures stable, high-pressure water supply but also features intelligent control and remote management capabilities, adapting to complex and changing firefighting needs. Compared to traditional systems, this system offers faster installation, smaller footprint, more energy-efficient operation, and easier maintenance, providing users with full lifecycle economic benefits and safety assurance, making it an ideal choice for modern building fire water supply systems.
With its superior high-pressure performance, intelligent control, and safe and reliable operation, the integrated high-pressure fire pump system has become a core component of modern fire protection engineering. It not only ensures safe water supply in high-rise buildings but also represents a key development direction for intelligent fire protection systems. With accelerating urbanization and rising building heights, this efficient, energy-saving, and intelligent fire water supply solution is poised to become a mainstream trend in future fire protection systems.
