1. Core Concepts and Functional Positioning of Automatic Pressure Stabilizing Systems Automatic pressure-stabilizing water supply systems are integrated devices composed of pressure-stabilizing pumps, pressure tanks, pressure sensors, and intelligent control cabinets. Their core function is to maintain the pressure in the fire protection network within a set range, preventing delayed response or malfunction of the sprinkler system due to pressure fluctuations. The system can automatically start and stop the pressure-stabilizing pump according to real-time pressure changes, ensuring that the network maintains appropriate pressure in non-fire conditions, thereby extending the service life of the main pump. It serves as both an auxiliary device for the fire protection system and a crucial guarantee for its stable operation.

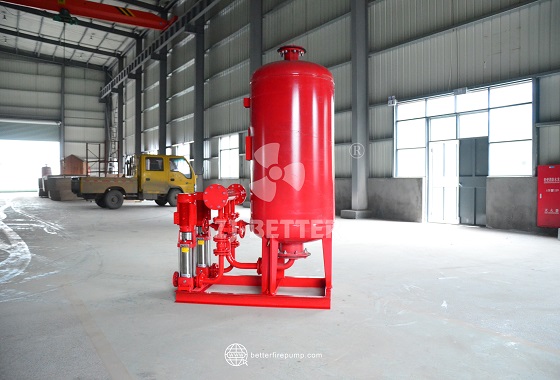

2. System Composition and Structural Configuration An automatic pressure-stabilizing water supply system typically consists of two parallel small-flow pressure-stabilizing pumps, a high-pressure gas tank, a precision pressure control unit, and an automatic control cabinet. The gas tank stores energy through the compression balance of gas and water; pressure sensors collect pressure signals in real time and feed them back to the control cabinet; the control system controls the start/stop of the pressure-stabilizing pumps or adjusts their operating modes according to preset logic. This modular design not only facilitates installation and maintenance but also allows for flexible expansion based on actual site needs.
3. Advantages of Intelligent Control Technology The intelligent control system is the core of the automatic pressure-stabilizing water supply technology. Through a PLC or microcomputer controller, the system can achieve functions such as pressure monitoring, pump group linkage, fault alarms, and remote monitoring. Users can set upper and lower pressure limits; the system will automatically start the pressure-stabilizing pump when it detects a pressure drop and automatically stop when the set value is reached, thus achieving unattended operation. Furthermore, intelligent control technology can record operating data, providing a basis for subsequent maintenance, demonstrating high reliability and ease of operation.
4. Performance Characteristics and Operating Modes of Pressure Stabilizing Pumps
Pressure stabilizing pumps typically employ a vertical multistage centrifugal pump or horizontal centrifugal pump structure, featuring high head, low flow rate, low noise, and stable operation. Depending on the building type, the system can adopt a single-pump or dual-pump alternating operation mode, ensuring continuous pressure stabilization while reducing wear on individual pumps. Some systems also have a soft-start function, effectively reducing starting current surges, extending motor life, and ensuring high efficiency and stability during long-term operation.
5. Balancing Role of Pressure Tanks in the System
As an energy buffer device, pressure tanks are an important component of pressure stabilizing systems. When pressure increases, the gas inside the tank is compressed to store energy; when pressure decreases, the gas expands and releases energy to compensate for water pressure, maintaining network stability. The interior of the pressure tank is typically made of corrosion-resistant steel or lined with a protective layer, enabling it to withstand high-pressure operation for extended periods. By working in conjunction with pressure stabilizing pumps, pressure tanks can effectively reduce the number of pump start-ups and shutdowns, further improving system reliability and service life.
6. Energy Saving and Environmental Performance Analysis
The energy consumption of automatic pressure stabilizing water supply systems is significantly lower than that of traditional continuous operation modes. Because it employs intermittent intelligent control, the pressure-stabilizing pump only activates when the pipeline pressure drops, thus avoiding unnecessary energy waste. Simultaneously, the system effectively reduces noise and mechanical vibration through optimized hydraulic design and control logic, achieving the dual goals of energy conservation and environmental protection. This energy-saving characteristic not only reduces operating costs but also aligns with the development concept of green building.
7. Applicable Scenarios and Industry Applications Automatic pressure-stabilizing water supply systems are widely used in high-rise buildings, industrial plants, hospitals, airports, warehousing centers, and large commercial complexes. In these buildings, the pressure stability of the fire protection pipeline network directly affects the start-up speed and fire extinguishing efficiency of the sprinkler system. By installing an automatic pressure-stabilizing system, it ensures that fire-fighting equipment is readily available at any time and under any conditions, providing a solid guarantee for the safety of personnel and property.
8. Installation Layout and Construction Points When installing an automatic pressure-stabilizing water supply system, priority should be given to stable areas near the fire pump room or water source. The foundation must be flat and stable, with sufficient space reserved for pipe connections and maintenance. The pressure tank should be installed vertically and equipped with a safety valve and pressure gauge; the control cabinet should be kept away from humid environments and ensure good ventilation. Electrical wiring must comply with fire protection electrical standards to ensure rapid equipment response in emergencies. These construction details directly affect the system's operational stability and lifespan.
9. Key Aspects of Maintenance and Testing Although automatic pressure-stabilized water supply systems possess automatic operation characteristics, they still require regular maintenance and testing. The operating status of the pressure-stabilizing pump should be checked quarterly, filters and pipelines cleaned, and gas tank pressure checked and nitrogen replenished. The control system response time should be tested every six months to ensure the pressure sensors and electrical control circuits are functioning properly. Establishing a comprehensive maintenance mechanism can prevent problems such as false alarms or system startup failures, fundamentally improving the reliability of the fire protection system.
10. Future Technological Development Trends With the integration of IoT and smart manufacturing technologies, future automatic pressure-stabilized water supply systems will be more intelligent and modular. Through cloud platforms and remote monitoring systems, users can achieve real-time monitoring and data analysis of equipment operating status; AI algorithms will automatically optimize operating logic based on water usage patterns, achieving precise pressure stabilization and ultra-low energy consumption. Simultaneously, the system will develop towards compactness and integration, providing more efficient, safe, and intelligent water supply solutions for building fire protection.
The emergence of automatic pressure-stabilized water supply technology has provided strong technical support for the safety and intelligent upgrading of modern building fire protection systems. With its stable pressure control, intelligent operating logic, and energy-saving and environmentally friendly characteristics, it comprehensively improves the reliability and response speed of fire protection systems. In the future, with the further development of intelligent control and data-driven management, automatic pressure-stabilized water supply systems will play an even greater role in the fire protection field, becoming an indispensable key piece of equipment in modern building safety protection systems.
