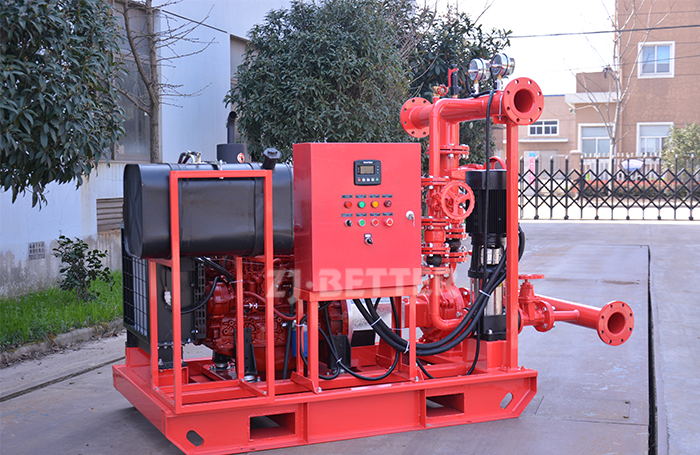

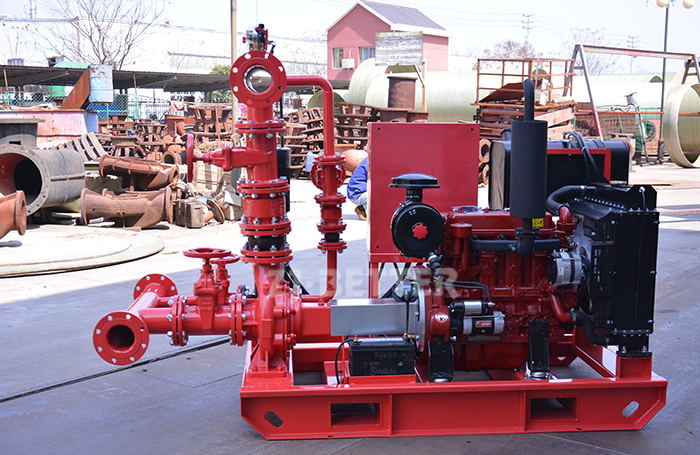

The EDJ fire pump set is composed of a fire pump, a dual-shaft extension motor and a diesel engine. One end of the output shaft of the dual-shaft extension motor is connected to the input shaft of the fire pump, and the other end of the output shaft of the dual-shaft extension motor is connected to the input shaft of the fire pump. One end of a clutch is connected, and the other end of the clutch is connected with the output shaft of the diesel engine. The fire water pump, the double-shaft extension motor, the clutch and the diesel engine are all fixed on the base. The double-shaft extension motor, the clutch and the diesel engine are respectively electrically connected with a control circuit through the action driving circuit. With dual-power fire pump, there is no need to configure a second fire pump, reducing floor space and manufacturing costs.
The fire-fighting dual-power water supply equipment produced by ZJBetter Technical Company is designed and manufactured in strict accordance with GB 27898.5-2011 Fixed Fire-fighting Water Supply Equipment Part 5 <<Fire-fighting dual-power water supply equipment>>. It meets the new 3CF requirements and has obtained the 3CF certification for fire protection products.
1. Due to the dual power, when a fire occurs, it is a more reliable way to ensure water safety;
2. When the mains is normal, the electric pump set is put into work. When the power supply fails and the electric fire pump cannot be put into use normally, the diesel engine fire pump set can be automatically put into operation to ensure the normal firefighting. The diesel engine fire pump set is equipped with various automatic functions , to meet the requirements of the standard, to ensure that the equipment is in a normal standby state for a long time, and it can be put into fire fighting work at any time.
3. The fire-fighting dual-power water supply equipment is suitable for places with various emergency backup pumps.
The EDJ fire pump system is mainly used for various fire hydrants, sprinkler fire main pumps, and is also suitable for various fire pressurization and voltage stabilization pumps. Fire water pump packages is also suitable for various oil depots, oil product loading and unloading terminals, logistics parks and other places with high fire protection level requirements.
