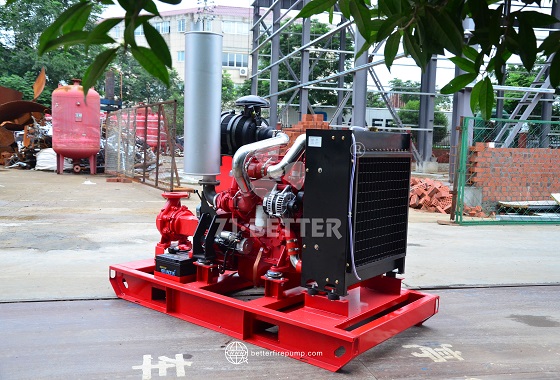

1. Working Principle and Characteristics of Diesel-Directly-Coupled Fire Pumps
Diesel-directly-coupled fire pumps are devices that operate by directly driving the pump shaft via a diesel engine, without relying on electric motors or drive belts, thereby reducing energy loss during power transmission. The direct-coupled structure enables more efficient power transmission while reducing mechanical wear and maintenance frequency. Its core advantages include independent operation capability, fast startup speed, compact structure, and stability in harsh environments. Additionally, the direct-coupled design eliminates intermediate transmission components, significantly reducing the risk of failures during long-term operation and extending the equipment's service life.
2. Analysis of Core Technical Parameters
The main technical parameters of diesel engine direct-coupled fire pumps include flow rate, head, speed, power, inlet/outlet diameter, and maximum allowable suction vacuum.
Flow rate (m³/h) determines water supply capacity and should match the design flow rate of the fire protection system.
Head (m) determines water pressure and must meet the water supply requirements at the most unfavorable point.
Speed (rpm) is commonly 1500 or 1800 rpm and must be determined based on the characteristics of the diesel engine.
Power (kW) Must meet the operational requirements under maximum load and include a 10%-20% margin.
Inlet/outlet diameter (mm) Must be compatible with the pipeline system to ensure reasonable hydraulic conditions.
Suction height Must be controlled within the pump's permissible range to prevent cavitation. A thorough understanding of these parameters facilitates scientific selection and efficient operation.
3. Drive system design and advantages
Diesel engine direct-coupled fire pumps use high-performance diesel engines as the power source, featuring flexible fuel supply and high energy density. The direct-coupled design connects the pump shaft directly to the engine crankshaft, achieving transmission efficiency of over 95% and reducing energy waste. Additionally, the diesel engine can automatically adjust fuel supply based on workload, thereby reducing fuel consumption. In emergency situations, the drive system can start up and reach a stable operating state within just a few seconds, ensuring timely water supply during the initial stages of a fire.
4. Material and Structural Durability
The equipment typically uses corrosion-resistant cast iron or ductile iron pump bodies, stainless steel shafts, and impellers made of high-strength materials to withstand prolonged exposure to water and various media. The shaft seal section often employs mechanical seals or packing seals to ensure long-term sealing performance and leak prevention. The design of the base, coupling, and vibration damping pads directly affects operational stability and service life. In terms of corrosion protection, the inner walls of the pump housing are typically coated with epoxy to slow corrosion and maintain water quality hygiene.
5. Performance Stability and Operational Efficiency
Diesel-driven direct-coupled fire pumps are renowned for their stable high-head and high-flow output. During prolonged high-load operation, temperature rise, vibration, and noise levels remain within controllable ranges. The direct-coupled structure reduces mechanical losses, enabling the pump efficiency to remain at the rated level over the long term. When paired with a high-efficiency diesel engine, the overall energy efficiency is 5%-10% higher than traditional belt-driven systems. Additionally, the equipment maintains a stable pressure curve under varying load conditions, ensuring reliable water supply to end-use systems such as fire sprinkler systems and fire hydrant systems.
6. Automated control and protection functions
Modern diesel engine direct-coupled fire pumps are generally equipped with intelligent control systems that enable automatic start/stop, operational monitoring, fault alarms, and data recording. Common protection functions include overspeed protection, low oil pressure protection, high water temperature protection, and low fuel level alarms. Some systems can also communicate remotely with fire control centers, uploading real-time operational status data to facilitate timely monitoring of equipment conditions by maintenance personnel. This intelligent design significantly enhances the safety and reliability of the equipment.
7. Installation Conditions and Space Requirements
When installing a diesel engine-driven fire pump, select a location with good ventilation, a level ground, and easy access for maintenance. The foundation must have sufficient load-bearing capacity and be equipped with vibration-damping pads to minimize vibration transmission. Sufficient maintenance space should be left between the equipment and walls or other equipment, typically at least 1 meter in the direction of the inlet and outlet pipes. The fuel storage area should maintain a safe distance from the equipment and be equipped with fire prevention and leakage prevention measures. Additionally, the installation location should be as close to the water source as possible to reduce suction head and improve pump efficiency.
8. Comparison of Direct-Coupled Diesel Engines with Other Drive Methods
Compared to electric fire pumps, the primary advantage of direct-coupled diesel engine fire pumps is their ability to operate independently without relying on electricity, even during power outages. Compared to belt-driven diesel fire pumps, direct-coupled pumps reduce the number of transmission components, improving transmission efficiency and stability while reducing maintenance requirements. Although direct-coupled designs demand higher manufacturing precision and involve higher initial investment costs, they offer more significant advantages in terms of long-term operational costs and reliability.
9. Selection Recommendations and Matching Principles
When selecting a model, factors such as design flow rate, head, operating environment, starting method, and maintenance conditions should be comprehensively considered. For high-rise buildings, long-distance water supply, or high-pressure sprinkler systems, high-head, high-power models should be chosen; for pump rooms with limited space, compact direct-coupled units should be prioritized. It is recommended to select products with national or international fire safety certifications during selection, and consider compatibility with existing fire safety systems. Additionally, fuel consumption, operational noise, and post-installation maintenance costs should be assessed to ensure overall operational cost-effectiveness.
10. Maintenance, Inspection, and Lifespan Extension
To ensure the long-term stable operation of diesel engine direct-coupled fire pumps, a regular maintenance schedule should be established, including diesel engine oil changes, filter cleaning, cooling system inspections, pump shaft lubrication, and seal replacement. A startup test should be conducted at least once a month to check operational status and pressure output. Fuel should be kept clean and replaced regularly to prevent sediment buildup in the fuel system. During prolonged shutdowns, rust and freeze protection measures should be implemented. Proper maintenance not only extends equipment lifespan but also ensures reliable startup during fire incidents.
Diesel-driven direct-coupled fire pumps, with their independent power source, efficient transmission, stable performance, and strong adaptability, have become an indispensable component of modern fire protection systems. By thoroughly understanding their technical parameters, structural features, and selection principles, optimal performance can be ensured in practical applications. Scientific selection, proper installation, and standardized maintenance not only enhance the overall safety of fire protection systems but also effectively reduce operational costs, providing a solid foundation for fire safety in buildings, industrial facilities, and public infrastructure.
