1. Advantages of Coupling Drive Structures

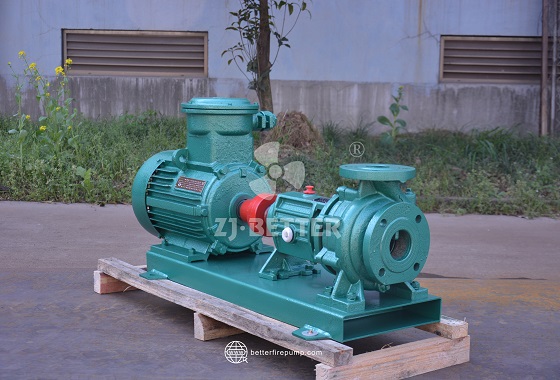

This system uses a rigid or flexible coupling to directly connect the motor and pump shaft, offering higher transmission efficiency and energy utilization compared to belt drives or flexible connections. The coupling's precise structure and high fit accuracy effectively reduce torque loss and axial play during operation, improving overall system response speed and power output. This structural design also reduces wear on mechanical components, effectively extending the equipment's lifespan and reducing maintenance costs.



2. High-strength materials enhance operational stability



Coupling-driven fire pump systems require particularly stringent material selection for key components. The pump casing is typically constructed of high-strength cast iron or ductile iron, the impeller can be made of stainless steel or bronze, and the motor and pump shafts are typically constructed of alloy steel or heat-treated carbon steel. These materials offer excellent resistance to corrosion, pressure, and impact, making them suitable for long-term continuous operation and high-intensity working environments, thereby ensuring stable water supply even in the event of a fire.



3. Long-lasting Operation Capability Meets Various Operating Conditions

This system is particularly suitable for locations with high water pressure and water supply continuity requirements, such as high-rise buildings, large factories, and storage bases. The coupled drive structure ensures the stability of the bearings, coupling, and pump body during extended operation, preventing performance degradation or component failure. Furthermore, the pump body features a large flow channel design that can withstand high water pressure, ensuring reliable water supply during peak water demand or fires.



4. Low-vibration Design Ensures Equipment Life

The system utilizes a dynamic and static balancing process. The pump body, impeller, and motor are all dynamically balanced to effectively control mechanical vibrations generated during operation. Shock-absorbing rubber pads or damping springs are incorporated into the bearing seat and base to further mitigate vibration transmission caused by the equipment itself or the ground. This low-vibration operating mode not only extends the service life of the pump shaft and seal assembly, but also reduces interference with surrounding structures, making it suitable for indoor or underground firefighting equipment rooms where noise control is critical.



5. High-Efficiency and Energy-Saving Motor Configuration

The motor utilizes an electric motor that meets international high-efficiency ratings (such as IE3 or above), offering high power density and low energy consumption. This operating efficiency significantly improves the overall system's energy savings and reduces electricity costs. Combined with an intelligent control cabinet, it enables automatic start/stop and speed regulation based on pressure demand, eliminating energy waste caused by frequent starts and stops or no-load operation, making it an ideal choice for modern green building systems.



6. Comprehensively Integrated Intelligent Control System

The system is equipped with an intelligent control box, integrating intelligent components such as a PLC module, pressure sensors, flow meters, and fault alarms, enabling real-time monitoring and intelligent control of the pump set. Users can set parameters and view status via an LCD touchscreen, or an optional remote control module for cloud-based management. The system also supports functions such as fire alarm linkage, automatic backup pump switchover, and water shortage shutdown protection, significantly enhancing system safety and emergency response capabilities.



7. Compact Structure for Easy Installation and Commissioning

The pump unit features an integrated welded base structure, with the pump, motor, and control cabinet centrally mounted on a single platform. This compact design makes it easy to transport. On-site installation requires no complex assembly; simply connecting the inlet and outlet pipes and power supply completes the system setup, significantly shortening the construction period. In conjunction with the pre-installation and commissioning solution, coupling alignment and electrical testing are completed before shipment, ensuring immediate operational readiness upon delivery.



8. Compatible with a Wide Range of Fire Protection Standards

The system was designed with strict reference to GB6245 "Fire Pump Performance Requirements and Test Methods," NFPA20 "National Fire Protection Association Standard," and ISO international fire pump standards. It offers a variety of specifications, models, and pressure and flow parameters to meet the needs of projects in various countries and regions. Modular customization is also possible based on project requirements, including dual-pump linkage, multiple outlets, and backup power options, making it widely applicable to international projects and overseas markets.



9. Modular Design for Easy Maintenance



Designed to facilitate maintenance after long-term operation, the coupling-driven pump system adopts a modular layout. Components such as the motor, pump body, coupling, and control cabinet are independently arranged, facilitating daily inspection and replacement. Component connections utilize flanges or quick-release clamps for easy assembly and disassembly. The system comes with a maintenance manual and video tutorials for quick hands-on operation, reducing maintenance delays caused by technical issues and improving system operation and maintenance efficiency.



10. Diverse Application Scenarios



This coupling-driven fire pump system has been widely used in commercial complexes, industrial plants, subway stations, high-rise residential buildings, airports, and terminals. Its stability, low maintenance, and high energy efficiency make it an excellent choice for environments with demanding water supply security requirements. In particular, its high level of automation and strong operational reliability make it a highly recommended solution by design institutes and fire engineering companies in underground fire pump rooms and unmanned pumping stations.



With its comprehensive advantages of high efficiency, stability, low vibration, and easy maintenance, the coupling-driven fire pump system has become an indispensable key component in modern firefighting systems. Its superior power transmission structure and advanced intelligent control functions ensure rapid response and continuous water supply in any emergency situation, providing strong fire safety protection for various buildings and public facilities. Whether it is a new construction project or an upgrade of an existing pump system, this system is an ideal choice for achieving a win-win situation in safety and efficiency.
