1. Scientific Structural Design
The stainless steel vertical multi-stage fire pump system features a vertical structure, a small footprint, and the pump and motor axes are aligned perpendicularly, resulting in a compact design and easy installation. Key components such as the pump body, impeller, guide vanes, and main shaft are all made of high-quality stainless steel, offering excellent corrosion resistance. The multi-stage structure enables the pump to achieve high head within a compact footprint, making it suitable for high-rise or long-distance water supply. Its modular design also facilitates maintenance and replacement, significantly extending its service life and economic efficiency.
2. Material Advantages and Corrosion Resistance
The system's main components, such as the pump casing, impeller, and guide vanes, are made of stainless steel, offering exceptional corrosion resistance and adaptability to operating in chlorinated water or mildly acidic or alkaline environments. Compared to traditional cast iron pumps, stainless steel fire pumps maintain a smooth interior and stable hydraulic performance even after long-term use, preventing flow loss and energy efficiency degradation caused by rust. This system offers particularly long-lasting protection in coastal areas or chemical plants.
3. High Hydraulic Efficiency
The stainless steel vertical multi-stage fire pump system utilizes an optimized hydraulic model design, achieving high head and stable flow through a multi-stage impeller connection. Its hydraulic efficiency is generally 5%-10% higher than similar products, enabling higher water pressure and flow with the same motor power. The pump's internal flow path is designed to be smooth and streamlined, reducing flow resistance and energy loss. Furthermore, the system, equipped with variable frequency control technology, automatically adjusts operating speed based on pressure fluctuations, achieving energy-efficient water supply.
4. Stable Operation and Low Noise Design
The stable operation of a fire pump system is crucial to its safety. The stainless steel vertical multi-stage fire pump features a high-precision dynamically balanced impeller design, low-noise bearings, and a shock-absorbing base, ensuring smooth operation, minimal vibration, and low noise. The pump shaft utilizes a mechanical seal to effectively prevent leakage even under high pressure. Furthermore, the vertical structure's stable center of gravity ensures the equipment maintains balance during extended operation, ensuring rapid response during emergency activation.
5. Intelligent Control and Automation
The accompanying intelligent control system enables fully automated operation and management. When the system detects a drop in pipe network pressure or a fire alarm, the control cabinet automatically activates the fire pump to supply water and automatically shuts down when pressure returns. Its remote monitoring module displays real-time flow, pressure, current, and operating status, supporting remote alarms and data logging, allowing management personnel to easily monitor system performance. This automated control reduces manual intervention and improves system response speed and reliability.
6. Energy-saving and Environmentally Friendly Operation
The stainless steel vertical multi-stage fire pump system is designed with energy-saving concepts in mind. By utilizing high-efficiency motors, optimized hydraulic channels, and variable frequency drive technology, it delivers water on demand, avoiding energy waste caused by prolonged full-load operation. Compared to traditional constant-speed pumps, this system automatically reduces speed during low-demand periods, reducing energy consumption and mechanical wear, resulting in average energy savings of 20%-30%. Furthermore, the system's compact design and low vibration contribute to lower operating noise and maintenance costs.
7. Ease of Installation and Maintenance
Due to its vertical, integrated design, the pump and motor are coaxially connected, eliminating the need for complex alignment adjustments and making installation quick and easy. The unit's sturdy and stable base allows for direct installation onto a foundation platform. Regarding maintenance, the system's modular design allows for independent assembly and disassembly of components such as the impeller, mechanical seal, and bearings, significantly reducing repair time. Combined with the control system's self-test function, the system performs regular, automated inspections to prevent mechanical failures caused by prolonged non-operation.
8. Adaptability and Multi-Scenario Applications
The stainless steel vertical multi-stage fire pump system is suitable for a wide range of applications, from fire-fighting pressure-stabilized water supply in urban high-rise buildings to automatic sprinkler systems in factories, warehouses, shopping malls, and hospitals. In industrial environments, it can also be used for auxiliary purposes such as process water supply and cooling water circulation. For environments requiring clean water quality, such as food processing or pharmaceutical processing, this system's sanitary stainless steel construction better meets standards.
9. System Integration and Modularity

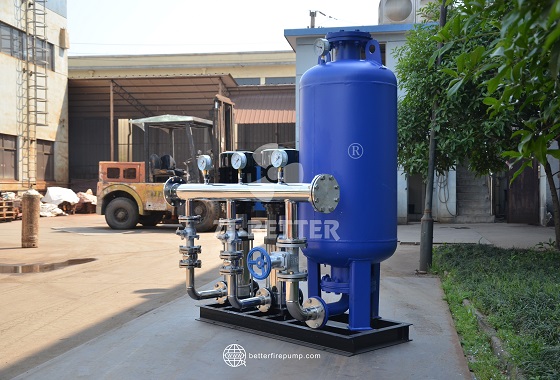

This system can be combined with a pressure-stabilizing pump, air pressure tank, pressure sensor, automatic valve, and other equipment to form a complete fire water supply unit, enabling centralized management and multi-pump linkage. The modular structure allows users to flexibly configure the number and power of pump units based on actual water consumption, easily adapting from single-pump to dual-pump and triple-pump systems. The integrated control solution reduces piping and wiring complexity, improving system consistency and reliability, making it particularly suitable for locations requiring stable pressure.
10. Reliability and Long-Term Performance
Fire protection systems must operate reliably at critical moments, making reliability a key criterion for evaluating fire pump systems. The stainless steel vertical multi-stage fire pump system is designed with durability and safety in mind. It utilizes thickened bearing supports, high-quality mechanical seals, and high-temperature and pressure-resistant materials to withstand long-term operation in high-pressure and high-temperature environments. Even with frequent starts and stops, the system maintains excellent performance, ensuring reliable startup and stable water supply in emergency situations such as fires.
Stainless steel vertical multi-stage fire pump systems, with their superior corrosion resistance, efficient hydraulic design, intelligent control features, and exceptional operational stability, are an ideal choice for modern architectural and industrial fire protection systems. They not only meet stringent fire safety requirements but also enjoy widespread adoption due to their energy-saving, environmentally friendly, and easy-to-maintain advantages. With the continuous advancement of intelligent manufacturing and automatic control technologies, these systems will play an even more crucial role in future fire water supply systems, providing safer and more reliable fire protection for various projects.
