1. High Product Composition and System Integration

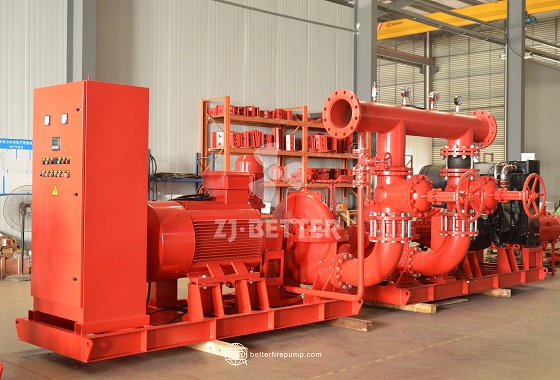

The industrial-grade electric fire pump system is integrated into a single unit comprising an electric motor, fire pump body, coupling base, electrical control cabinet, valves and piping, pressure vessels, and a steel foundation structure. The system is pre-assembled on an integrated base, achieving true modularization and factory-standardized production. All components are pre-tested and standardized before shipment, significantly reducing on-site construction and commissioning time. Notably, its electrical control system enables seamless switching between firefighting and patrol modes, while also featuring fault self-diagnosis functionality, ensuring rapid deployment in emergency situations.
2. Optional High-Efficiency Motors for Outstanding Energy Savings
The core power unit adopts high-efficiency electric motors compliant with national first-class energy efficiency standards, achieving efficiency rates exceeding 95%. These motors not only offer outstanding starting capability but also maintain stable operation under prolonged high-load conditions. Compared to traditional equipment, this product significantly reduces energy consumption while maintaining high flow output, effectively lowering operational costs for users. Under the impetus of energy-saving and environmental protection policies, this series of electric fire pump sets has become a preferred choice for numerous green building projects.
III. Optimized pump body structure with superior performance parameters
The pump body adopts a direct-coupled end-suction structure or a horizontal split-case double-suction structure, offering multiple model options tailored to different operating conditions. The flow rate range spans 100 to 3,000 m³/h, with a maximum head of 250 meters, meeting various high-pressure long-distance water supply requirements. The impeller and volute are optimized through CFD simulation design, achieving higher hydraulic efficiency and reduced vibration and noise, ensuring smoother operation and extended maintenance intervals.
4. Intelligent control system ensures emergency response
The配套 control cabinet is equipped with a PLC intelligent control module, enabling various control logics such as manual/automatic control, remote interlocking, and pressure-activated startup. The panel features a color touchscreen and multiple signal input/output interfaces, enabling real-time monitoring of system parameters and remote alarm functions. By integrating with the fire pump inspection system and interfacing with the fire control center's main unit, the system ensures high-response synchronization across the entire fire protection system, enabling immediate intervention in fire control scenarios.
5. Easy Installation and Commissioning, Suitable for Various Scenarios
The entire unit adopts a skid-mounted base design, facilitating transportation. On-site installation only requires connecting the power supply and inlet/outlet pipelines to commence operation, significantly reducing construction time. It is suitable for new construction projects and upgrades of existing systems. Whether in underground pump rooms, rooftop pump stations, or complex environments such as high-temperature or low-temperature conditions, the ZJBETTER electric fire pump set can be customized to meet various spatial and process requirements.
6. Certified to domestic and international standards, ensuring reliable quality
This series of products strictly complies with the national standard GB6245-2006 “Fire Pumps” and can be certified to international standards such as UL/FM, CE, and ISO9001:2015 upon request. All critical components are made of high-strength industrial-grade materials, such as 304/316 stainless steel and QT500 ductile iron, offering excellent corrosion resistance and pressure strength. They are suitable for various fire water sources and additive environments, ensuring reliable quality and a service life of over 15 years.
7. Multiple protection functions ensure operational safety
The system features multiple electrical protection functions, including phase loss, overvoltage, undervoltage, overload, short circuit, and grounding protection. After the motor starts, it automatically delays the switch to the main pump to avoid instantaneous grid impact causing system instability. In case of equipment malfunction, the system triggers audio-visual alarms and automatically records the fault time and type, providing efficient troubleshooting references for maintenance personnel.
8. Compatible with multi-pump parallel and primary/standby switching requirements
The ZJBETTER industrial-grade electric fire pump set can be configured in various combinations such as one main and one standby, two main and one standby, or three pumps in parallel, depending on project requirements, with a complete main-standby switching control logic. It supports a complete system configuration with a bypass pressure-stabilizing pump and air pressure tank, effectively reducing frequent pump starts and extending the service life of the main pump, making it an ideal configuration for high-grade fire protection facilities such as urban complexes and chemical industrial parks.
9. Low Noise and Environmentally Friendly Design
The overall operating noise level is below 75 dB, utilizing anti-vibration bases and flexible connection structures to significantly reduce vibration transmission and noise pollution. In modern industrial facilities prioritizing environmental protection and employee health, the low-noise design of electric fire pump sets undoubtedly earns owners additional policy advantages. Additionally, the system emits no exhaust gases and is powered by 100% clean energy, aligning with modern building green certification standards.
10. Comprehensive after-sales service and technical support system
ZJBETTER Pump Industry has a nationwide and overseas service network, providing 24/7 after-sales support and on-site commissioning services. The engineering team can assist users with equipment selection, pipeline design optimization, and control system upgrades throughout the entire process. Additionally, through a remote diagnostic system, users can monitor equipment operation status in real-time, identify potential issues in advance, and ensure the system operates continuously and stably.
ZJBETTER electric fire pump sets, with their comprehensive advantages of high efficiency, energy savings, stable operation, easy installation, and intelligent control, are widely applied in key industrial facilities such as airports, subways, hospitals, warehouses, logistics centers, and chemical plants, serving as critical equipment for rapid response, efficient fire suppression, and safety assurance. As the trends toward smart manufacturing and green buildings accelerate, ZJBETTER will continue to leverage innovative technology and high-standard manufacturing to provide global users with superior fire pump products and solutions.
