1. System Architecture Overview: High-Reliability Dual-Pump Backup Configuration

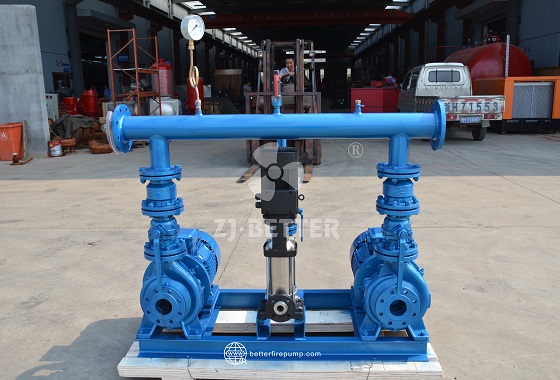

A dual-pump backup system typically consists of two main pumps, an electrical control cabinet, inlet and outlet piping, check valves, pressure sensors, and a control module. The two pumps have identical flow and head parameters and can function as both primary and backup, enabling automatic switching. When one pump is operating, the other is in standby monitoring. If a failure or abnormal pressure in the primary pump is detected, the backup pump automatically activates to maintain stable system pressure. Its compact design occupies a small footprint, and its streamlined piping layout makes installation and maintenance extremely easy.
2. Intelligent Control System: Automatic Detection and Seamless Switching
This system utilizes intelligent control technology to monitor the operating status of the pump units in real time. A PLC module within the control cabinet automatically identifies operational data such as pump load, pressure, and flow, intelligently determining when to switch between the primary and backup pumps. This process requires no human intervention, achieving true unmanned operation. The system can also be connected to the building fire monitoring platform via a remote monitoring interface, allowing operators to monitor pump unit operation at all times. Through this intelligent control, the dual-pump backup system significantly enhances the automation and safety of fire water supply.
3. Zero-Downtime Operation: Ensuring Continuous Water Supply at Critical Moments
Traditional single-pump fire protection systems often require maintenance upon malfunction, resulting in water supply interruptions. The dual-pump backup system completely eliminates this problem. Its dual-channel water supply design allows the primary and backup pumps to operate alternately or in parallel. If an anomaly is detected in the primary pump, the system instantly switches to the backup pump, maintaining water supply pressure and flow. This zero-downtime operation is particularly suitable for critical facilities such as hospitals, airports, and power plants, ensuring continuous water supply in the event of a fire and ensuring efficient operation of firefighting equipment.
4. High-Efficiency Pump: Optimized Fluid Dynamics Design
The system's pump features a highly efficient fluid dynamics design, with optimized flow components to minimize fluid resistance and energy loss. The impeller is constructed of corrosion-resistant metal, coupled with high-precision bearings and mechanical seals, ensuring long-term stability and high efficiency. The pump has undergone dynamic balancing tests for smooth operation, low noise, and minimal vibration. This high-performance design not only improves hydraulic efficiency but also extends the lifespan of the unit, thereby reducing long-term operating costs.
5. Redundant Safety Design: Multiple Protections Ensure System Stability
To ensure reliable operation of the firefighting system under extreme conditions, the dual-pump backup system utilizes a multiple-redundancy design. In addition to providing backup for the two pumps, the control system also includes power protection, motor overload protection, phase loss protection, and overpressure and underpressure alarms. In the event of any abnormality, the system immediately issues a signal and automatically switches to another unit or shuts down to prevent equipment damage or water supply interruption. The multi-layered protection design ensures stable operation in harsh environments, significantly improving reliability.
6. Energy-Saving Operation Strategy: Scientific Scheduling Reduces Energy Consumption
The dual-pump backup system was designed with energy efficiency in mind, utilizing an intelligent control system to implement alternating operation. When the fire protection system is maintaining pressure or operating at low load, only a single pump is activated. During peak hours or fire alarms, both pumps are connected in parallel to maximize output. This operating mode not only extends equipment life but also effectively reduces energy consumption. Through optimized scheduling using intelligent algorithms, the system's overall energy efficiency is approximately 15%-25% higher than that of traditional single-pump systems.
7. Wide Application Areas: Compatible with Various Firefighting Scenarios
This system is suitable for a variety of firefighting scenarios, including urban high-rise buildings, underground parking lots, industrial plants, commercial complexes, oil depots, and airports. In these locations, fire protection systems require extremely high water supply continuity, and the dual-pump backup system precisely meets this requirement. Whether replenishing the urban fire protection network or using automatic sprinkler systems, it provides a stable, high-pressure water flow, buying valuable time for firefighting.
8. Convenient Installation and Maintenance: Integrated Modular Design
To simplify construction and ongoing maintenance, the dual-pump backup system utilizes a modular design. Piping, wiring, and commissioning are complete before shipment. On-site, only the inlet and outlet pipes and power supply connections are required for immediate operation. The system's layout is rational, and key components are easily accessible for installation and replacement. The intelligent control system also records operation logs and fault history, enabling maintenance personnel to quickly locate problems. Users can choose from vertical, horizontal, or rainproof configurations to meet specific needs, providing enhanced flexibility.
9. Compliance with Fire Protection Standards: Rigorous Testing Ensures Reliable Performance
The system's design and manufacturing strictly adhere to domestic and international fire protection standards and performance testing requirements, ensuring that all indicators meet fire safety regulations. Each system undergoes rigorous hydraulic, performance, and electronic control testing before shipment to ensure reliable operation and stable water supply. The pump and control system materials meet fire, corrosion, and explosion-proof requirements, ensuring continuous operation in a variety of environments and providing a solid foundation for building fire protection systems.
10. Intelligent Linkage and Remote Monitoring: Building a Smart Fire Protection System
With the development of smart cities, fire water supply systems are also evolving towards intelligentization. The dual-pump backup system can be linked with the building's fire alarm system to enable automatic start and stop, status feedback, and remote control. Leveraging IoT technology, system data can be uploaded to the cloud in real time, allowing managers to monitor operational status from a remote monitoring center. Intelligent early warning functions can also issue maintenance alerts before equipment anomalies occur, enabling predictive maintenance and significantly improving system management efficiency and reliability.
The dual-pump backup system, with its high reliability, intelligent control, and zero downtime, has become a core solution for modern fire water supply systems. It not only solves the downtime and maintenance challenges of single-pump systems, but also, through intelligent and energy-saving design, provides continuous, safe, and efficient fire water supply for buildings and industrial sectors. Facing the increasingly stringent fire protection requirements of the future, the dual-pump backup system is undoubtedly the ideal choice for building a solid fire defense for all types of facilities.
