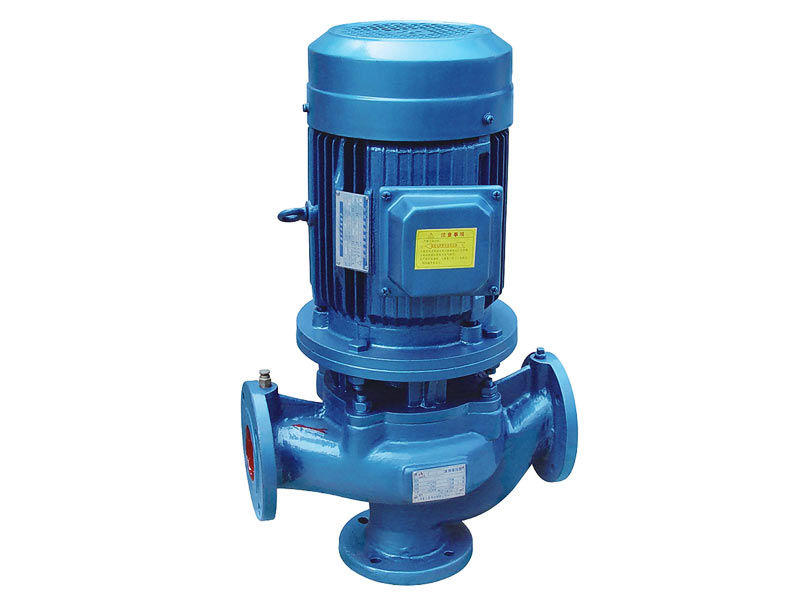

GW Series Pipeline Non-clogging Sewage Pump
Flow: 2~800m3/h
Head: 3~70m
Caliber: 25~300mm
Power: 0.37/2P~110/6P kW
Speed: 740~2900r/min
Working Pressure: 1.0MPa
If you want to get more product information please contact us!
Product Introduction of GW series pipeline non-clogging sewage pump
GW series pipeline non-clogging sewage pump, the company is based on the user's requirements and the actual installation conditions, different ways, combined with our years of practical experience, designed to optimize reasonable, with the installation of this product easy to use, the structure reasonable, the product forms, while avoiding the mechanical seal leakage due to electrical burn caused by the shortcomings.
Model explanation
100 GW P 100 – 15 – 7.5
100 — Outlet caliber (6kg flange)
GW — Non-clogging pipeline sewage pump
P — * P stainless steel
* B explosion proof
100 — Flow
15 — Head
7.5 — Motor power
GW series pipeline non-clogging sewage pump, the company is based on the user's requirements and the actual installation conditions, different ways, combined with our years of practical experience, designed to optimize reasonable, with the installation of this product easy to use, the structure reasonable, the product forms, while avoiding the mechanical seal leakage due to electrical burn caused by the shortcomings.
Model explanation
100 GW P 100 – 15 – 7.5
100 — Outlet caliber (6kg flange)
GW — Non-clogging pipeline sewage pump
P — * P stainless steel
* B explosion proof
100 — Flow
15 — Head
7.5 — Motor power
1. Application Scope
1. Stationary commercial plant for polluted wastewater discharges,
2. Residential sewage stations,
3. Urban sewage treatment plant drainage systems,
4. Air defense system pumping station,
5. Water plant's water supply facilities,
6. Hospitals, hotels sewage emissions,
7. Municipal engineering construction sites, mining facilities with machines,
8. Biogas digesters in rural areas, irrigation and other industries,
2. Using Instruction
1. Pump using ambient temperature ≤ 40 °C, humidity ≤ 95%; Altitude ≤ 1000 meters.
2. Medium temperature does not exceed 60 °C, medium and severe for the 1 ~ 1.3kg/dm3.
3. The use of cast iron which PH5 ~ 9.
4. Stainless steel material can be used generally corrosive media.
5. Use of the environment is not more than 1000 meters above sea level, more than the above conditions should be made in order to provide you with a more reliable product.
Note: The user, if particular temperature, medium, etc., please specify when ordering details of the transmission medium to the unit to provide more reliable products.
1. Stationary commercial plant for polluted wastewater discharges,
2. Residential sewage stations,
3. Urban sewage treatment plant drainage systems,
4. Air defense system pumping station,
5. Water plant's water supply facilities,
6. Hospitals, hotels sewage emissions,
7. Municipal engineering construction sites, mining facilities with machines,
8. Biogas digesters in rural areas, irrigation and other industries,
2. Using Instruction
1. Pump using ambient temperature ≤ 40 °C, humidity ≤ 95%; Altitude ≤ 1000 meters.
2. Medium temperature does not exceed 60 °C, medium and severe for the 1 ~ 1.3kg/dm3.
3. The use of cast iron which PH5 ~ 9.
4. Stainless steel material can be used generally corrosive media.
5. Use of the environment is not more than 1000 meters above sea level, more than the above conditions should be made in order to provide you with a more reliable product.
Note: The user, if particular temperature, medium, etc., please specify when ordering details of the transmission medium to the unit to provide more reliable products.

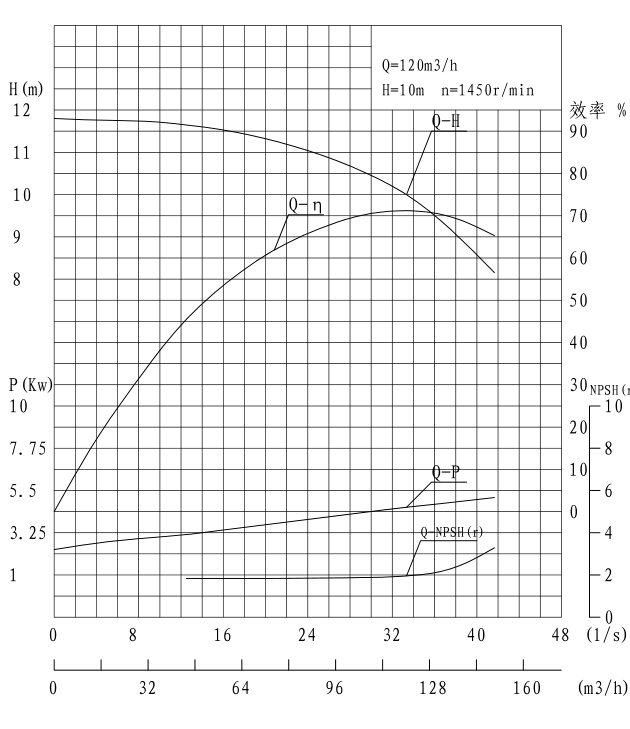

1. Performance curve
2. Specifications
2. Specifications
| Model | Flow m³/h | Head m | Power kw | Speed r/min | Caliber mm |
| 25GW2-10-0.55 | 2 | 10 | 0.55 | 2900 | 25 |
| 25GW10-15-1.5 | 10 | 15 | 1.5 | 2900 | 25 |
| 32GW8-12-0.75 | 8 | 12 | 0.75 | 2900 | 32 |
| 32GW10-20-2.2 | 10 | 20 | 2.2 | 2900 | 32 |
| 40GW10-12-1.1 | 10 | 12 | 1.1 | 2900 | 40 |
| 40GW12-15-1.5 | 12 | 15 | 1.5 | 2900 | 40 |
| 50GW15-30-3 | 15 | 30 | 3 | 2900 | 50 |
| 50GW40-15-4 | 40 | 15 | 4 | 2900 | 50 |
| 50GW25-25-5.5 | 25 | 25 | 5.5 | 2900 | 50 |
| 50GW30-40-7.5 | 30 | 40 | 7.5 | 2900 | 50 |
| 65GW30-30-5.5 | 30 | 30 | 5.5 | 2900 | 65 |
| 65GW20-55-11 | 20 | 55 | 11 | 2900 | 65 |
| 65GW25-60-15 | 25 | 60 | 15 | 2900 | 65 |
| 65GW25-70-18.5 | 25 | 70 | 18.5 | 2900 | 65 |
| 80GW30-20-4 | 30 | 20 | 4 | 2900 | 80 |
| 80GW30-40-7.5 | 30 | 40 | 7.5 | 2900 | 80 |
| 80GW50-30-11 | 50 | 30 | 11 | 2900 | 80 |
| 80GW50-50-15 | 50 | 50 | 15 | 2900 | 80 |
| 100GW100-10-5.5 | 100 | 10 | 5.5 | 1450/2900 | 100 |
| 100GW100-30-15 | 100 | 30 | 15 | 1450/2900 | 100 |
| 100GW120-40-30 | 120 | 40 | 30 | 1450 | 100 |
| 100GW120-70-75 | 120 | 70 | 75 | 1450 | 100 |
| 150GW150-12-11 | 150 | 12 | 11 | 1450 | 150 |
| 150GW200-20-22 | 200 | 20 | 22 | 1450 | 150 |
| 150GW180-30-37 | 180 | 30 | 37 | 1450 | 150 |
| 150GW200-40-45 | 200 | 40 | 45 | 1450 | 150 |
| 200GW300-4-7.5 | 300 | 4 | 7.5 | 1450 | 200 |
| 200GW200-35-37 | 200 | 35 | 37 | 1450 | 200 |
| 200GW400-25-55 | 400 | 25 | 55 | 1450 | 200 |
| 200GW200-60-75 | 200 | 60 | 75 | 1450 | 200 |
| more specification pls feel free to contact us | |||||
