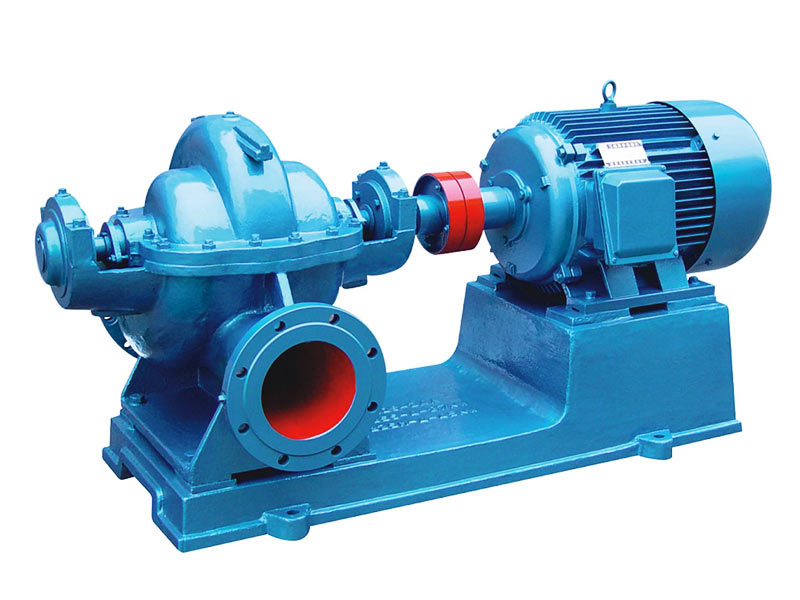

S Double Suction Split Case Pump

Flow: 130~5500m3 /h

Head: 10~160m

Caliber: 150~800mm

Power: 18.5~1600kW

Speed: 585~2950r/min

Working Pressure: 1.6MPa

If you want to get more product information please contact us!

  • Product Overview

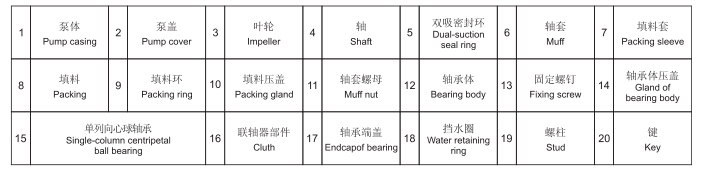

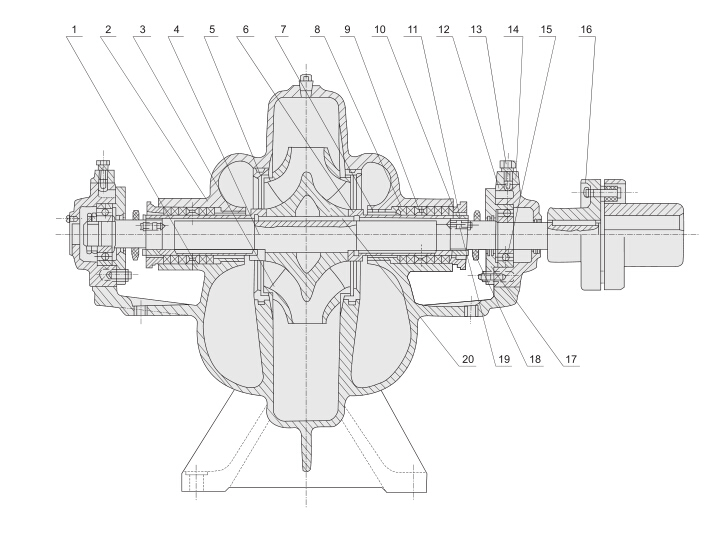

  • Product Structure
  • Application
  • Technical Data
Product Introduction of S Double suction Split Case Pump
Model S pump is a single-stage double-suction horizontal split centrifugal pump and used to transport pure water and the liquid of both physical and chemical nature similar to those of water, the maximum temperature of which must not be over 80°C, suitable for water supply and drainage in factories, mines, cities and electric stations, waterlogged land drainage and irrigation of farming land and carious hydraulics projects.

Model Meaning
150 S 78 A
150 — inlet caliber
S — double suction centrifugal pump
78 — Head
A —impeller outside diameter through first cutting


1. Application Scope
Use in factory, mine and power station supply and drainage, farmland irrigation and other water conservancy projects.

2. Using Instruction
The temperature of transported liquid shall not exceed 80

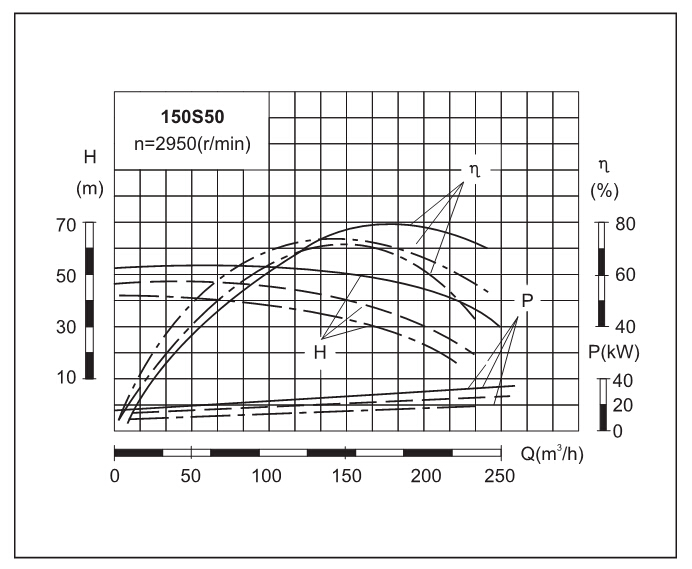

1. Performance curve


2. Specifications
Model Flow(m3/h) Head(mpa) Power(kw) Speed (rpm) Caliber (mm)
100S-90 80 90 37 2900 100
150S-50B 133 36 22 2900 150
150S-78 160 78 55 2900 150
150S-100 180 97 75 2900 150
200S-42 280 42 45 2900 200
200S-63 280 63 75 2900 200
200S-95 280 95 132 2900 200
250S-14A 432 11 18.5 1450 250
250S-24A 414 20 37 1450 250
250S-39A 468 30 55 1450 250
250S-65 485 65 132 1450 250
300S-12A 675 9.7 30 1450 300
300S-19 790 19 55 1450 300
300S-32 790 32 90 1450 300
300S-58 790 58 200 1450 300
300S-90 790 90 315 1450 300
350S-16A 1044 13 55 1450 350
350S-26 1260 26 132 1450 350
350S-44A 1116 36 160 1450 350
350S-75B 1080 55 220 1450 350
350S-125 1260 125 630 1450 350
500S-13 2020 13 110 970 500
500S-22 2020 22 185 970 500
500S-35 2020 35 280 970 500
600S-32 3170 32 355 970 600
more specifications pls feel free to contact us.
