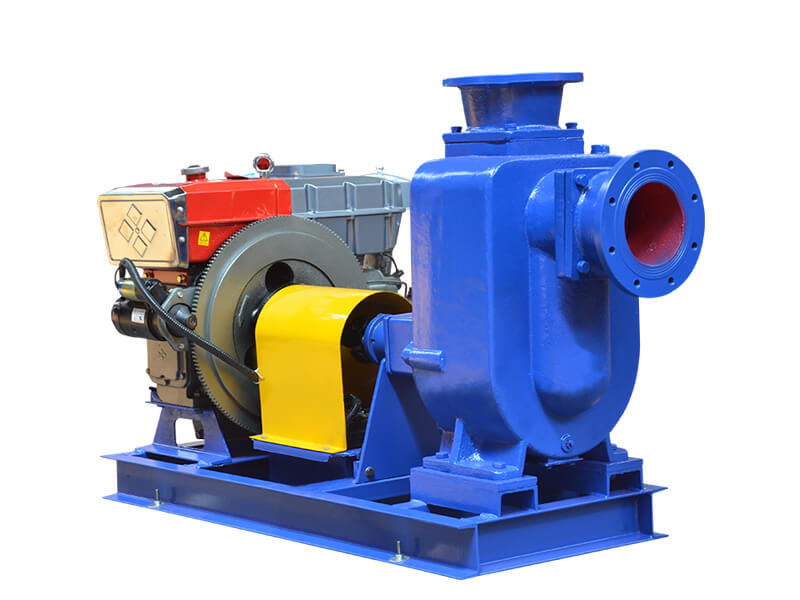

Diesel Self Priming Pump
Flow: 14-2700 gpm
Head: 12-80 meter
Suction: 5-7 meter
Caliber: 1-12 inch
Speed: 1450/2900 rpm
Power: 1-132 kw
If you want to get more product information please contact us!
Diesel Self Priming
1. ZX self priming pump diesel engine driven works for water or medium similar to water that viscosity below 5°E and temperature below 80°C(176°F).2. It is compact, easy to operate, running stable, easy to maintain, efficient, with long service life and large suction capacity.
3. The water pump with self priming ablity could work without bottom valve in channel but with the quantitative lead liquid that kept in pump before operation.
4. Pump may equipped with diesel engine for outdoor and wild water supply and drainage.
5. Widely used in city environmental protection , construction, fire fighting, chemical industry, pharmacy, dyes, dyeing, brewing, electric power, electric plating, paper-making, industrial and mineral rinse, equipment cooling and so on.
| Working Principle: | Centrifugal, Self-priming |
| Main applications: | Water |
| Driver: | Electric motor, Diesel engine |
| Power Specs: | 110/220/230V 1phase; 220/380/400/415V 3phase; 50hz/60hz |
| Max.permissible fluid temperature: | 80°C(176°F) |
| Type of connection: | Flange |
| Installation position: | Horizontal |
| Casing parts material: | Cast iron, Stainless Steel |
| Shaft seal type: | Mechanical seal |
| Free passage: | 0mm |
| Maximum drive rating: | 132KW(180HP) |
| Maximum caliber: | 300mm(12inch) |
| Maximum head: | 80m(262.4ft) |
| Maximum suction: | 6.5m(21.3ft) |
| Flow rate range: | 3.2-600m3/h(14.1-2640US.GPM) |
| Model | Caliber | Capacity | Head | Power | Speed | Suction |
| (mm) | (m3/h) | (m) | (kw) | (r/min) | (m) | |
| 25ZX3.2-20 | 25 | 3.2 | 20 | 1.1 | 2900 | 6.5 |
| 25ZX3.2-32 | 25 | 3.2 | 32 | 1.5 | 2900 | 6.5 |
| 32ZX3.2-20 | 32 | 3.2 | 20 | 1.1 | 2900 | 6.5 |
| 32ZX3.2-32 | 32 | 3.2 | 32 | 1.5 | 2900 | 6.5 |
| 32ZX3.2-50 | 32 | 3.2 | 50 | 3 | 2900 | 6.5 |
| 40ZX6.3-20 | 40 | 6.3 | 20 | 1.5 | 2900 | 6.5 |
| 40ZX6.3-32 | 40 | 6.3 | 32 | 2.2 | 2900 | 6.5 |
| 40ZX10-40 | 40 | 10 | 40 | 4 | 2900 | 6.5 |
| 40ZX6.3-50 | 40 | 6.3 | 50 | 4 | 2900 | 6.5 |
| 50ZX15-12 | 50 | 15 | 12 | 1.5 | 2900 | 6.5 |
| 50ZX18-20 | 50 | 18 | 20 | 2.2 | 2900 | 6.5 |
| 50ZX12.5-32 | 50 | 12.5 | 32 | 3 | 2900 | 6.5 |
| 50ZX12.5-40 | 50 | 12.5 | 40 | 4 | 2900 | 6.5 |
| 50ZX12.5-50 | 50 | 12.5 | 50 | 5.5 | 2900 | 6.5 |
| 50ZX20-30 | 50 | 20 | 30 | 4 | 2900 | 6.5 |
| 50ZX14-35 | 50 | 14 | 35 | 4 | 2900 | 6.5 |
| 50ZX10-40 | 50 | 10 | 40 | 4 | 2900 | 6.5 |
| 50ZX15-60 | 50 | 15 | 60 | 7.5 | 2900 | 6.5 |
| 50ZX20-75 | 50 | 20 | 75 | 11 | 2900 | 6.5 |
| 65ZX30-15 | 65 | 30 | 15 | 3 | 2900 | 6.5 |
| 65ZX25-32 | 65 | 25 | 32 | 5.5 | 2900 | 6 |
| 65ZX25-50 | 65 | 25 | 50 | 7.5 | 2900 | 6 |
| 65ZX25-70 | 65 | 25 | 70 | 15 | 2900 | 6 |
| 80ZX35-13 | 80 | 35 | 13 | 3 | 2900 | 6 |
| 80ZX43-17 | 80 | 43 | 17 | 4 | 2900 | 6 |
| 80ZX40-22 | 80 | 40 | 22 | 5.5 | 2900 | 6 |
| 80ZX50-20 | 80 | 50 | 20 | 5.5 | 2900 | 6 |
| 80ZX50-25 | 80 | 50 | 25 | 7.5 | 2900 | 6 |
| 80ZX50-32 | 80 | 50 | 32 | 7.5 | 2900 | 6 |
| 80ZX50-40 | 80 | 50 | 40 | 11 | 2900 | 6 |
| 80ZX60-55 | 80 | 60 | 55 | 18.5 | 2900 | 6 |
| 80ZX60-70 | 80 | 60 | 70 | 22 | 2900 | 6 |
| 100ZX80-20 | 100 | 80 | 20 | 11 | 2900 | 6 |
| 100ZX100-20 | 100 | 100 | 20 | 11 | 2900 | 6 |
| 100ZX100-32 | 100 | 100 | 32 | 15 | 2900 | 6 |
| 100ZX100-40 | 100 | 100 | 40 | 18.5 | 2900 | 6 |
| 100ZX100-50 | 100 | 100 | 50 | 22 | 2900 | 6 |
| 100ZX100-65 | 100 | 100 | 65 | 30 | 2900 | 6 |
| 100ZX70-75 | 100 | 70 | 75 | 30 | 2900 | 6 |
| 150ZX180-28 | 150 | 180 | 28 | 30 | 2900 | 6 |
| 150ZX170-55 | 150 | 170 | 55 | 45 | 2900 | 5 |
| 150ZX170-65 | 150 | 170 | 65 | 55 | 2900 | 5 |
| 150ZX160-80 | 150 | 160 | 80 | 55 | 2900 | 5 |
| 200ZX400-32 | 200 | 400 | 32 | 55 | 1450 | 5 |
| 200ZX280-63 | 200 | 280 | 63 | 90 | 1450 | 5 |
| 200ZX350-65 | 200 | 350 | 65 | 110 | 1450 | 5 |
| 250ZX550-32 | 250 | 550 | 32 | 75 | 1450 | 5 |
| 250ZX400-50 | 250 | 400 | 50 | 90 | 1450 | 5 |
| 250ZX450-55 | 250 | 450 | 55 | 110 | 1450 | 5 |
| 300ZX600-32 | 300 | 600 | 32 | 90 | 1450 | 5 |
| 300ZX500-50 | 300 | 500 | 50 | 110 | 1450 | 5 |
| 300ZX550-55 | 300 | 550 | 55 | 132 | 1450 | 5 |
A self-priming pump is able to overcome the problem of air binding by mixing air with water. After it gets rid of the air, the pump will continue to move water like a standard centrifugal pump.It is important to note that self-priming pumps can’t operate without water.Self-priming pumps can handle a variety of fluids and they do well with slurries, corrosive fluids, and solids.Solids handling is one of its most important advantages, as some self-priming pumps can handle solids up to 3 inches.Another advantage, when compared to a submersible pump, is its ability to continue pumping fluid while pump is still situated out of the pit.
