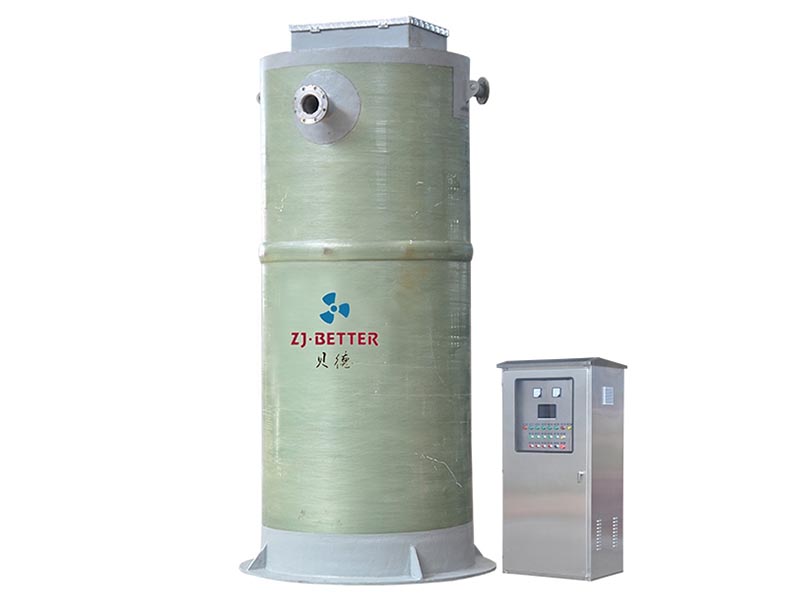

Sewage pumping station

Flow: 48-15860GPM

Power: 0.37~160KW

Pump NO.: 1~4piece

Environment Temperature: -40°C~40°C

Medium Temperature: -5°C~70°C

PH: 4~10

If you want to get more product information please contact us!

  • Product Overview
  • Product Structure
  • Application
  • Technical Data
PPS integrated prefabricated pumping station is to enhance the sewage, rainwater, drinking water, wastewater and other equipment to enhance the drainage, the factory focus on design, manufacture, assembly and transported to the site to install a new generation of environmentally friendly turnkey pumping station.

Sewage pump station series products have short construction period, easy installation, small size, high efficiency, intelligent network and other modern product features. Compared with the traditional pumping station construction projects less investment can be reduced by more than half. Product quality is very reliable.


 sewage pumping station structure
Application Scope
1.Collecting and transporting sewage from living or rural communities
2.Sewage collection and transportation in urban sewage treatment plants
3.Collection and transportation of rainwater in urban low-lying areas
4.Construction and Reconstruction of Municipal Sewage Network
5.Transformation and expansion of old pumping station
6.Water circulation in lakes
7.Other occasions

Working condition
1. Ambient temperature should be -40 degrees C ~40
2. The relative humidity should be 25%~85%, no water.
3. Temperature should be -5 degrees C ~70 C, pH value should be 4~10
4. 380V (+ 10%) 3 phase five wire system 50HZ (+ 5%)
5. The maximum vibration acceleration of the 0.5g vibration frequency 10HZ-50HZ should not exceed 5m/s2

Weight 286-9646KG
pump number 2-4pieces
Model PPS08(40)*22(122)/0.39(128)-2
Material HT200
Effective volume 0.4-128.6m3
Start stop times 7tims/h
Height of liquid level 0.15-10.23m

Model Pump flow(m3/h) Effective volume (m3) Glass fiber reinforced
plastic diameter (m)
Glass fiber reinforced
plastic level height (m)
Glass fiber reinforced
plastic height (m)
Glass fiber reinforced
plastic weight(kg)
QJB0.85/8-260/3-740/S 259 0.4 0.8 0.15 2.2 231
QJB1.5/6-260/3-980/S 360 0.5 0.8 0.21 2.2 231
QJB2.2/8-320/3-740/S 518 0.8 0.8 0.31 2.3 240
QJB4/6-320/3-960/S 605 0.9 0.8 0.36 2.4 248
QJB1.5/8-400/3-740/S 691 1.0 0.8 0.41 2.4 248
QJB2.5/8-400/3-740/S 864 1.3 0.8 0.51 2.5 254
QJB3/8-400/3-740/S 1296 1.9 0.8 0.77 2.8 278
QJB4/6-400/3-980/S 1728 2.6 0.8 1.02 3.0 295
QJB4/12-620/3-480/S 2160 3.2 1 1.02 3.0 386
QJB5/12-620/3-480/S 2402 3.6 1 1.14 3.1 396
QJB7.5/12-620/3-480/S 3024 4.5 1.4 1.02 3.0 531
QJB10/12-620/3-480/S 3456 5.1 1.4 1.17 3.2 556
MORE SPECIFICATIONS PLEASE CONTACT US.
