Booster Pump Set Domestic

Flow: max. 110 gpm

Head: 7.25-160 psi

Power: 0.37-7.5kw

Working pressure: 1.6 mpa

Suction pressure: 0.6 mpa

Material: SS 304

If you want to get more product information please contact us!

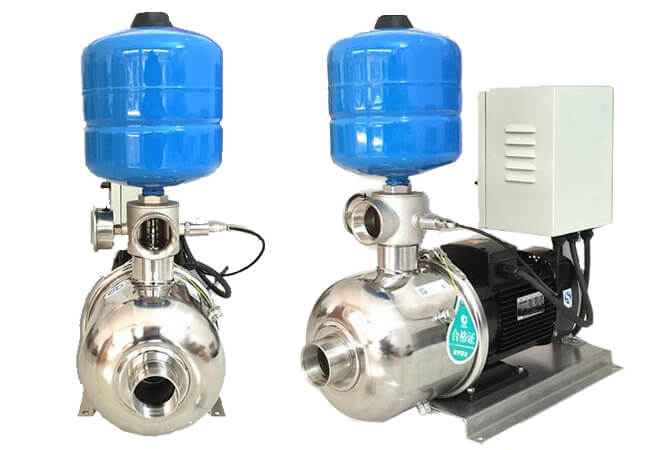

  • Product Overview
  • Product structure
  • Application

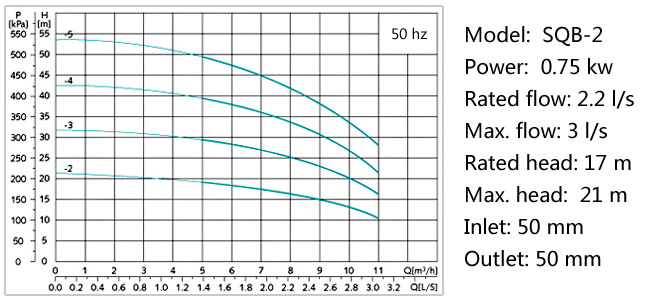

  • Technical Data

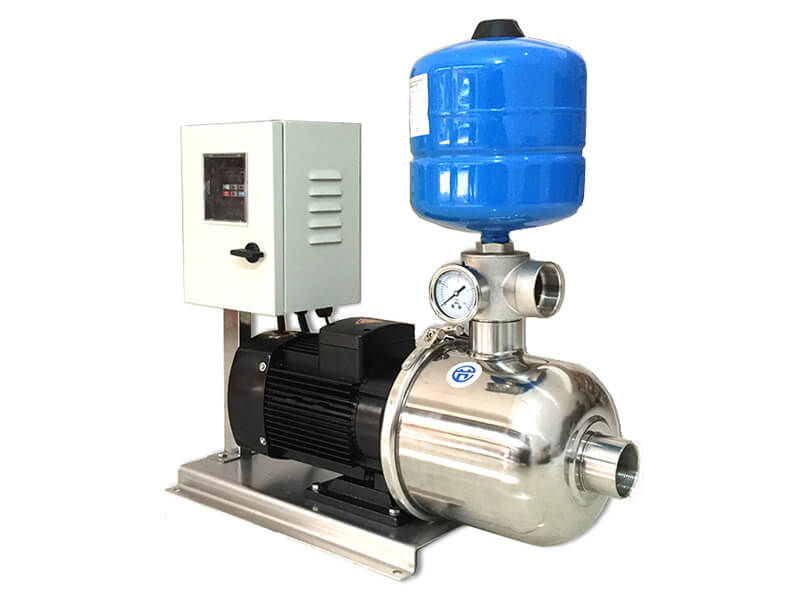

Booster Pump Set Domestic


Description
SQB Automatic Frequency Conversion Booster Pump Set is composed of newest high performance PID frequency conversion control cabinet, one pump or more than 2 pumps. It is the top technical water boosting equipment, which can automatically adjust to satisfy the requirement of constant pressure, variable water demand.
The pressure of water supply net can be kept constant water pressure. The whole water supply system can run effectively energy saving and perfect status.

Advantages
1. SS 304 material: durable and clean
2. Simple and compact structure: easy maintenance
3. YE 3 motor: high performance, high efficiency and eco-friendly
4. PID frequency conversion control cabinet: digital display for easy use
5. Automatically keep for constant pressure, save energy and protect the pump

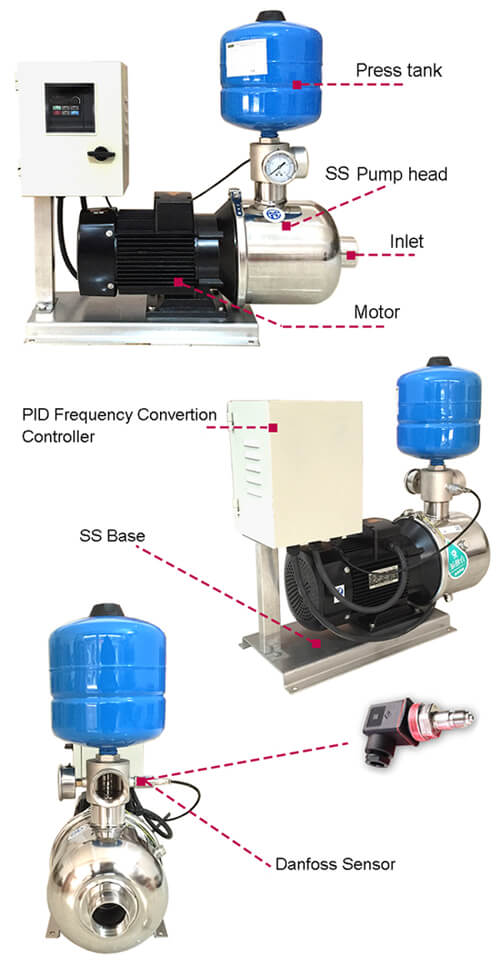

Components:

Vertical/horizontal stainless steel multistage pump
Frequency converter and pressure sensor
A series pipeline, valve and base

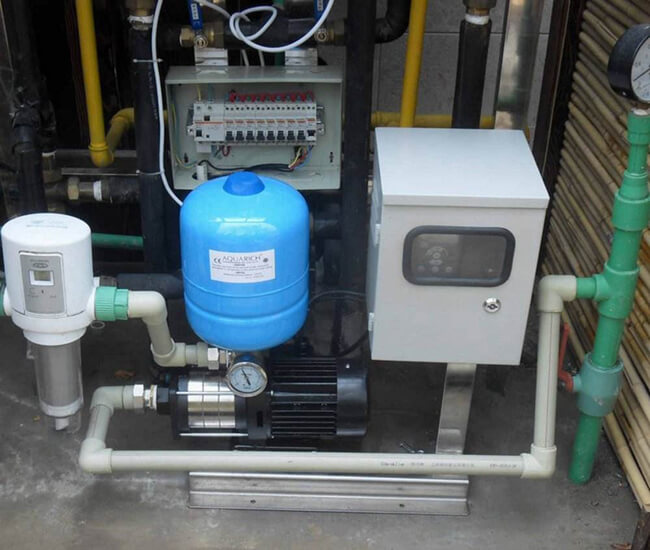

 Application

1.Used for water plant and booster pump station
2.Used for water supply of residential area, hotel, restaurant and big public building
3.Used for all kinds of factory
4.Used for fire fighting of residential area, hotel, restaurant and big public building
5.Used for factory constant pressure ,cooling water and circulation water
6.Used for hot water supply, air condition and so on
7.Used for sewage pump station,sewage handle and so on
8.Used for agricultural irrigation,greenland irrigation, landscape and fountain



Item

Constant pressure water supply system

Model

SQB series

Pump material

Stainless steel

Size

Light , small

Mode

Vertical or horizontal

Drive

Variable frequency driven

Pressure

Constant

Impeller

Close impeller

Seal

Mechanical seal

Speed

2900r/min

Theory

Centrifugal pump

Character

High pressure, multistage

Usage

Building , hotel ,hospital or domestic booster

Power

Electric

Standard or Non

Standard

Shaft

Stainless steel

Capacity

110 gpm

Head

Max 110 m

Power

0.37-7.5kw

Warranty

12 months

Certificate

ISO9001:2008

ODM/OEM

Acceptable

Valves

Butterfly valves, check valve

Pipe material

Stainless steel or carbon steel

Gauge

Pressure gauge

Sensor

Pressure sensor(1.0 or 1.6mpa)

Pressure tank

yes

Pump quantity

1-4 sets
